Checking the Vacuum Advance Curve

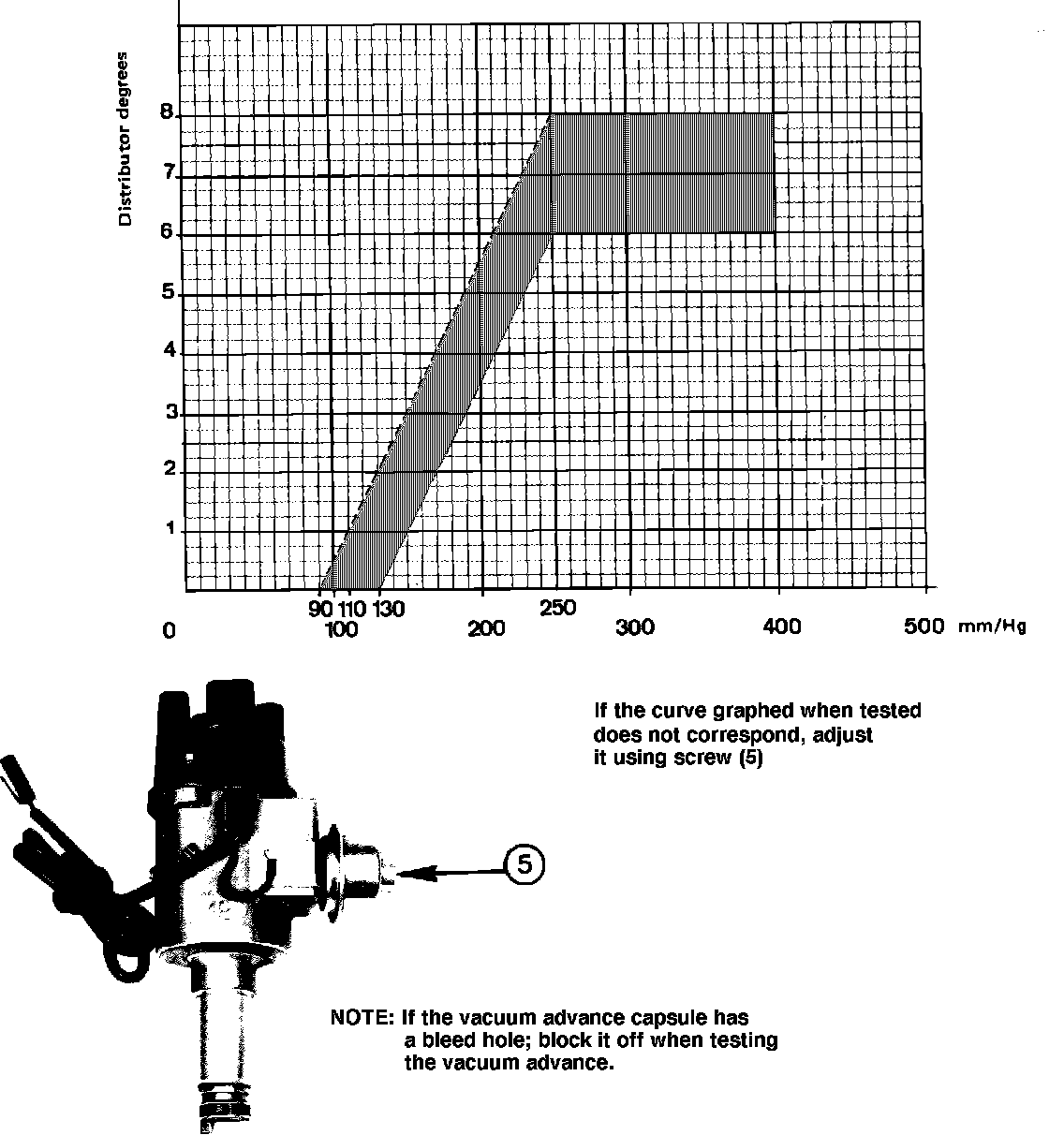

Fig. 10 Advance Curve:
1.
Turn the test bench on.
2.
Turn the
distributor at 500 rpm.
3.
Adjust the vacuum as shown in
Fig 10, and chart the degree of advance obtained.
4.
If the curve graphed when tested does not correspond to the theoretical curve, adjust it using the screw accessible through the center of the advance unit,
Fig 10.
