Heater Core: Service and Repair

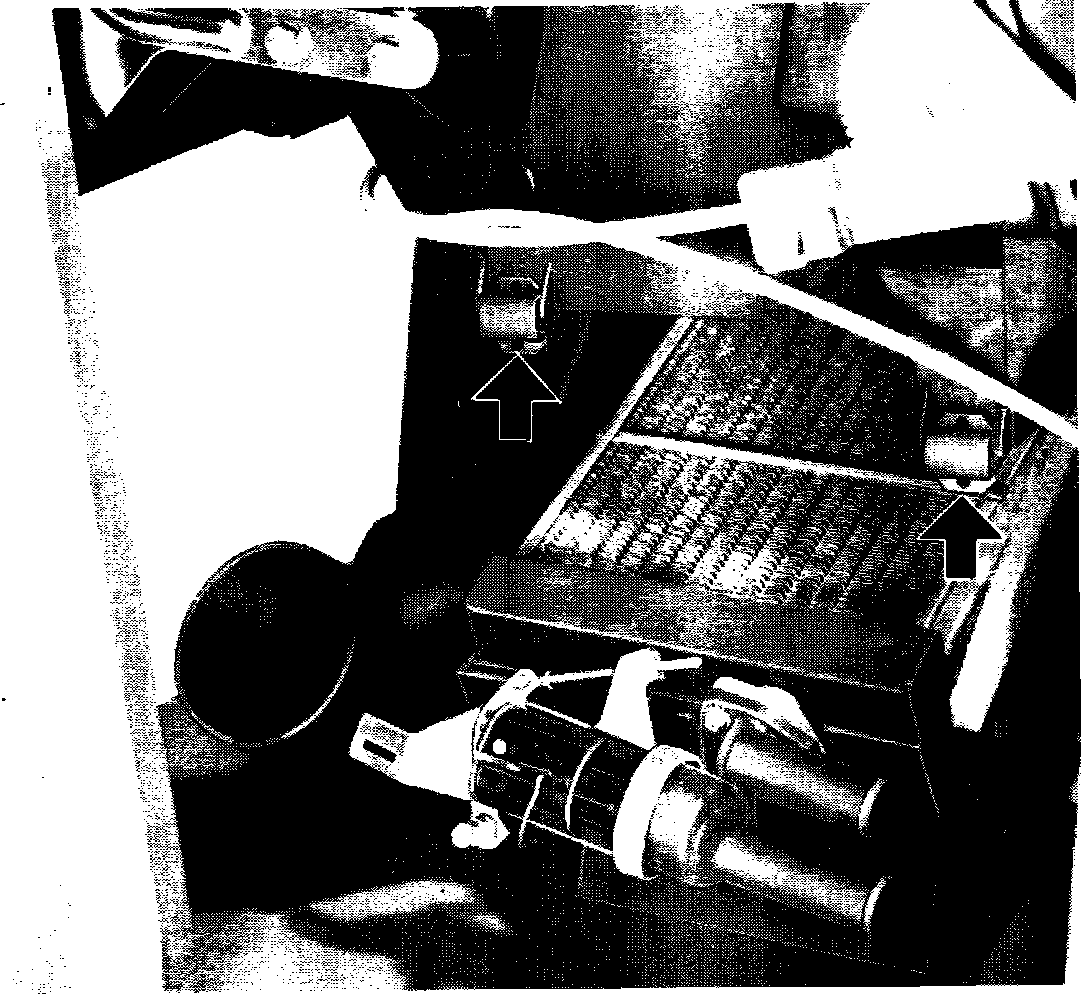

Fig. 5 Removing heater core.:
1.
Drain
cooling system.
2.
Remove glove compartment from under dashboard.
3.
Remove screws from water valve control and heater air door.
4.
Pull back carpeting and remove air duct to rear seats on right side.
5.
Remove clips and
heater core,
Fig. 5. 6.
Reverse procedure to install taking care that rubber seals are positioned properly.
