Steering - Camber Alignment Specification Update

87peugeot01
BULLETIN NO. 240 ( 6)


DATE: June, 1987 (02)
SUBJECT: FRONT CAMBER SPECIFICATION REVISION

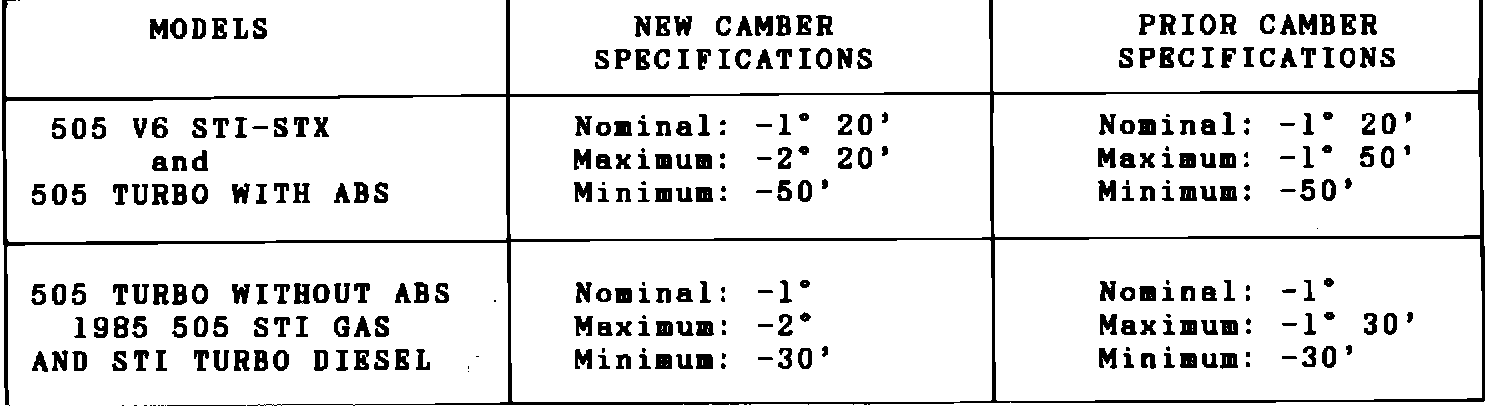

The negative tolerance specifications for front camber have been revised as follows:

Revise your documentation library (Workshop Manuals, Specification Cards, etc.) with these new revised figures.
