Brake Light Switch: Service and Repair

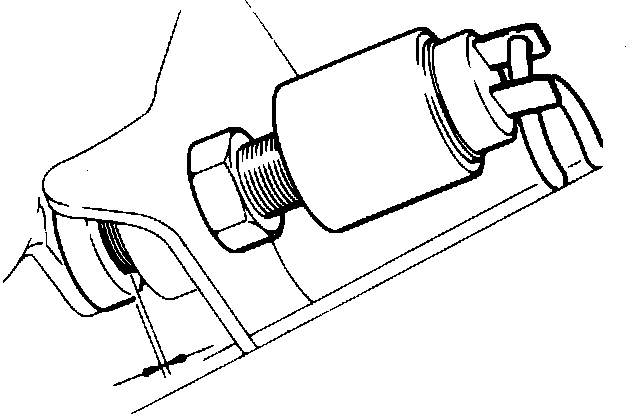

Adjusting Stoplamp Switch Clearance:

The stop light switch also serves as a brake pedal stopper and is located under the instrument panel, behind the brake pedal. Disconnect the wire, then remove retaining nut from bracket and the switch. Reverse procedure to install. Ensure brake pedal height is correct, then adjust switch to obtain a clearance of .02 to .04 inch between switch housing and pedal stopper with pedal released.
