Glow Plug Relay: Testing and Inspection

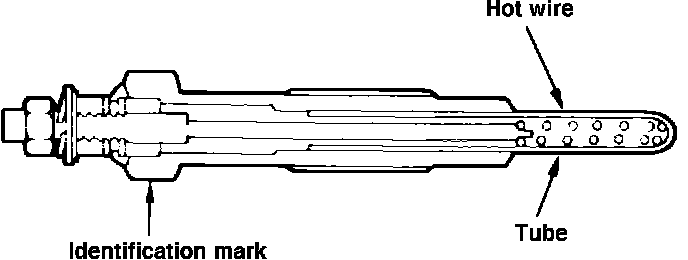

Fig. 34 Quick Glow System glow plug:





GLOW PLUG

Check resistance between glow plug terminal and body, resistance should be 0.1 ohm at 68°F.

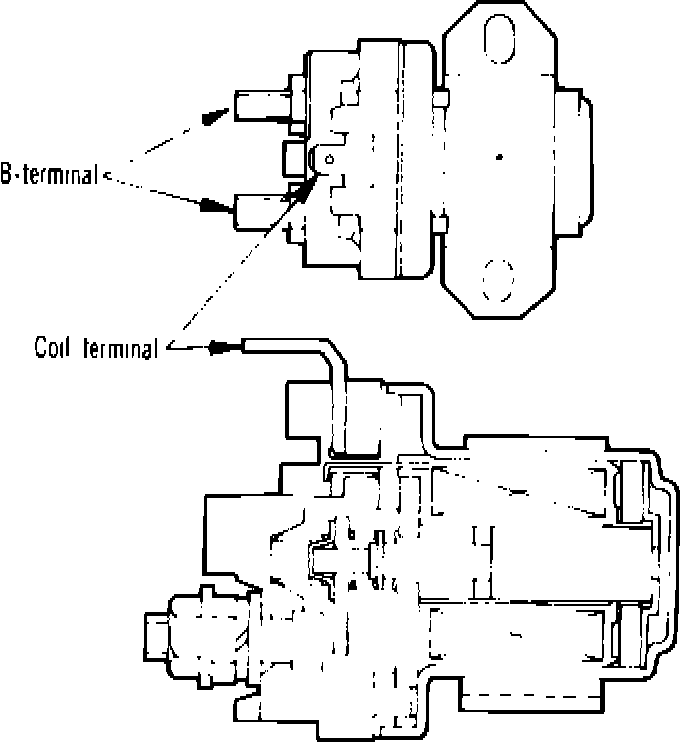

Fig. 35 Glow plug relay terminal identification:





GLOW PLUG RELAY

Connect 6 volt power source to relay coil terminal and check for continuity between relay B terminals. Continuity should exist, if not, replace relay.

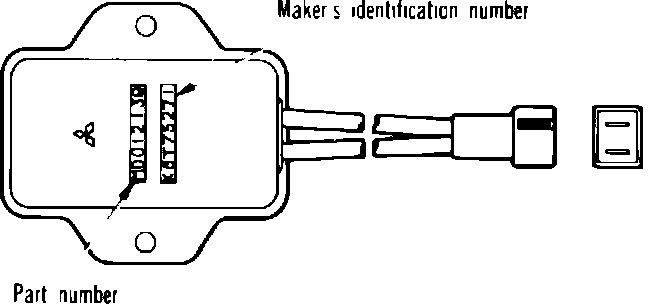

Fig. 36 Quick Glow System dropping resistor:





DROPPING RESISTOR

Connect ohmmeter between dropping resistor terminals and note reading. Resistance should be 130M-ohms.
