No Start/Fuel Test

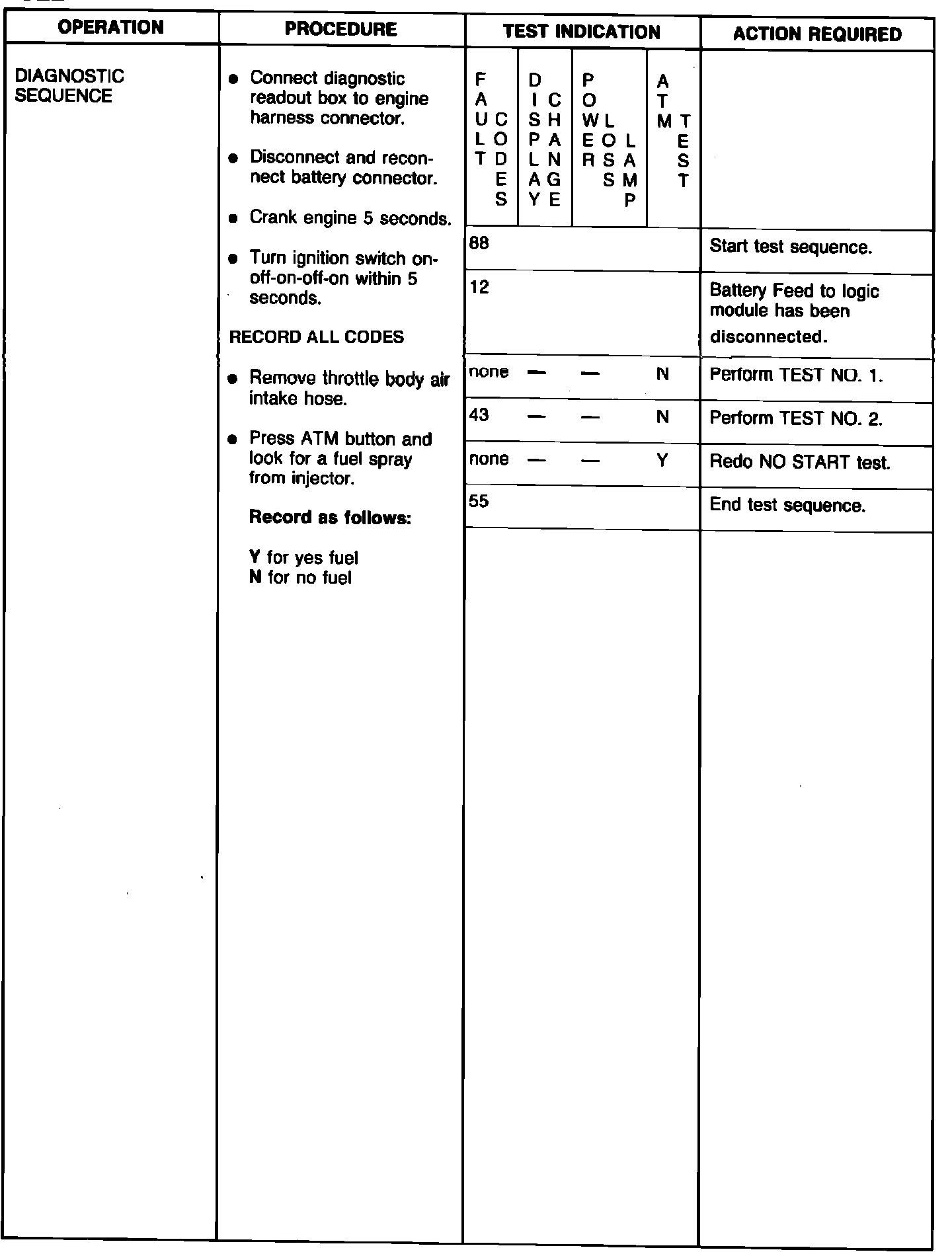

Diagnostic Sequence:

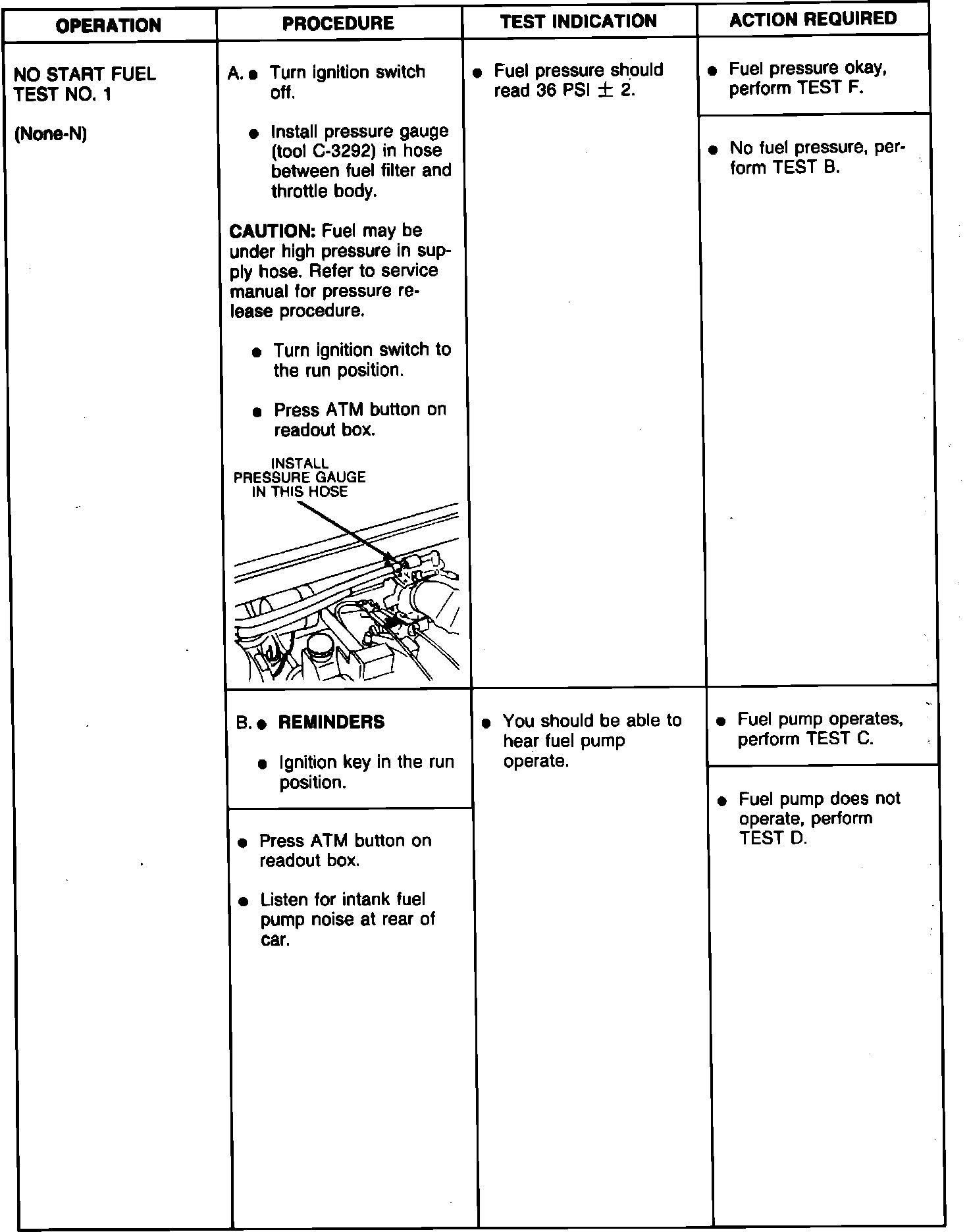

Test 1-Step A & B:

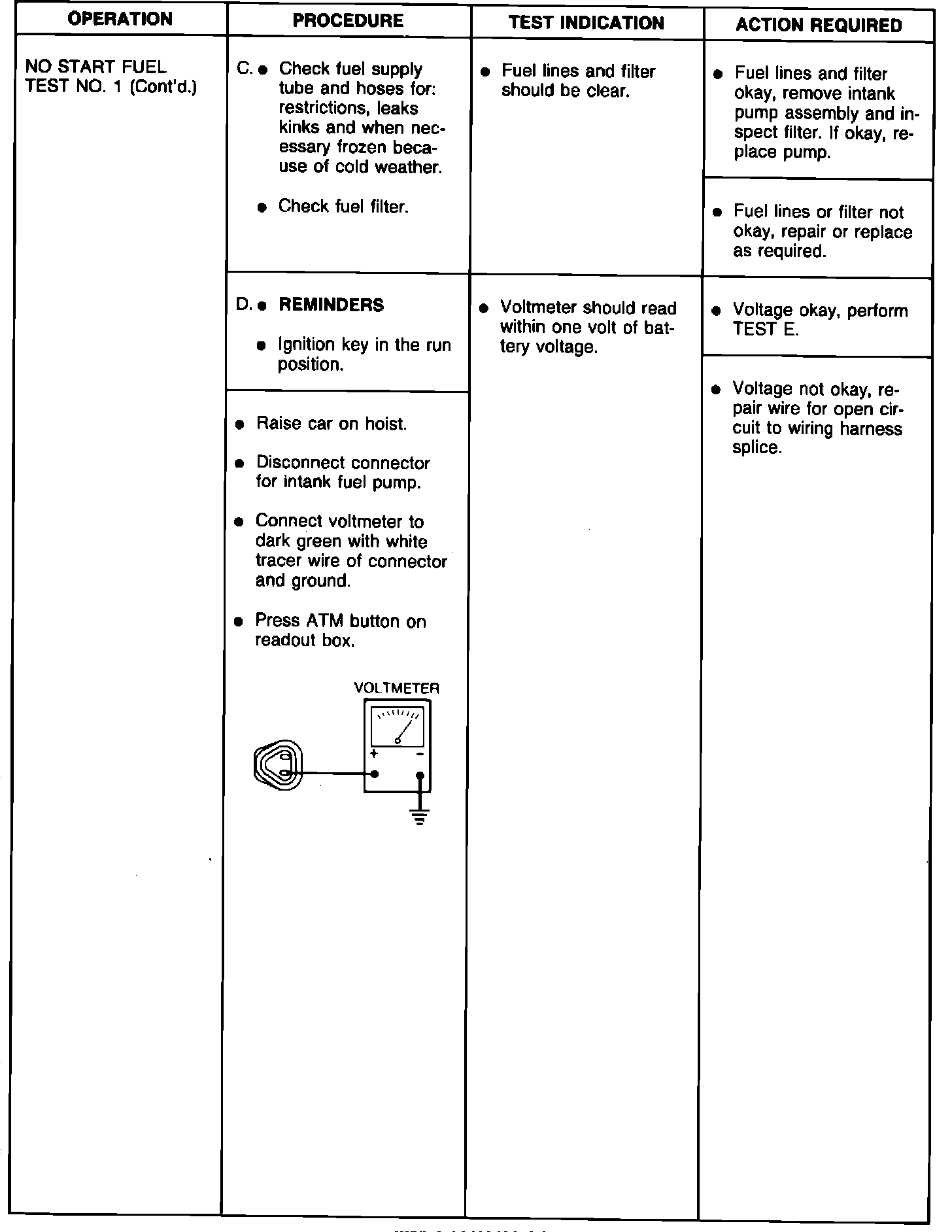

Test 1-Step C & D:

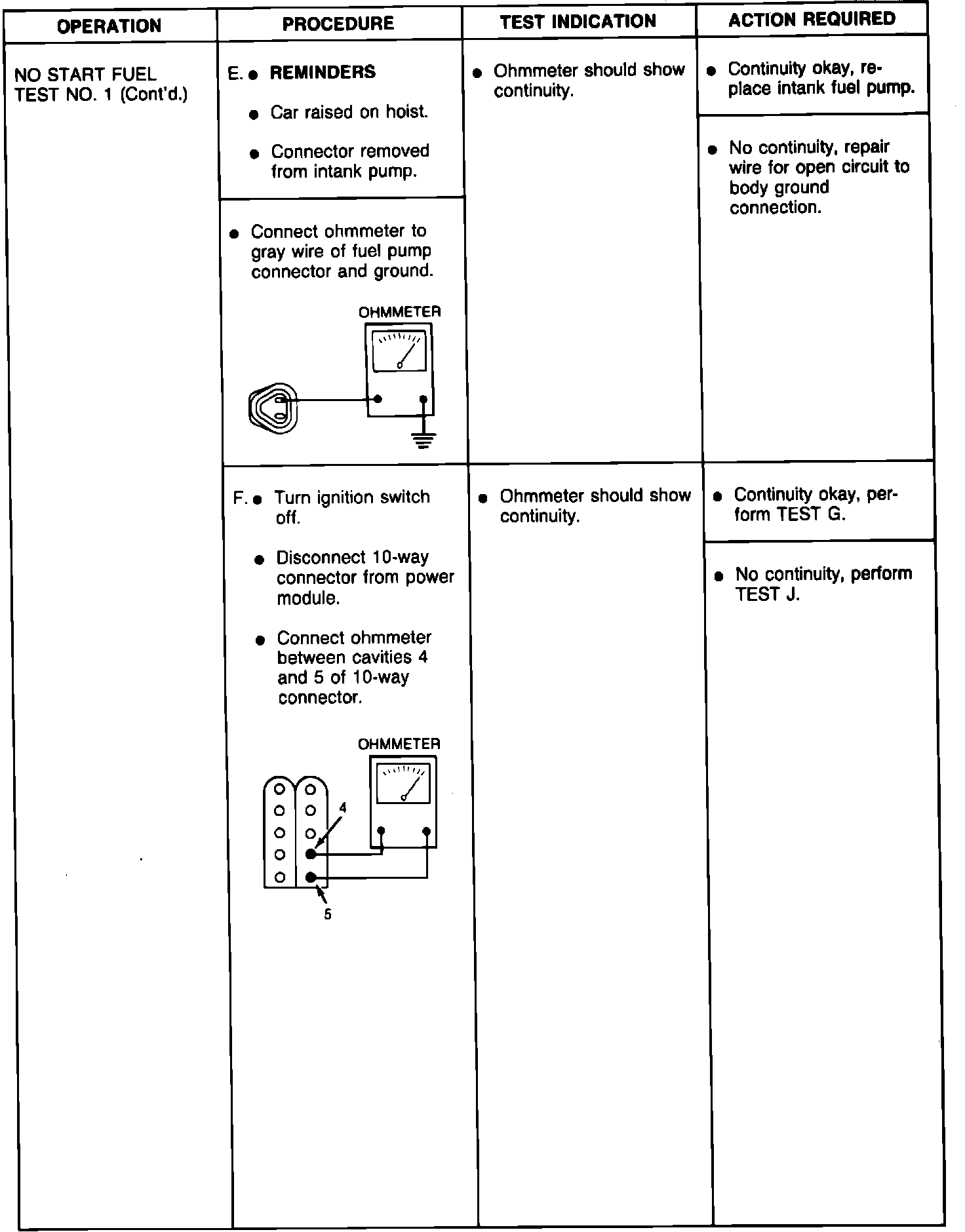

Test 1-Step E & F:

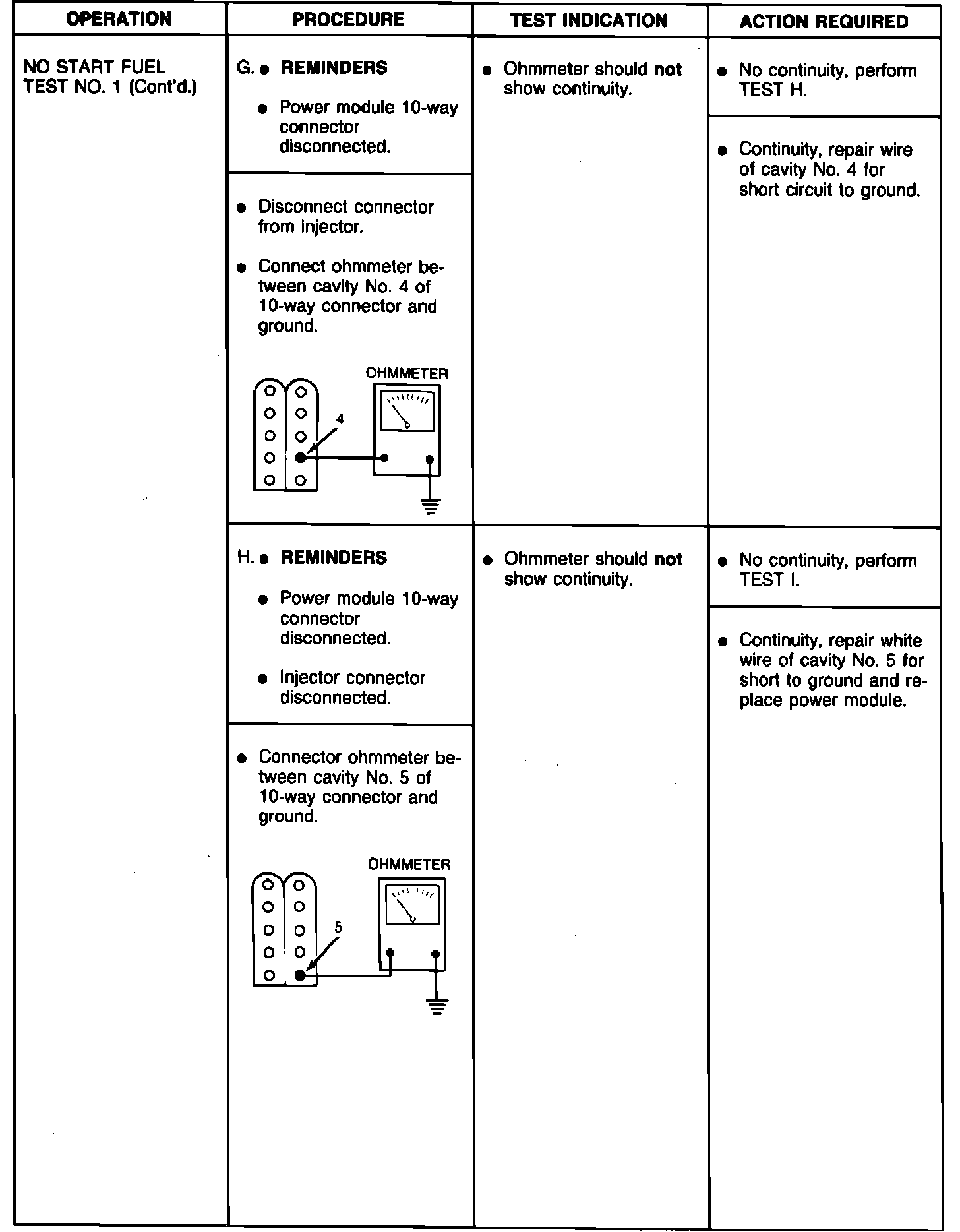

Test 1-Step G & H:

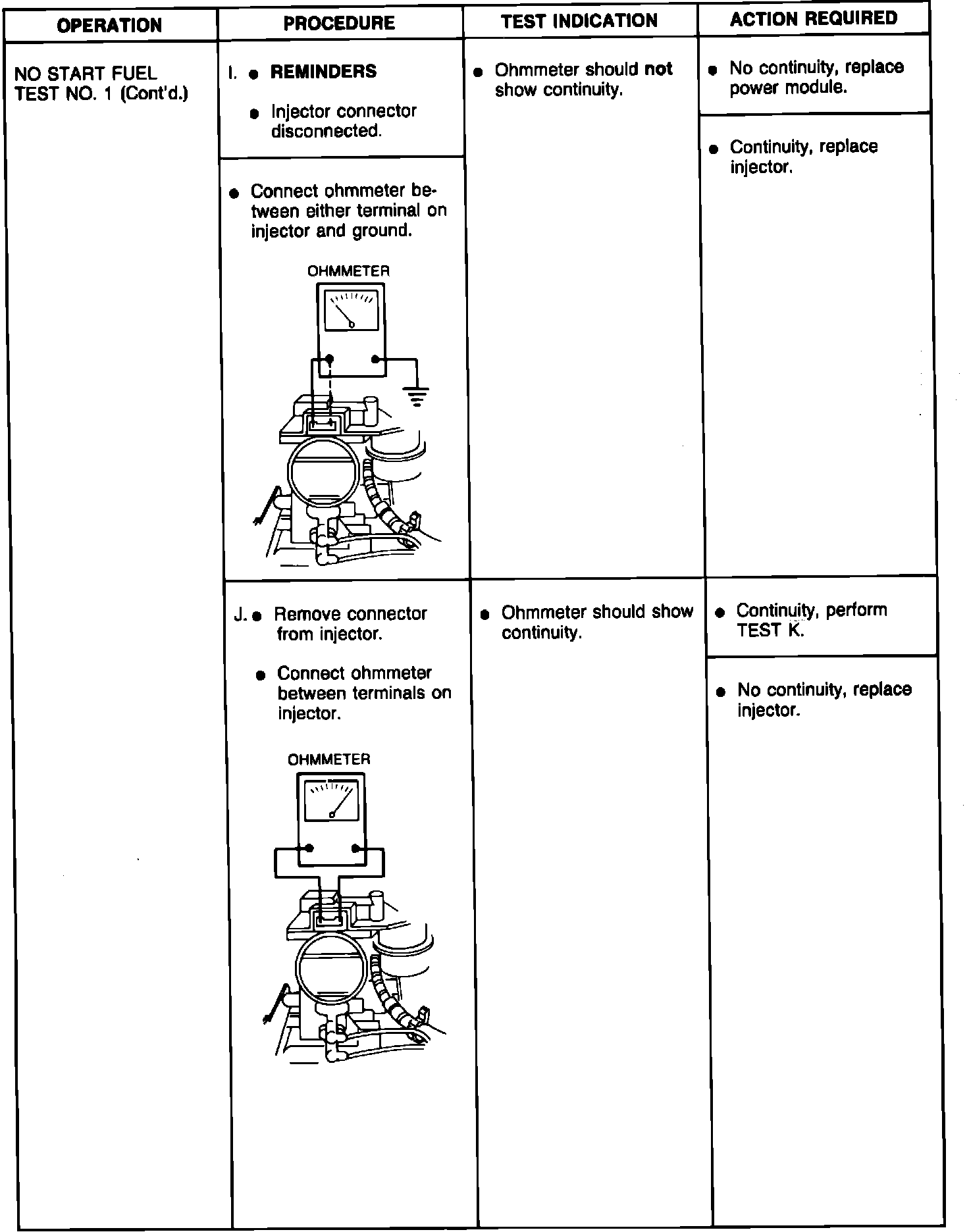

Test 1-Step I & J:

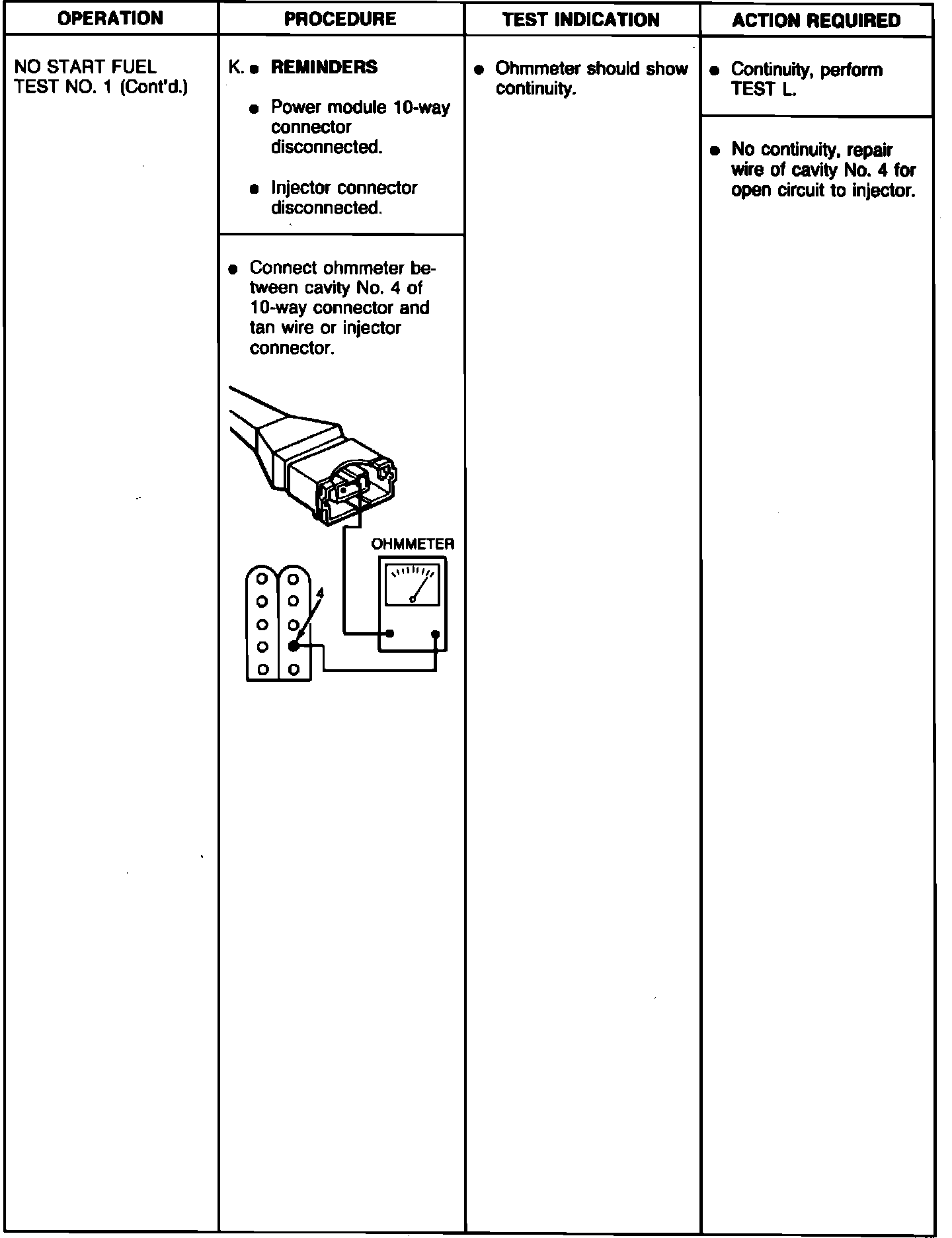

Test 1-Step K:

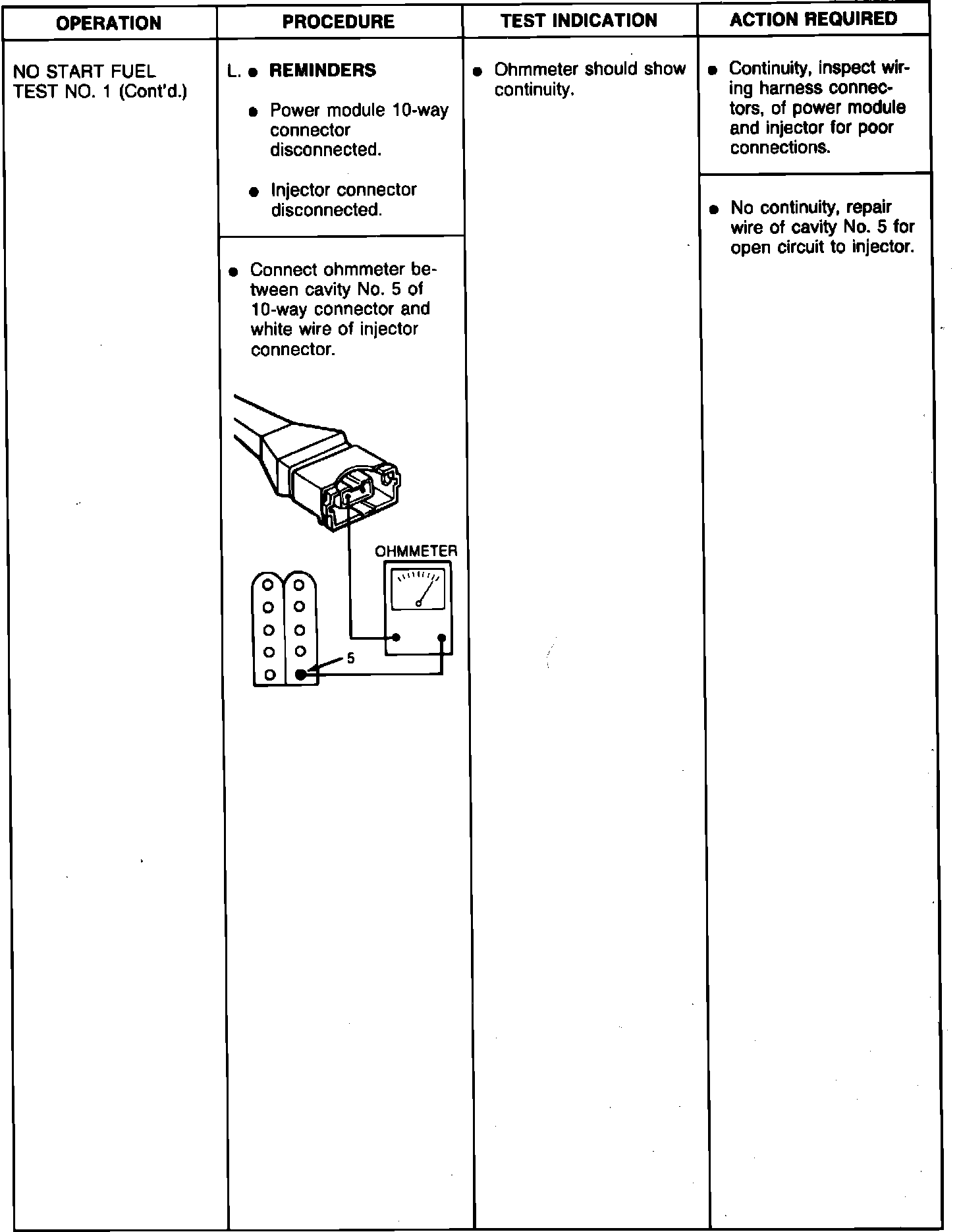

Test 1-Step L:

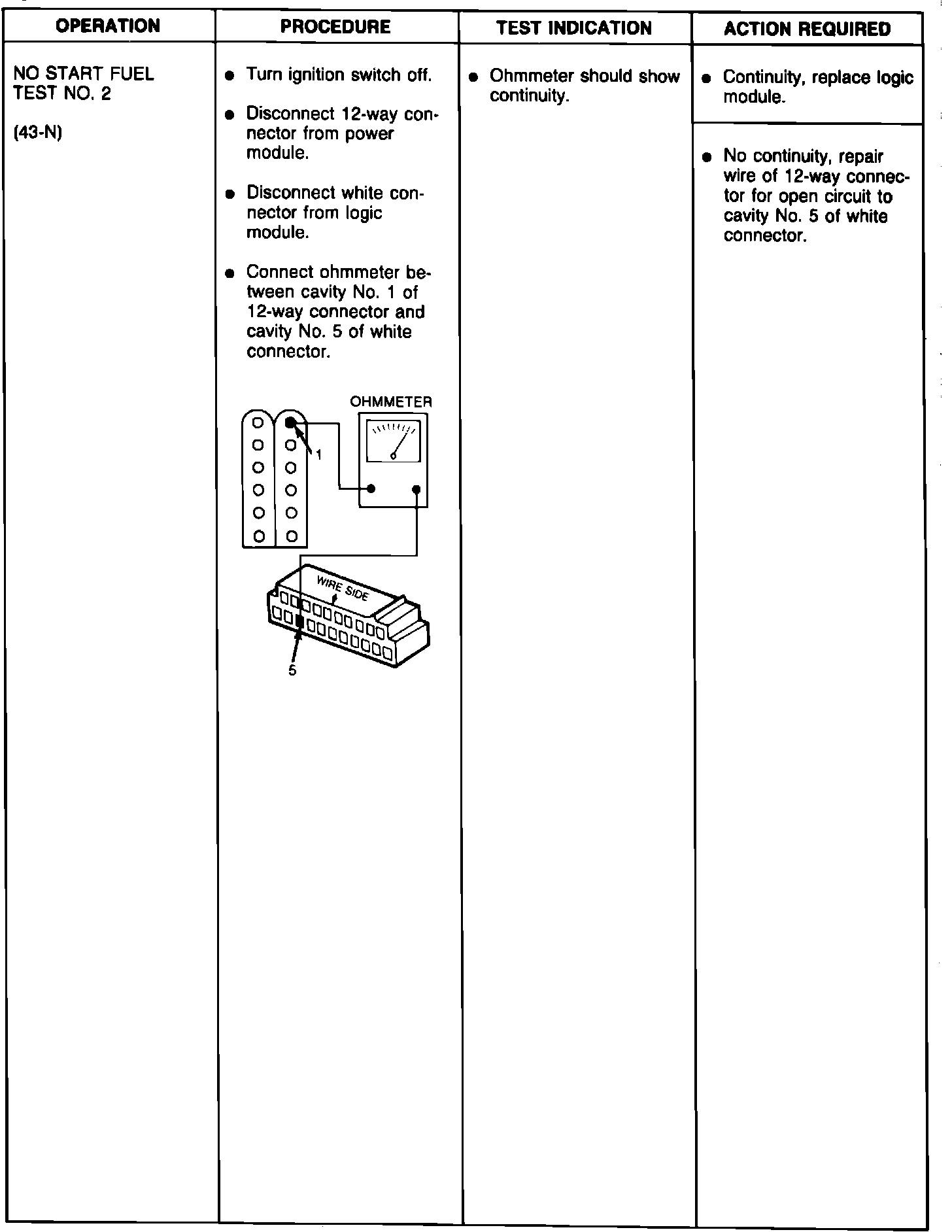

Test 2:

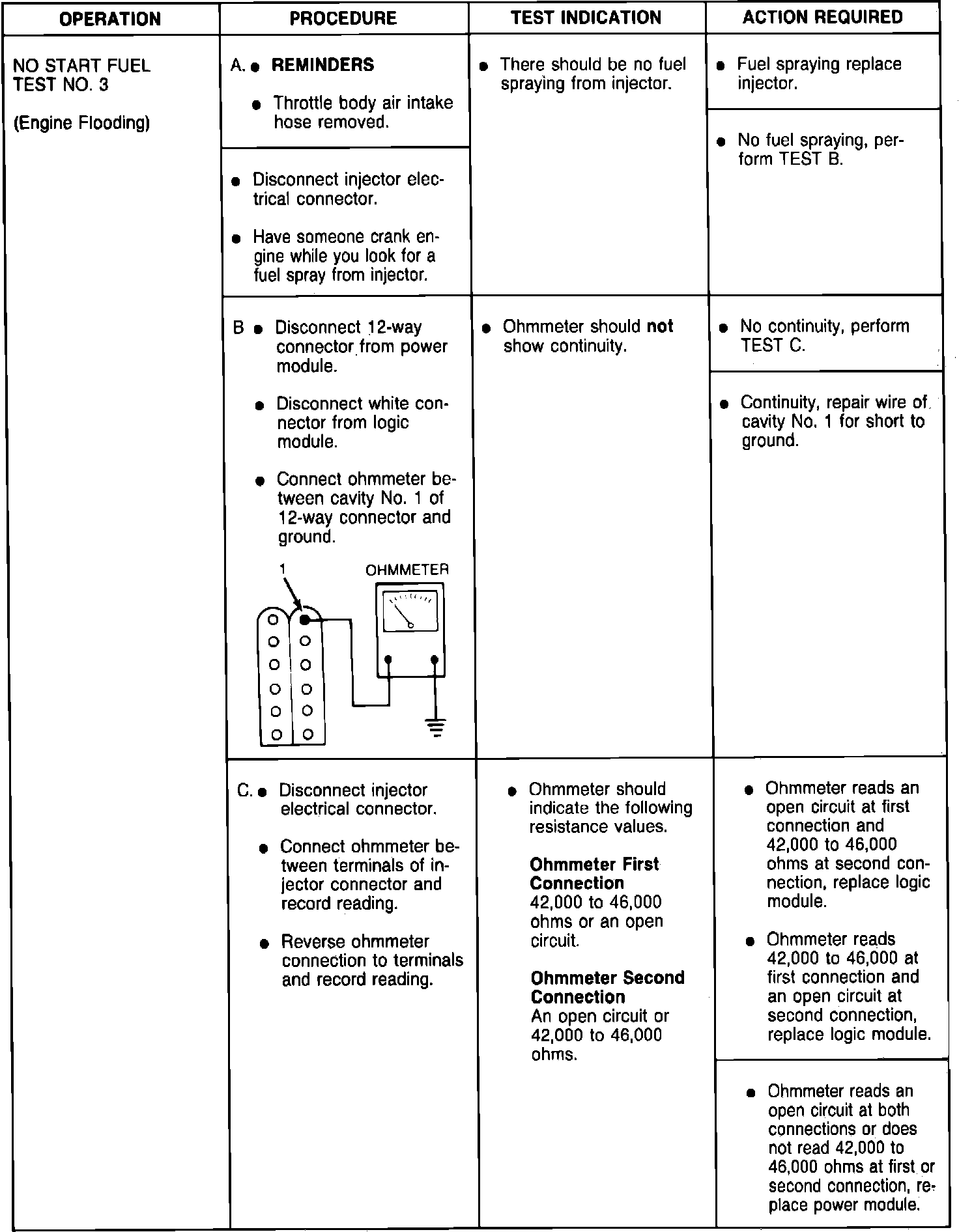

Test 3-Step A, B & C:
