Power Window Switch - Manual Revision

Models

1985 Conquest Equipped With Power Windows

Subject

Service Manual Revision - Power Window Switch

Index

ELECTRICAL

Date

May 28, 1985

No..

08-20-85

P-1795-C

POWER WINDOW SWITCH:

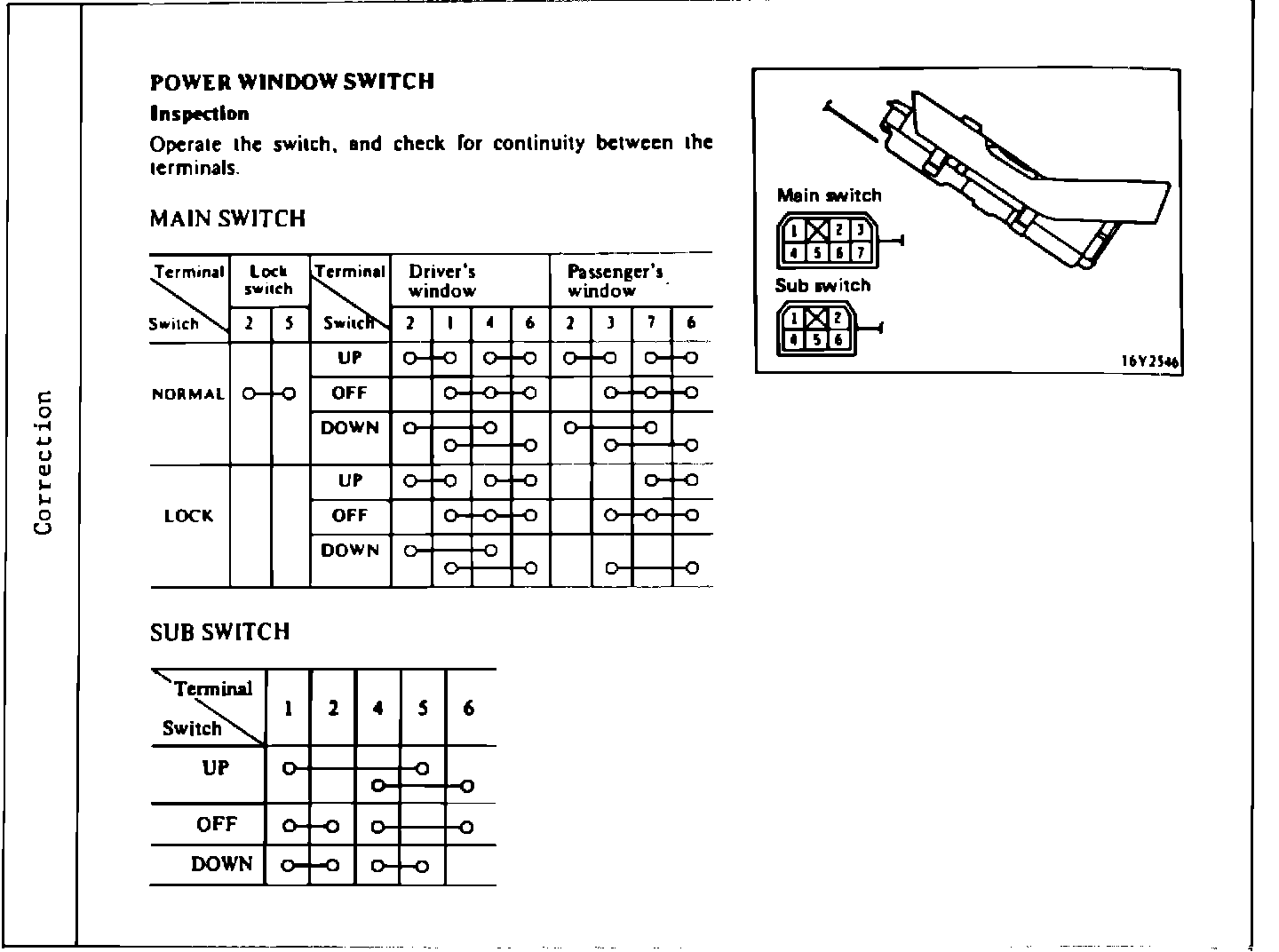

The 1985 Conquest Service Manual, publication #81-270-5013, has an incorrect power window switch identification table and illustration on page 8-246.

The correct table and illustration is attached.

POLICY: Information only
