Vacuum Switch: Description and Operation

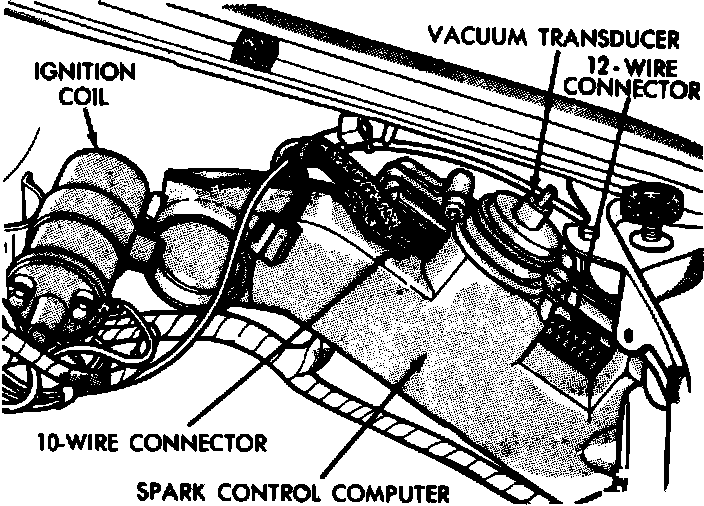

Fig. 5 Spark control computer & vacuum transducer location. 1983-86 4-135 engine:
The
vacuum transducer is located on the computer and it provides the computer with information on engine vacuum,
Fig. 5. It is used to control spark advance and air fuel ratios. And indicates engine load.
