Electrical Wiring - Service Manual Revision

88chrysler04

Models

1987 & 1988 "LA" (Colt)

Subject

Electrical Wiring - Service Manual Revision

Index

ELECTRICAL

Date

April 25, 1988

No.

08-02-88

P-1571 (C08-05)

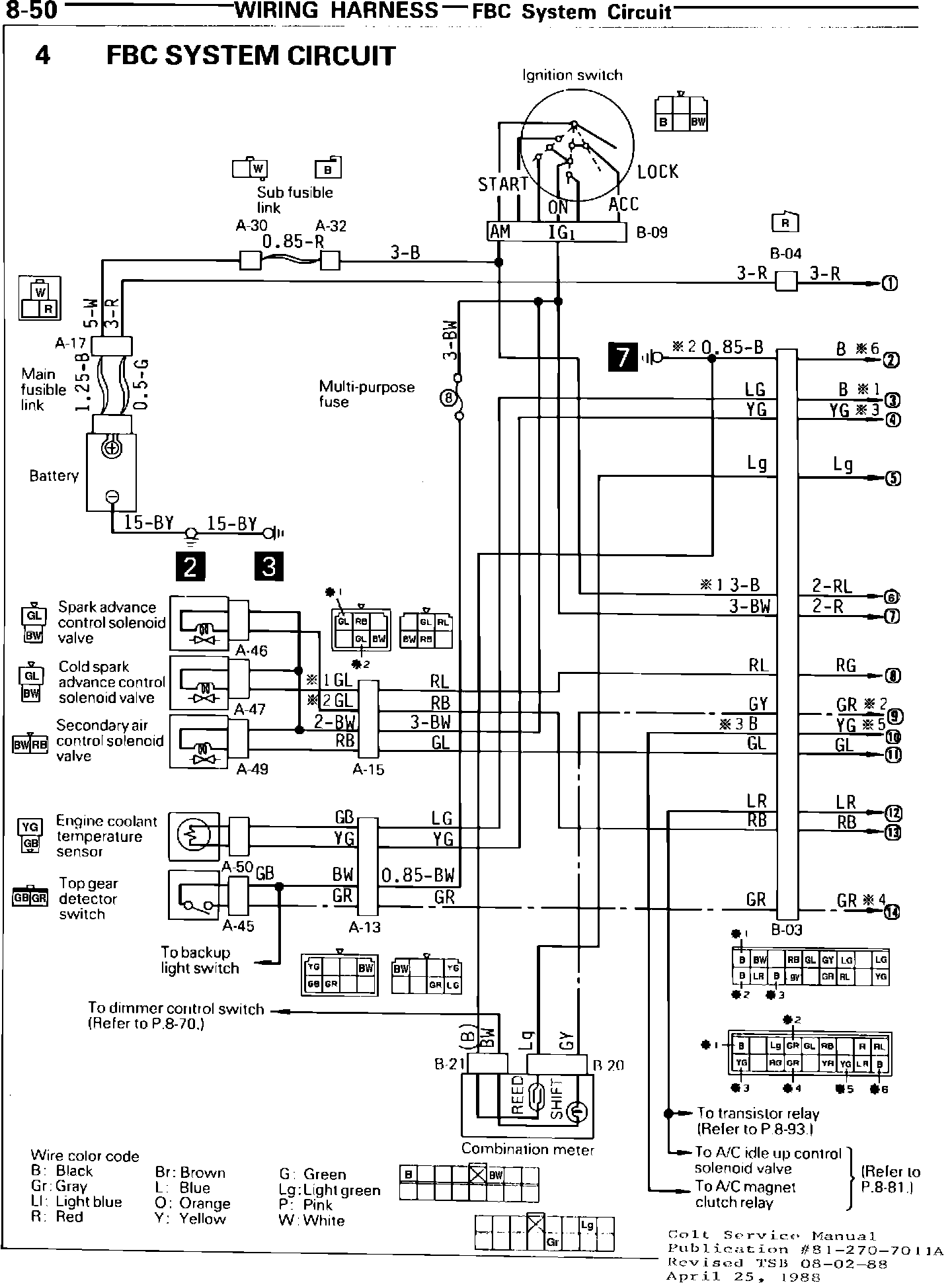

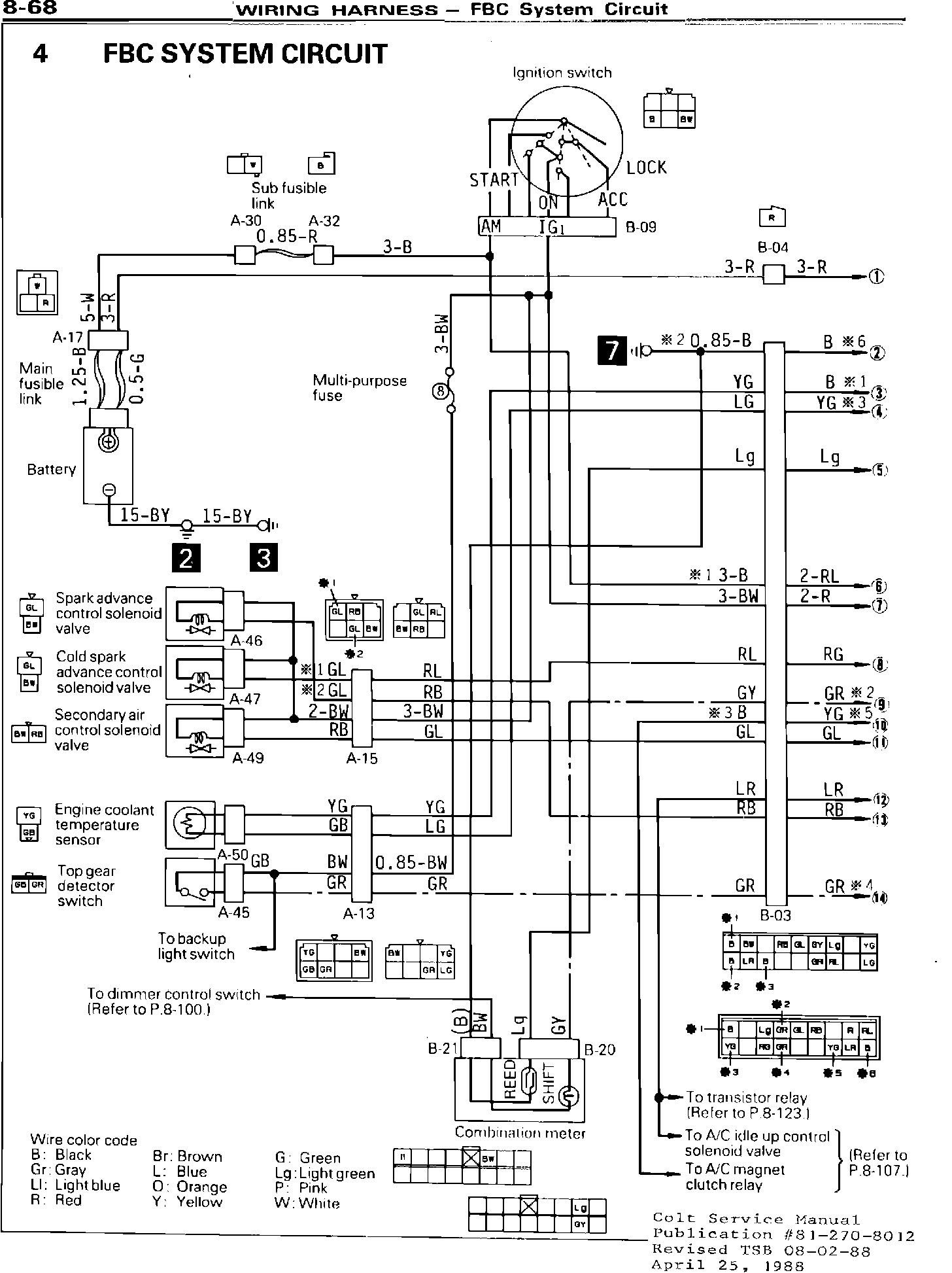

This bulletin is issued to revise the 1987 and 1988 Colt Service Manuals, Volume 2, Publication Numbers 81-270-7011A and 81-270-8012. New pages 8-50 and 8-68 have been provided.

NOTE: PLEASE STAPLE, TAPE, OR GLUE THEM INTO THE APPROPRIATE SERVICE MANUAL.
POLICY: Information Only
