Models H/D, C

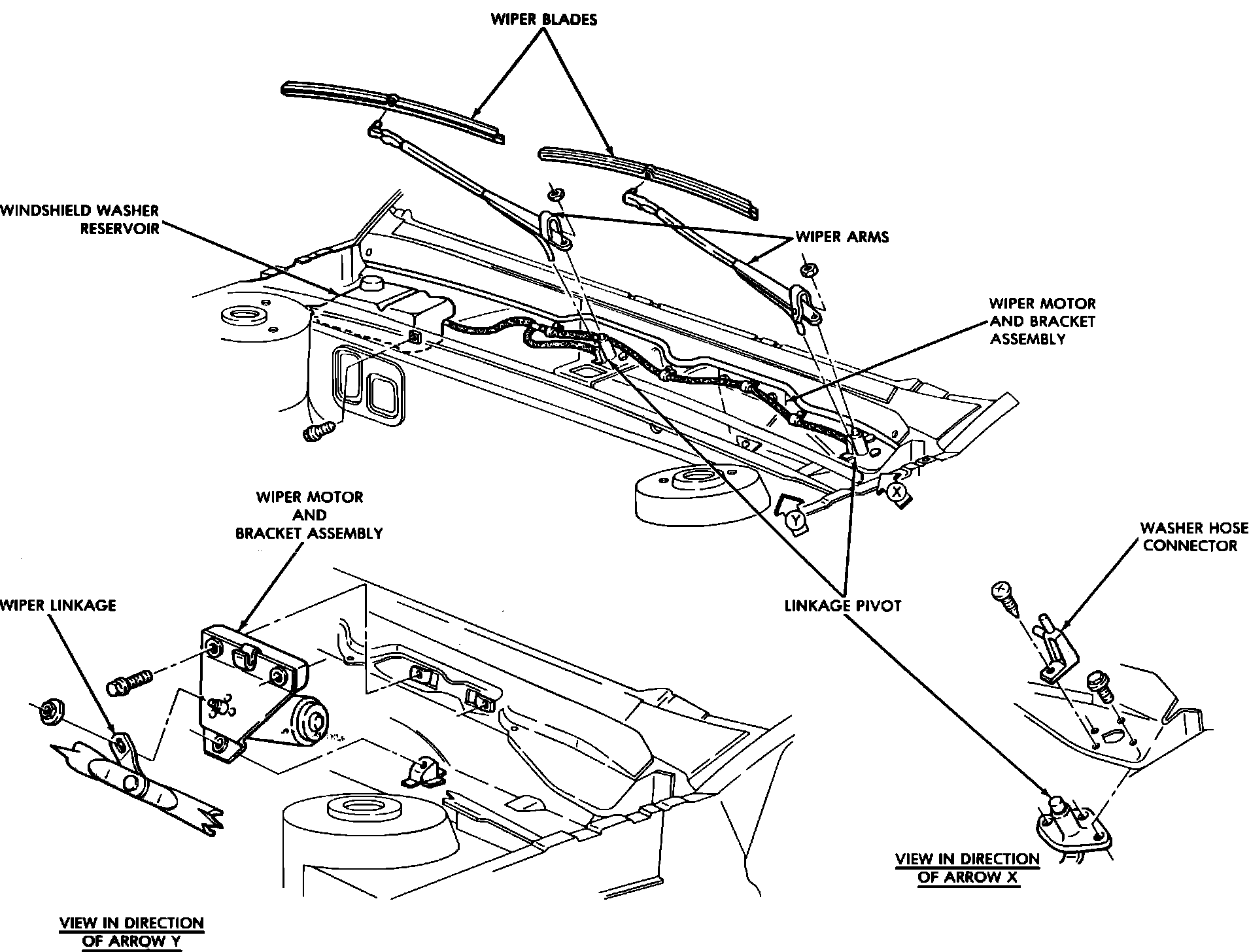

Wiper Motor And Linkage (H/D, C):






REMOVAL

1. Open hood.
2. Remove wiper arms.
3. Remove cowl top plastic cover.
4. Remove 3 attaching screws from each pivot.
5. Disconnect wiper motor wiring harness.
6. Remove 3 bolts attaching motor mounting bracket to body.
7. Remove wiper motor, bracket and linkage assembly from cowl plenum.
8. Perform necessary disassembly on bench.

INSTALLATION

1. Put assembly together after performing needed service.
2. Install wiper motor, bracket and linkage assembly into cowl plenum.
3. Loosely install pivots with 3 attaching screws.
4. Secure motor mounting bracket to body.
5. Attach wiring harness to wiper motor.
6. Tighten pivot attaching screws.
7. Install cowl top plastic cover.
8. Install and adjust wiper arms.
