Idle Speed

CURB IDLE SPEED
California 850 rpm
Federal, High Altitude 800 rpm

FAST IDLE SPEED
Federal 1300 rpm
California, High Altitude 950 rpm

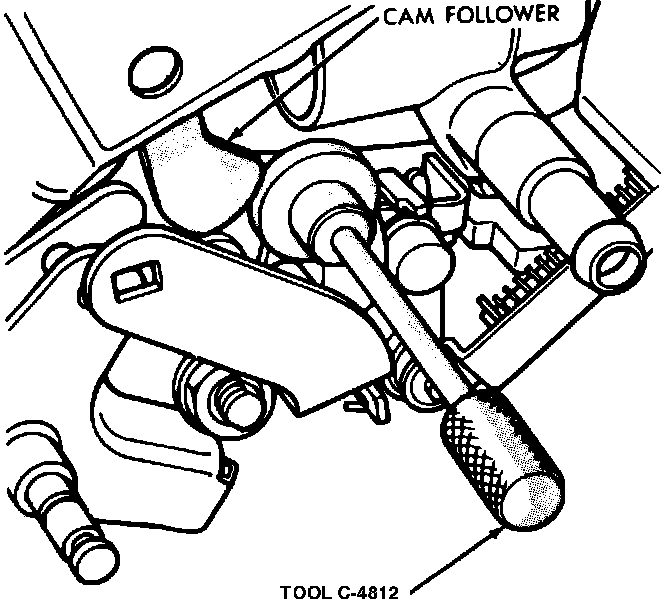

Fig. 8 Fast idle speed adjustment tool installation. 4-156 engines:




NOTE: With tool C-4812 installed.
