ECI/MPI - Driveability/Troubleshooting Revisions

88chrysler14

Models


1987 & 1988 "NF45Z" (Vista) & 1988 "LA" (Colt)


Subject


Service Manual Revisions ECI Multi Driveability Troubleshooting & MPI System Adjustment


Index


FUEL


Date

November 7, 1988

No.


14-10-88

P-4610

(C14-09)
This bulletin is issued to revise the 1988 Colt, Colt Vista, and 1987 Colt Vista Service Manuals. Use the chart provided below and staple, tape, or glue the revised pages into the appropriate manual.


Manual Publication No. Pages

1987 Colt Vista ECI-Multi 81-699-7033 20
Driveability Troubleshooting

1988 Colt Vista Volume 1 81-270-8013 14-31 & 14-33


1988 Colt Volume 1 81-270-8011 14-224


POLICY: Information only



20 ECI-MULTI-Electrical Wiring Diagram

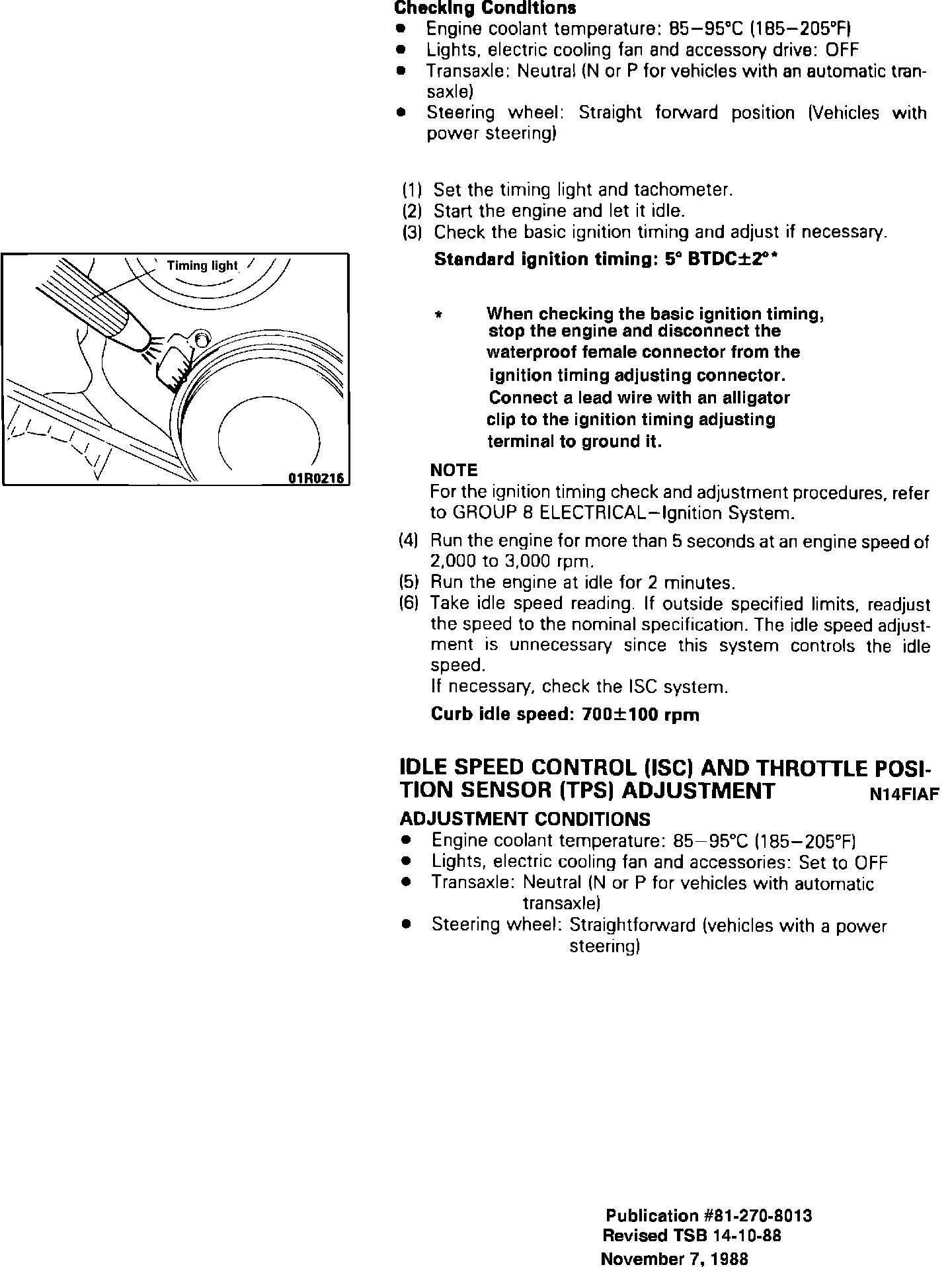

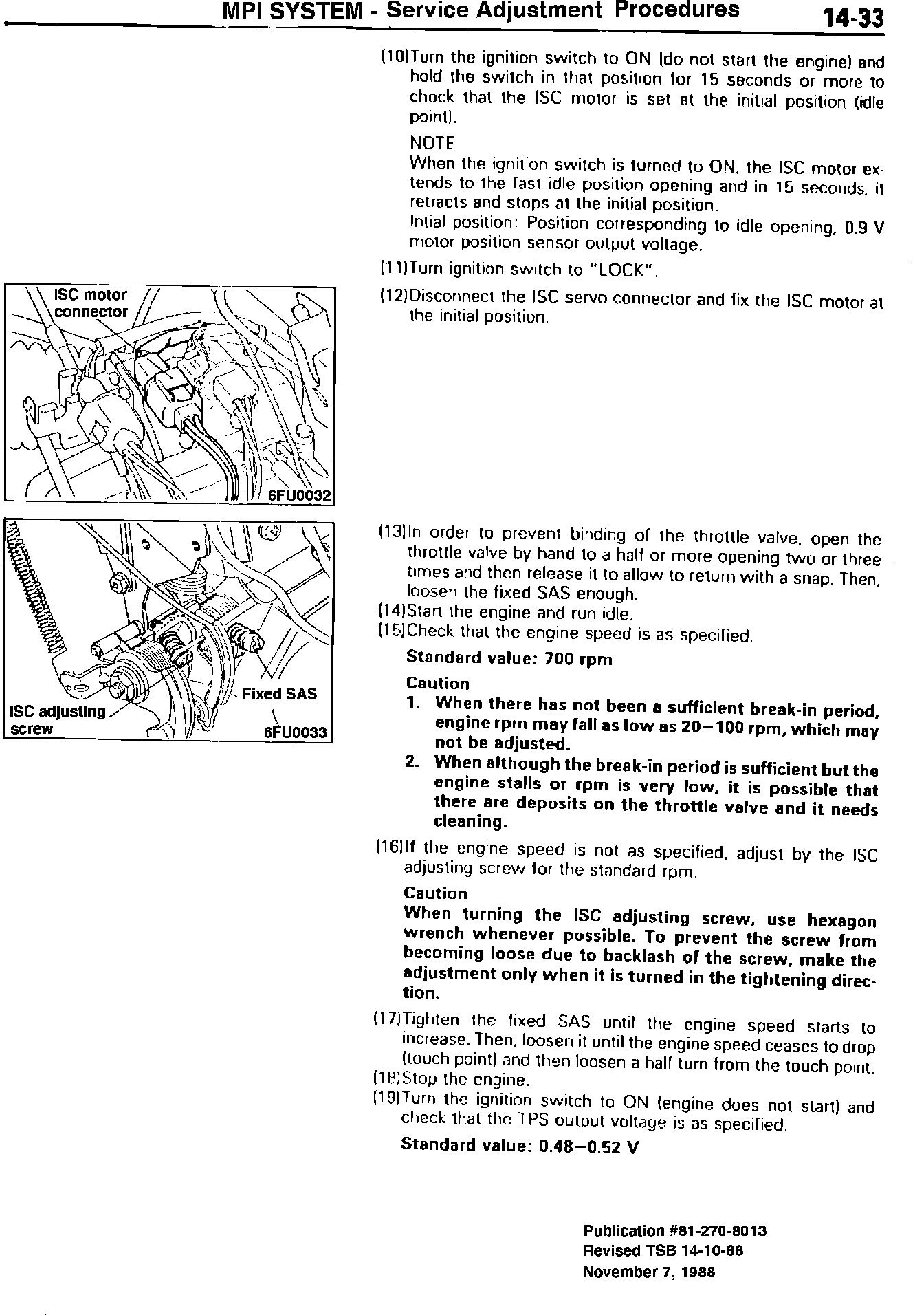

MPI SYSTEM - Service Adjustment Procedures 14-31

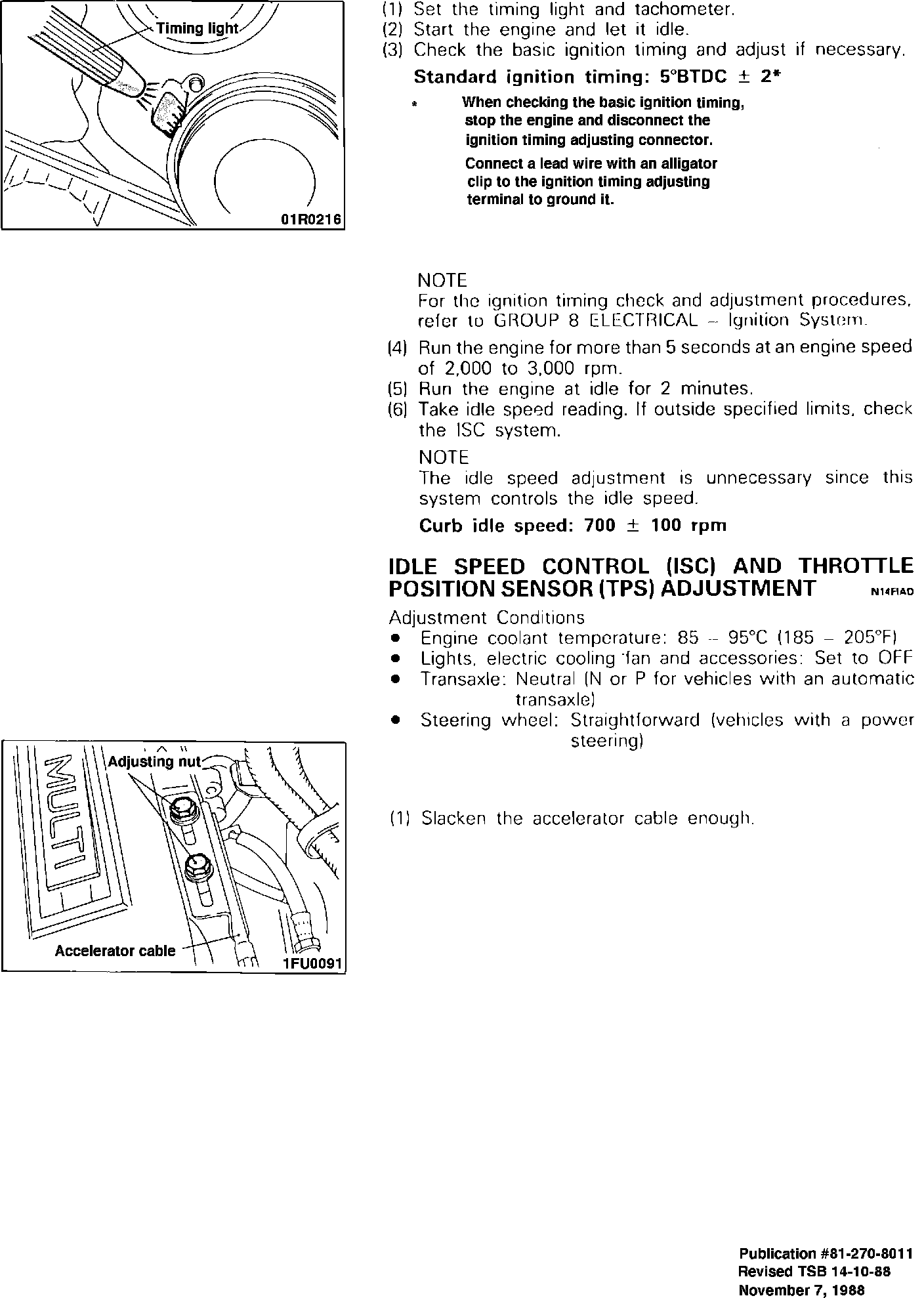

14-224 FUEL (MPI) SYSTEM - Service Adjustment Procedures
