Air Conditioning Switch: Service and Repair

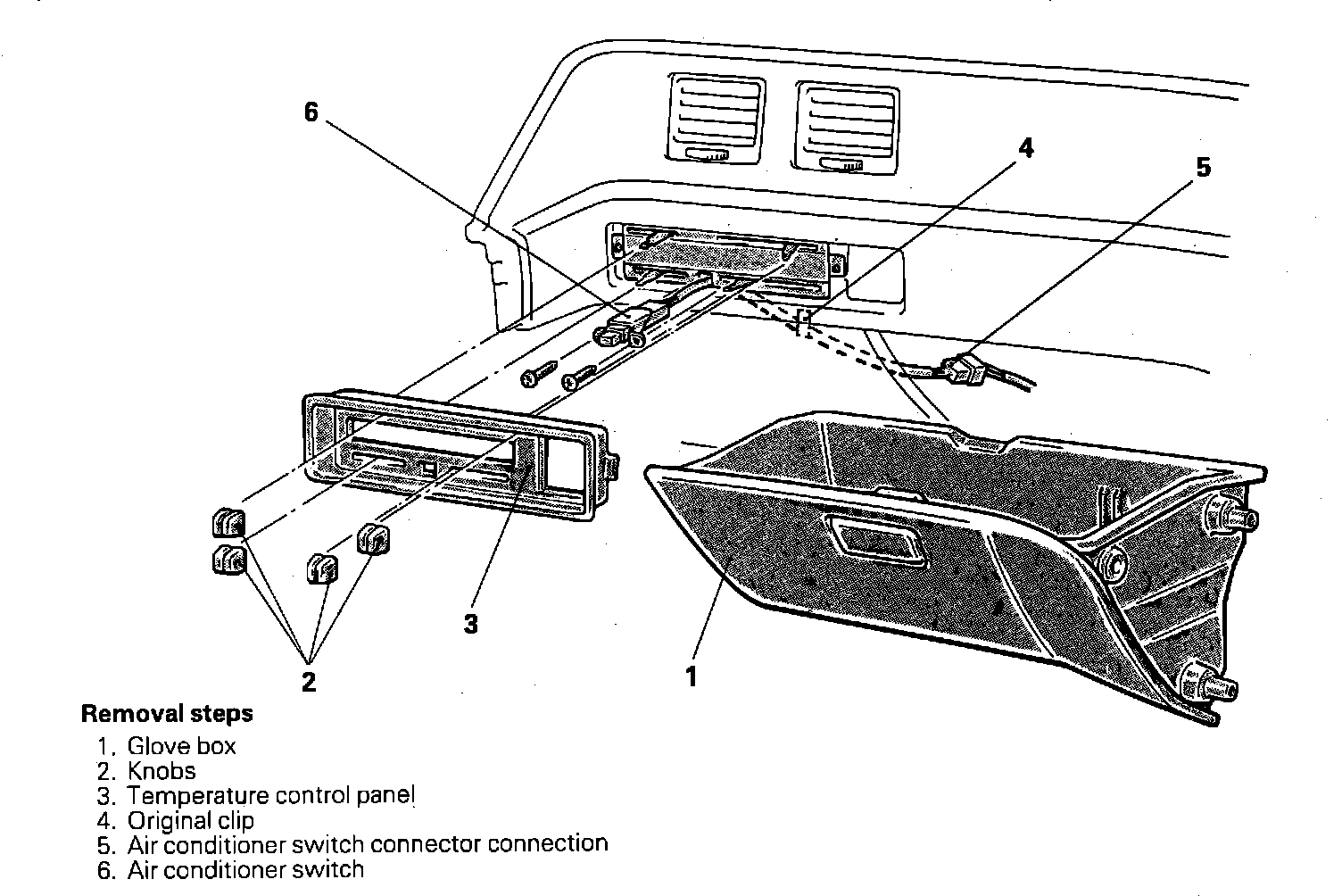

A/C Switch Removal:

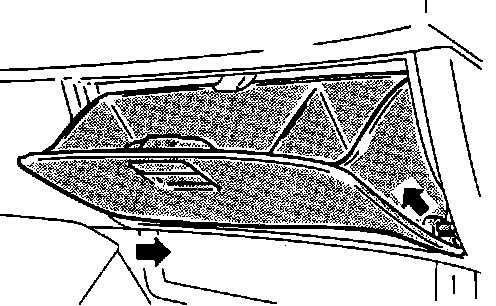

Glove Box Removal:

1. Open the glove box and carefully but quickly pull up on the right corner of the glove box to the right hinge pin.

2. Slide the glove box toward the passenger door to remove it from the dash panel.

A/C Panel Removal:

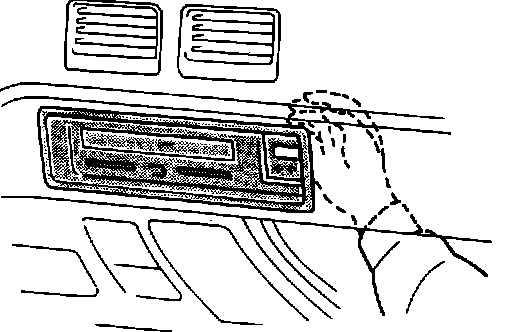

3. Push the right side panel clip to the right, while pushing the control panel forward.

4. Allow the panel cover to hang, while the air-conditioner switch is being removed.

5. Installation procedures are the reverse of the removal procedures
