Cruise Control: Service and Repair

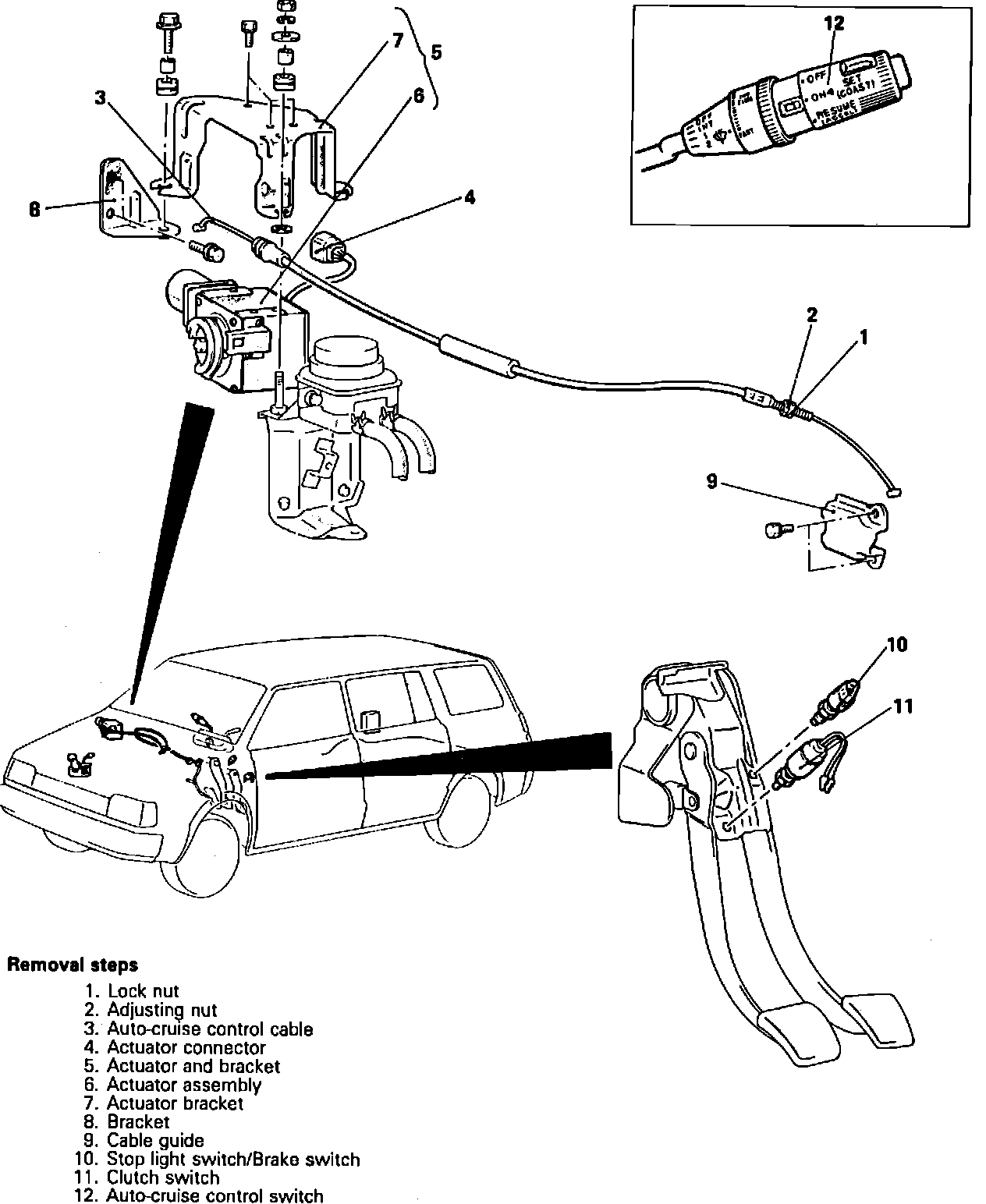

Fig. 100 Component Location:
Remove components in order shown when replacing actuator cable. Reverse procedure to install, noting the following:
1.
Check inner and outer cable for damage. Ensure cable is properly positioned without sharp bends.
2.
Check connection of cable to end fitting.
3.
Check operation of actuator, brake switch and
clutch switch.
