Rear Doors

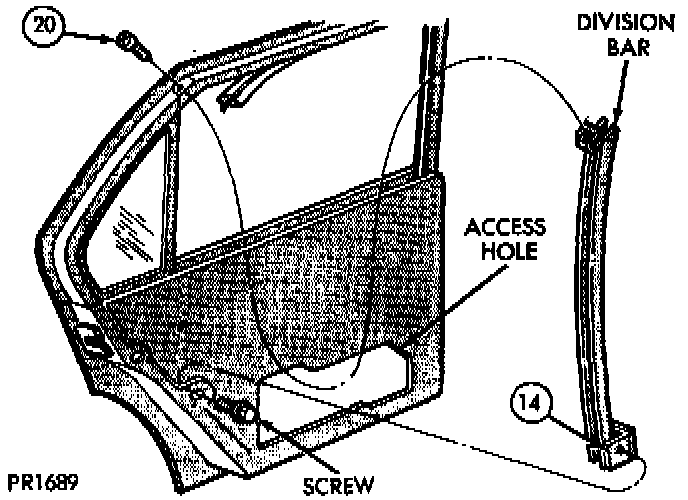

Division Bar Mounting:

DIVISION BAR AND GLASS RUN
1. Remove door trim panel and plastic air shield.
2. Lower glass until lift plate (17) fasteners (19) are visible through large access hole.
3. Remove fasteners and lower glass to bottom of door.
4. Remove division bar lower bracket fastener (14).
5. Remove division bar upper fastener (20).

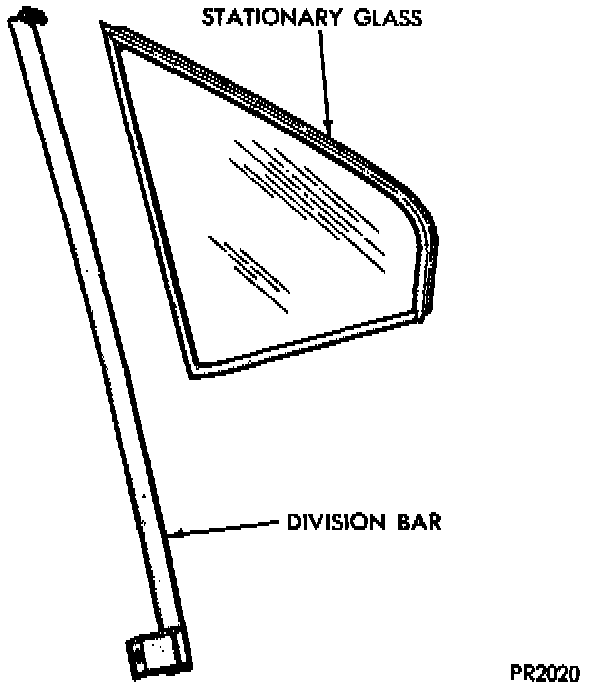

Division Bar To Glass:

6. Disengage the division bar from both the movable and fixed glass and remove through large access hole.
7. Reverse above procedure for installation making sure plastic air shield is cemented to door inner panel.
8. Adjust door glass. Refer to Adjustments.
