Ignition Timing - Manual Revision


91chrysler01

SUBJECT: Service Manual Revision
- 2.0L Ignition Timing


NO.: 08-02-91


GROUP: ELECTRICAL


DATE: Feb. 11, 1991


MODELS: 1990-91 (BD) LASER


In order to properly adjust ignition timing on the 2.0L DOHC engine, several steps must first be taken. Some of these steps were omitted from the 1990 and 1991 service manuals. The attached pages correct these omissions. Please insert these pages in the appropriate service manuals.

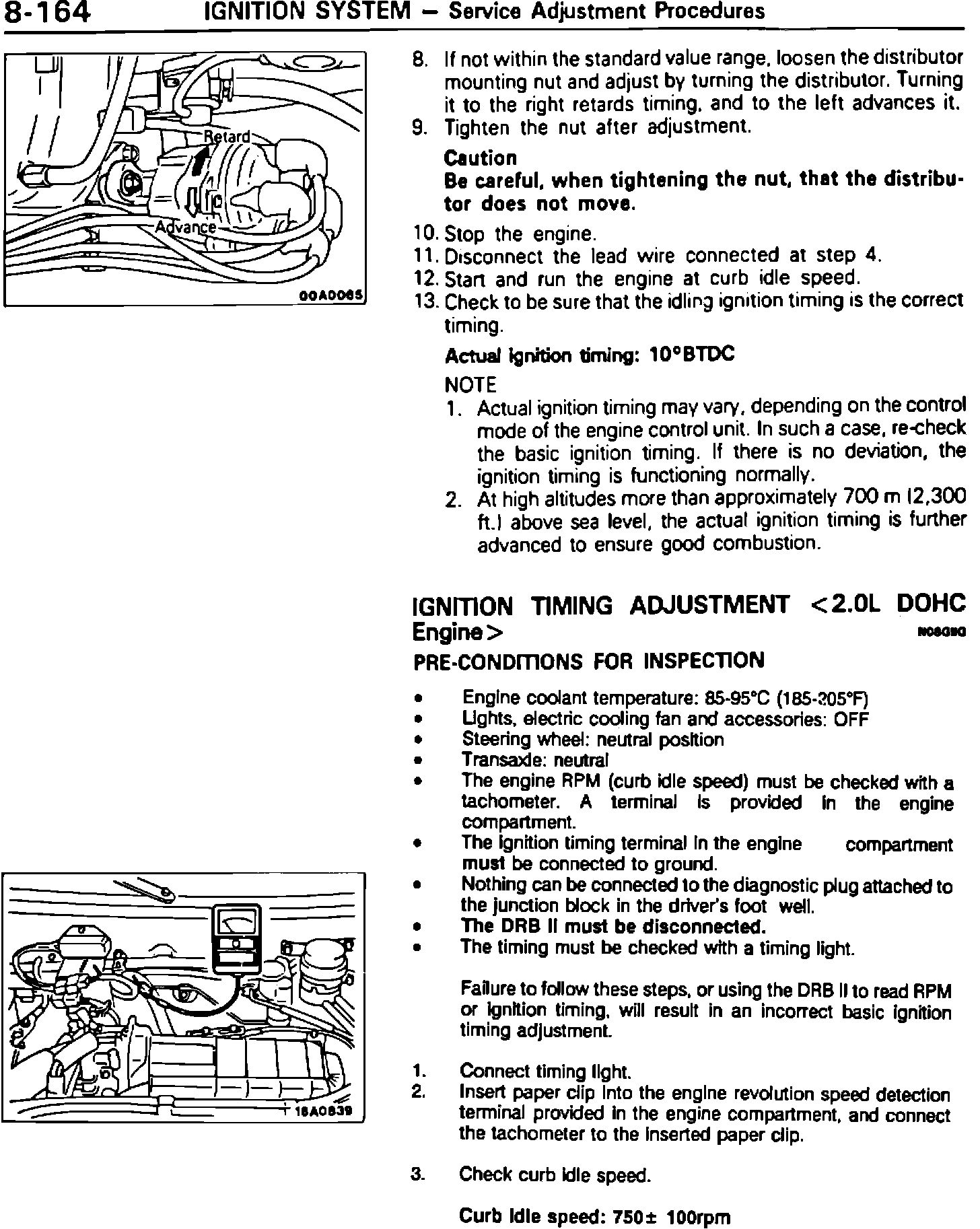

PAGE 8-164 1990 LASER SERVICE MANUAL VOLUME-2 ELECTRICAL
PUBLICATION # 81-270-0176

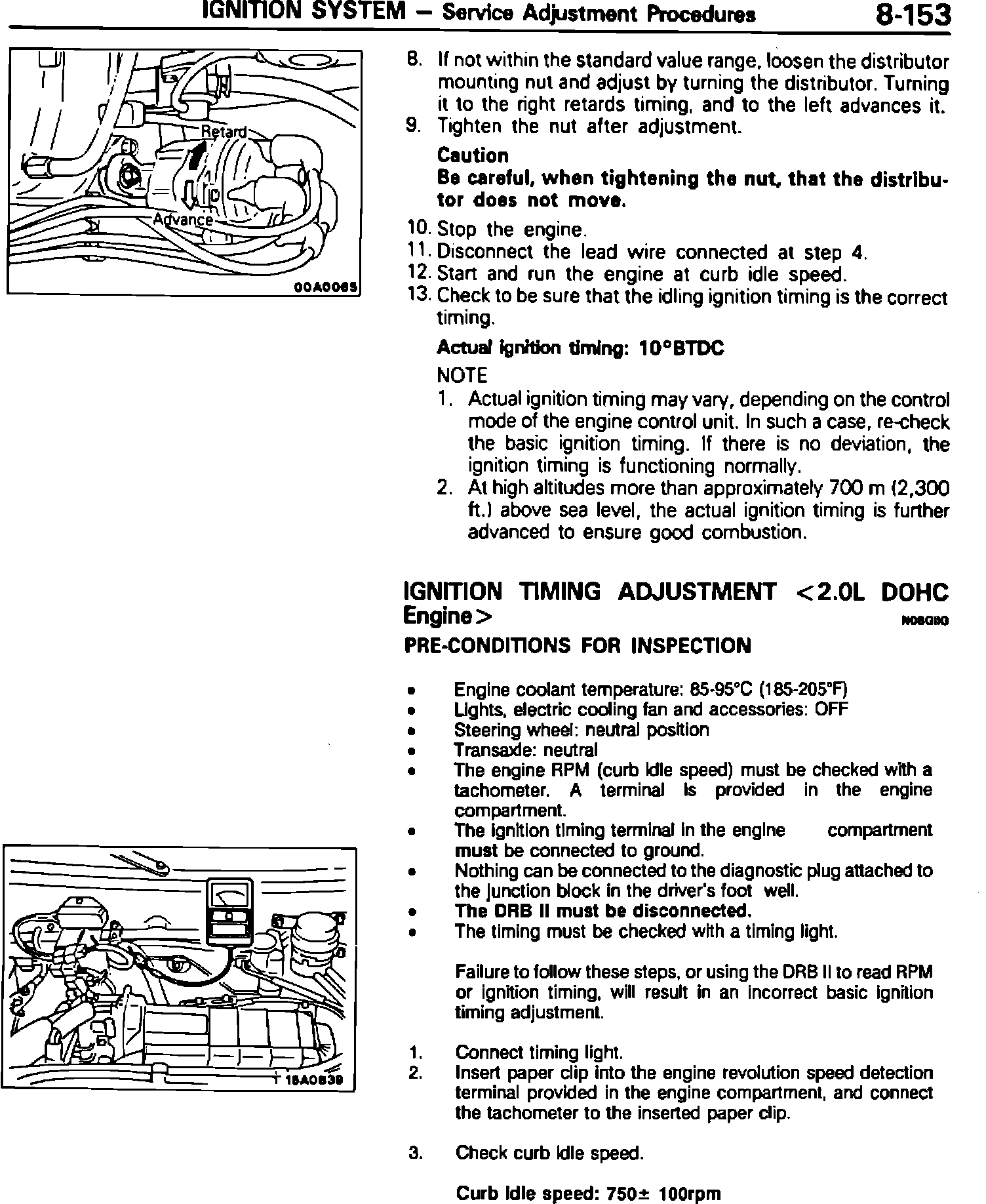

PAGE 8-153 1990 LASER/TALON SERVICE MANUAL VOLUME-2 ELECTRICAL
PUBLICATION # 81-270-0500

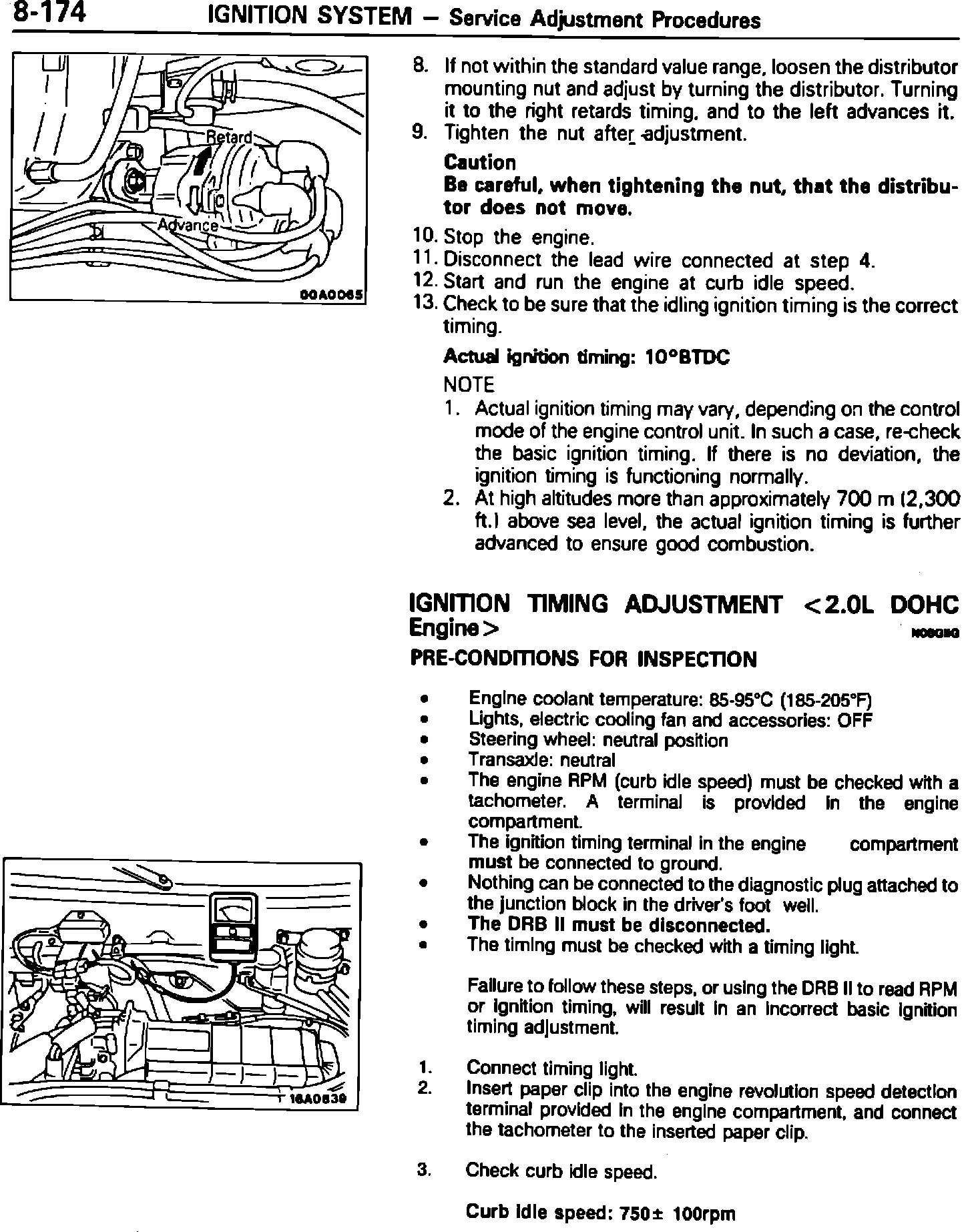

PAGE 8-174 1991 LASER/TALON SERVICE MANUAL VOLUME-2 ELECTRICAL
PUBLICATION # 81-270-1501
