Powertrain - Diagnostic Procedures Revision

90CHRYSLER06 Models

1990 AA, AG, AJ, AP & AS Bodies


Subject

Powertrain Diagnostic Procedures Manual Revision 2.2/2.5 Turbo


Index


DRIVEABILITY


Date

February 26, 1990

No.


18-08-90

(C18-05-0)
P-387
BODY CODE LEGEND

AA - SPIRIT/ACCLAIM
AG - DAYTONA
AJ - LEBARON COUPE/LEBARON CONVERTIBLE
AP - SUNDANCE/SHADOW
AS - CARAVAN/GRAND CARAVAN/CARAVAN C/V
VOYAGER/GRAND VOYAGER






DIAGNOSTIC PROCEDURES MANUAL REVISION

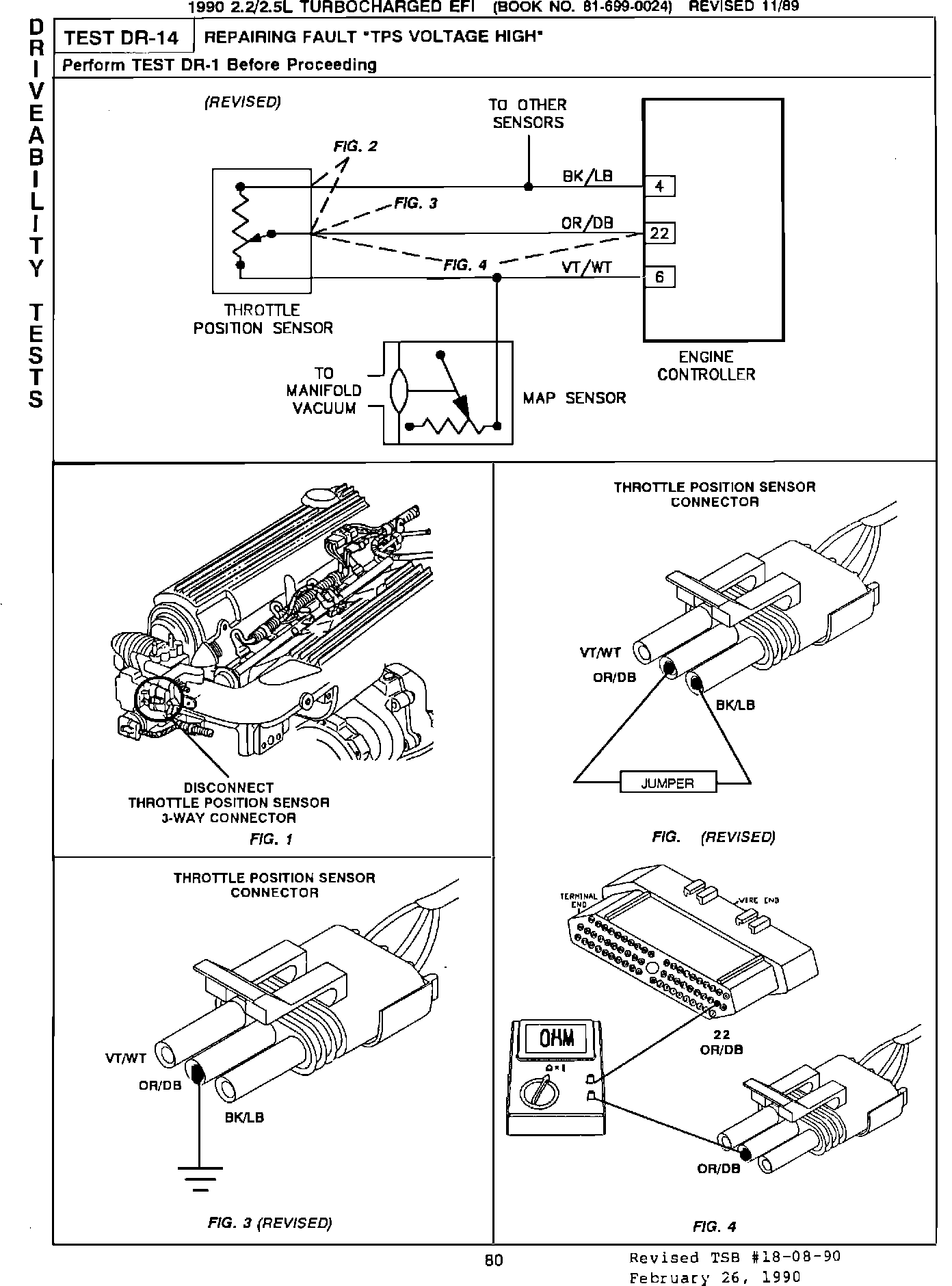

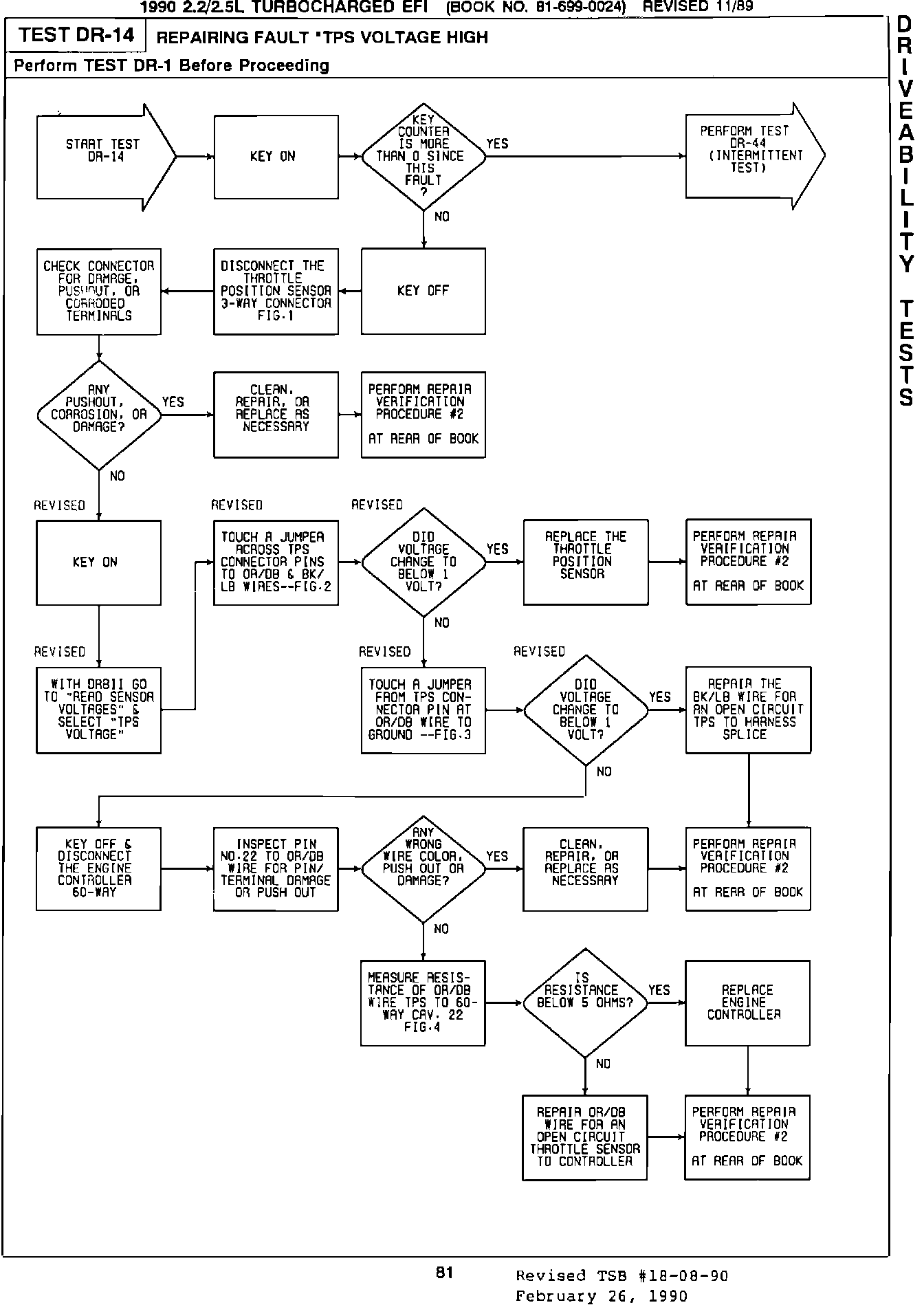

Pages 80 and 81 of the 1990 Powertrain Diagnostic Procedures Manual Publication # 81-699-0024 for the 2.2 and 2.5 liter turbocharged engines have been revised.

Please insert these revised pages in your Powertrain Diagnostic Test Procedure Manual for future reference.


POLICY: Information only.
