Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection

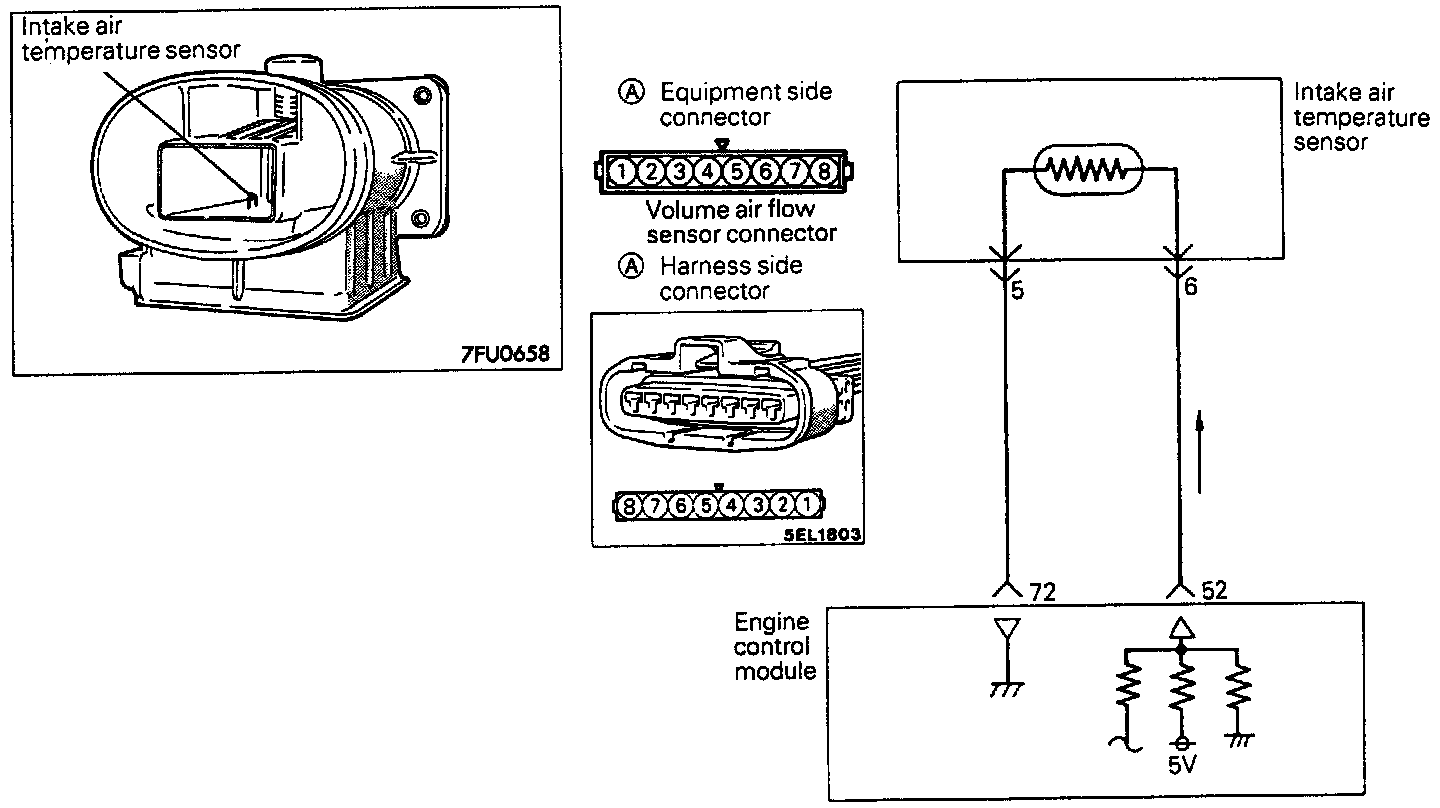

Intake Air Temperature Sensor:






HARNESS INSPECTION

Intake Air Temperature Sensor:




Intake Air Temperature Sensor:




Intake Air Temperature Sensor:







SENSOR INSPECTION

Intake Air Temperature Sensor:




Intake Air Temperature Sensor:




Intake Air Temperature Sensor:






1. Disconnect the volume air flow sensor connectors.
2. Measure resistance between terminals 5 and 6.
3. Measure resistance while heating the sensor using a hair drier.
4. If resistance does not decrease as heat increases or the resistance remains unchanged replace the volume air flow sensor assembly.

INSPECTION USING SCAN TOOL

Intake Air Temperature Sensor:
