Shift Interlock: Service and Repair

REMOVAL
1. Remove the lower column covers, ignition switch, and shrouds. Refer to Shift Interlock Cable.

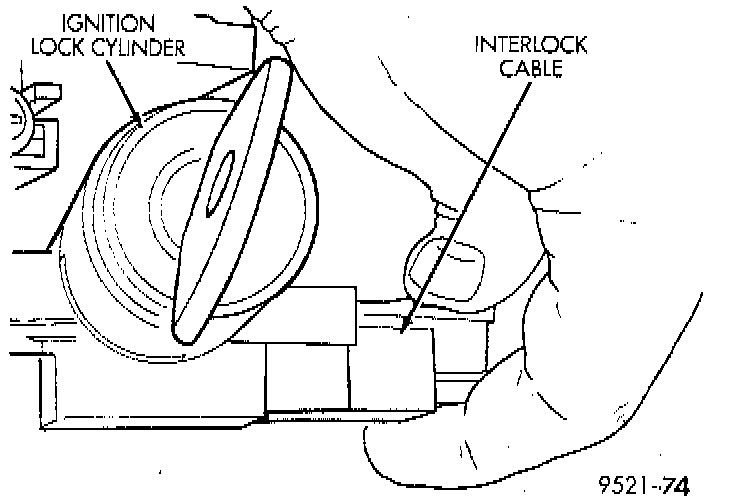

2. Grasp the interlock cable and connector firmly. Remove the interlock cable.

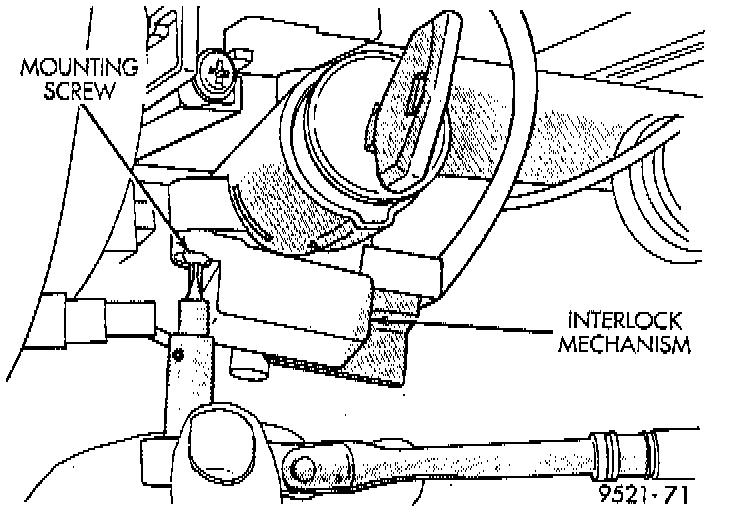

3. Remove the two interlock mechanism-to-steering column attaching screws. Remove the interlock housing.

INSTALLATION
1. Position the interlock housing at steering column. Install the two interlock mechanism-to-steering column attaching screws. Torque screws to 3 Nm (21 inch lbs.).
2. Snap the interlock cable into the housing.
3. Install the lower column covers, shrouds, and ignition switch. Refer to Shift Interlock Cable.
