Receiver Dryer: Service and Repair

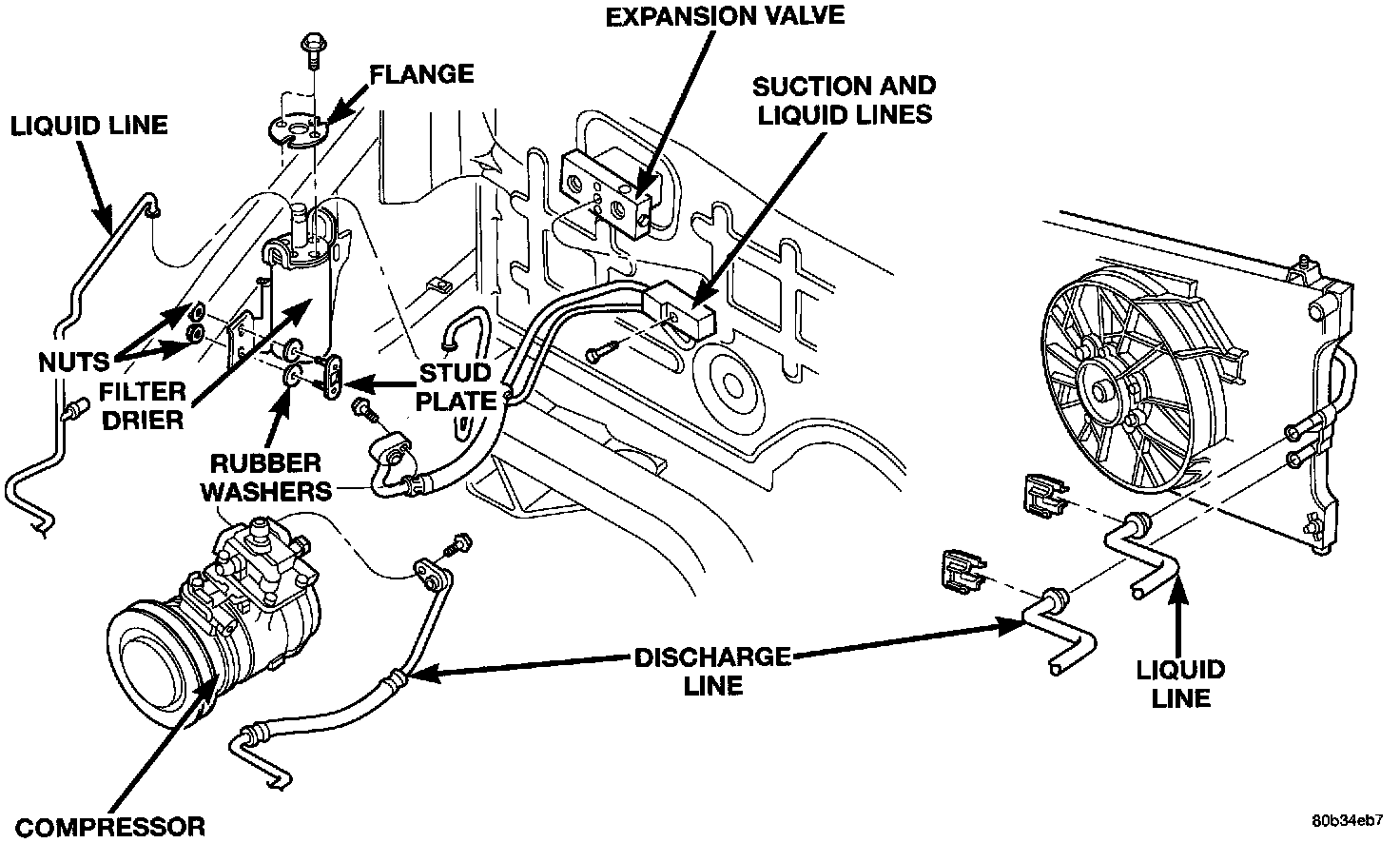

Fig 33 Suction And Liquid Lines:

REMOVAL
1. Remove refrigerant from A/C system using a refrigerant recovery machine.
2. Remove the two flange bolts.
3. Pull liquid and suction lines free from the filter/drier.

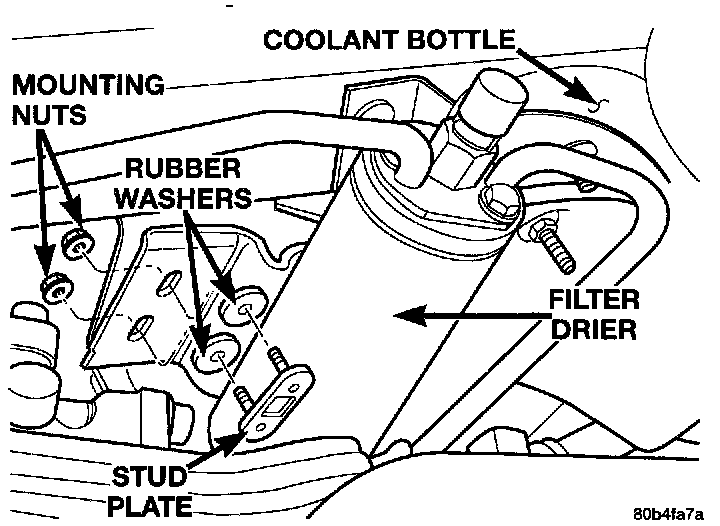

Fig 1 Filter/Drier Location:

4. Remove filter/drier bracket mounting nuts and fastener.
5. Cap lines while system is open to prevent moisture from entering system.

CAUTION: When installing new filter/drier do not leave open to atmosphere for a long period of time. The filter/drier contains moisture absorbing materials which will absorb moisture in the atmosphere.

INSTALLATION
For installation, reverse the above procedures.
