Washer Fluid Level Switch: Service and Repair

REMOVAL
1. Remove reservoir. Refer to Washer Reservoir Removal and Installation.

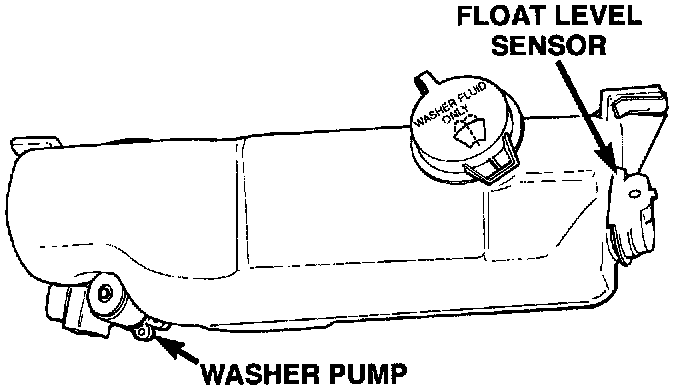

Washer Reservoir Float Level:

2. Gently pry float level sensor away from reservoir and out of grommet. Care must be taken not to puncture reservoir.
3. Remover rubber grommet from reservoir and throw away.

INSTALLATION
- For installation, reverse the above procedures. Tighten the reservoir nuts and screw to 4.5 N.m (40 in. lbs.) torque. Fill reservoir.
