Cruise Control Vacuum Reservoir: Service and Repair
REMOVAL 1.
Raise and support vehicle.
2.
Remove screws on top of vacuum reservoir.
3.
Remove vacuum hose.

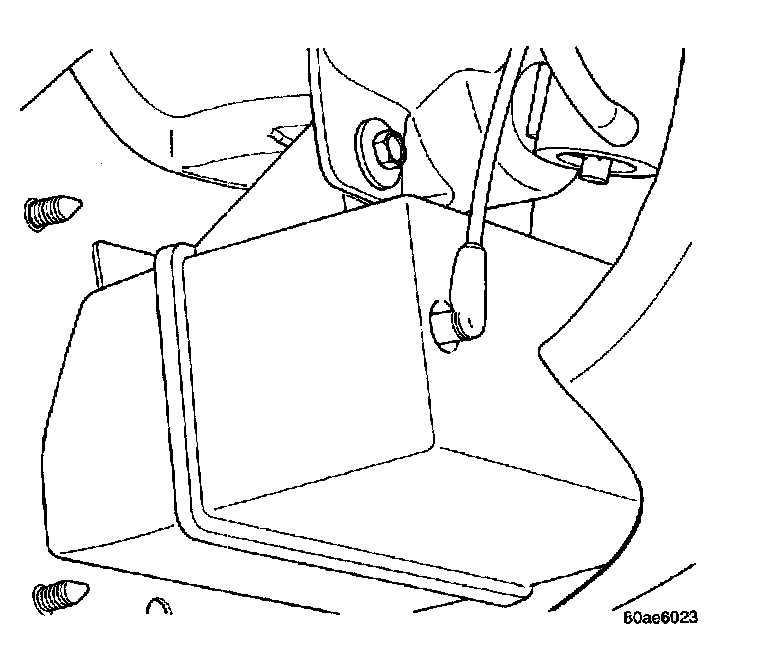

Vacuum Reservoir:
4.
Remove vacuum reservoir.
INSTALLATION 1.
Install vacuum reservoir, install screws and tighten to
5 Nm (44 in. lbs.).
2.
Install vacuum hose.
3.
Lower vehicle.
