Windows

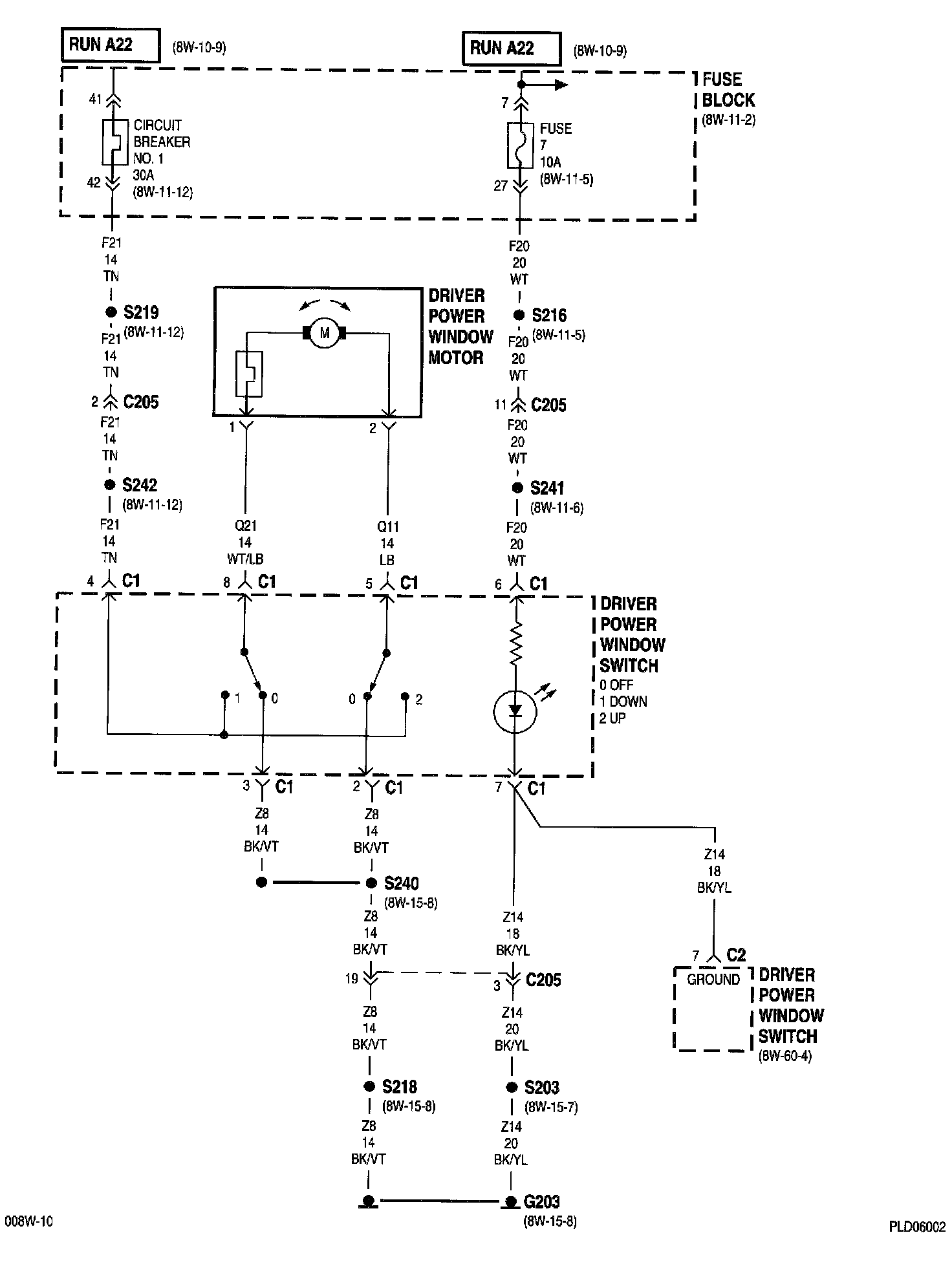

Power Windows 8w-60-2:




Circuit Breaker No.1 (FB)
Driver Power Window Motor
Driver Power Window Switch
Fuse 7 (FB)
Fuse Block
G203

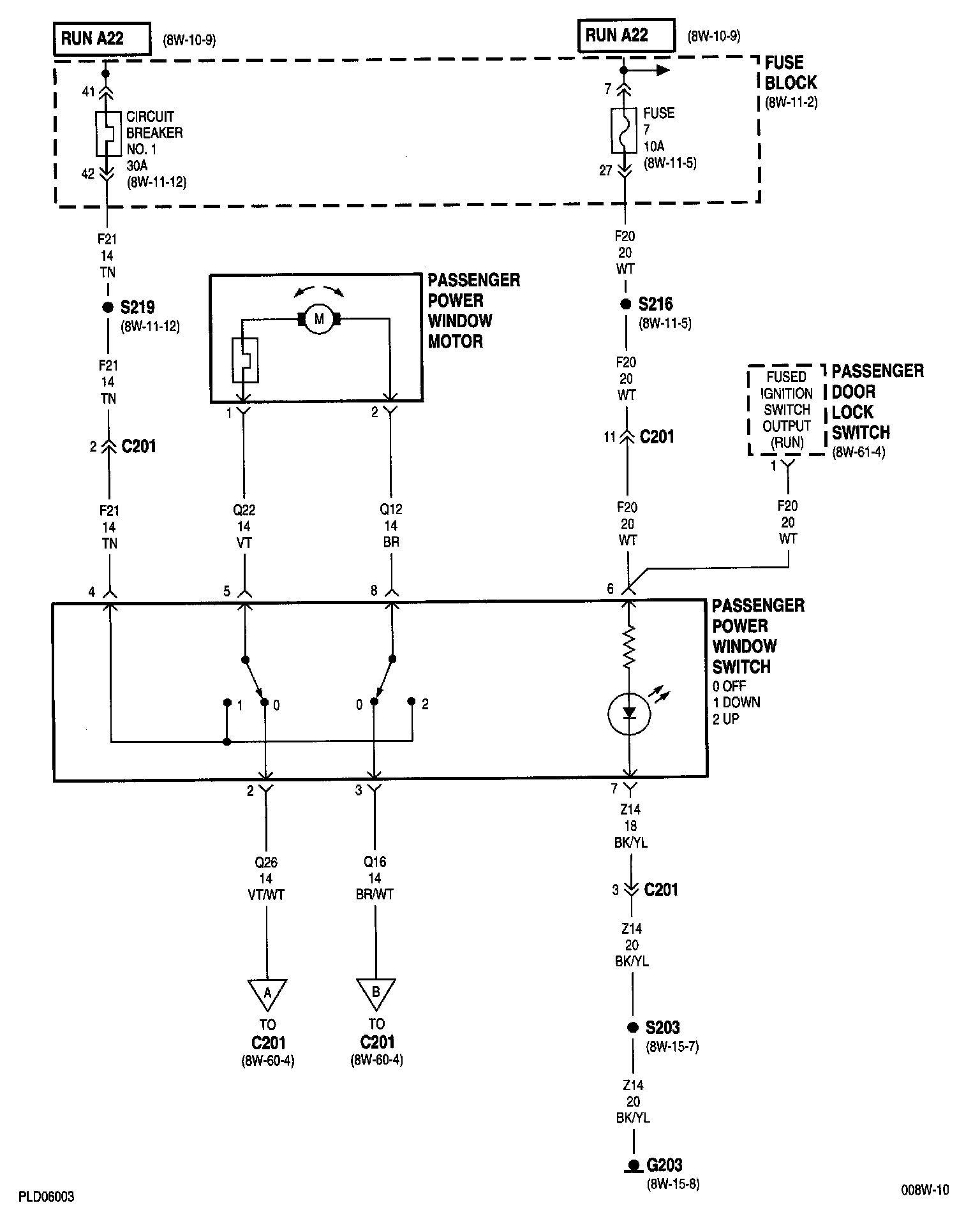

Power Windows 8w-60-3:




Circuit Breaker No.1 (FB)
Fuse 7 (FB)
Fuse Block
G203
Passenger Door Lock Switch
Passenger Power Window Motor
Passenger Power Window Switch

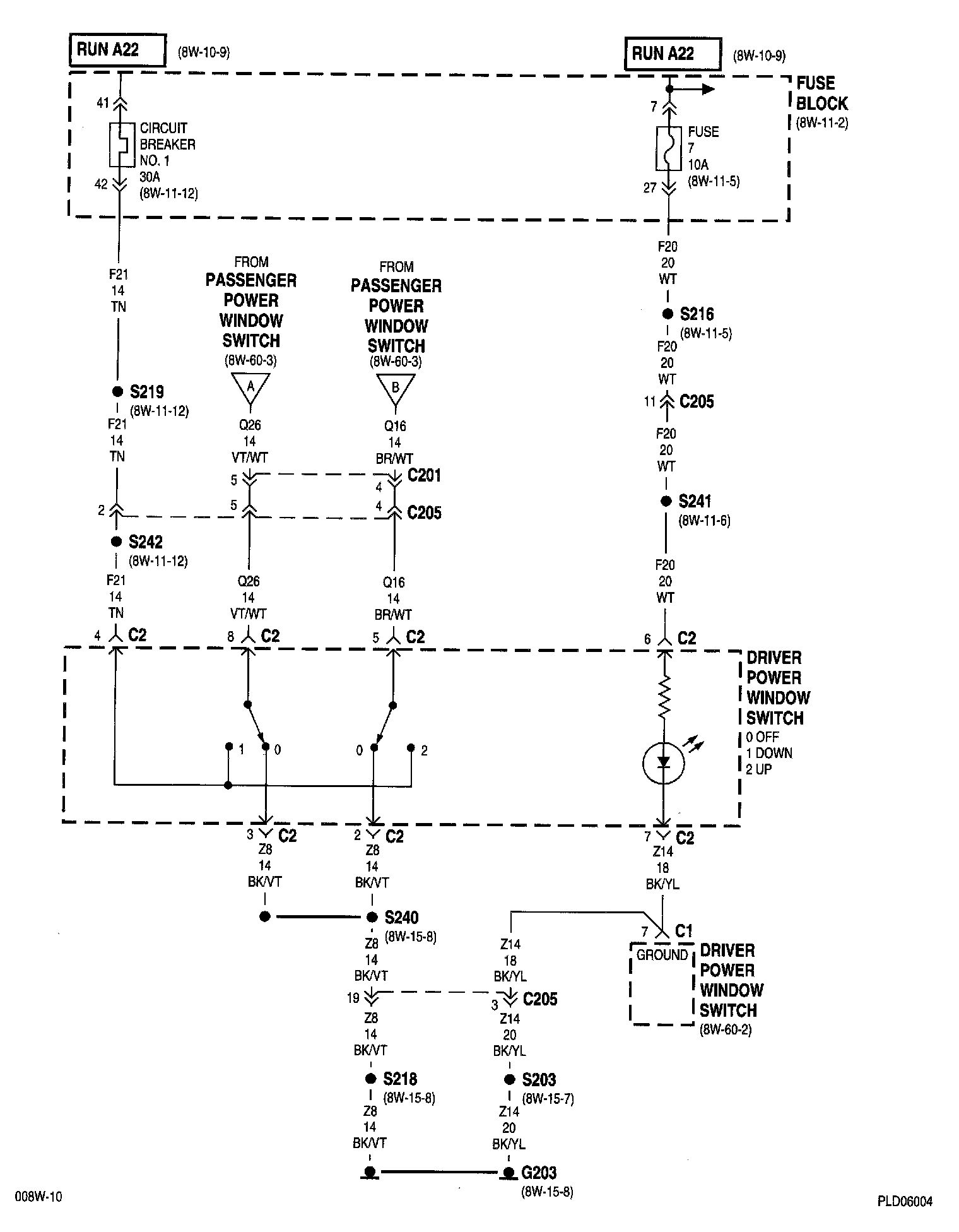

Power Windows 8w-60-4:




Circuit Breaker No.1 (FB)
Driver Power Window Switch
Fuse 7 (FB)
Fuse Block
G203


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
