Air Duct: Service and Repair

The defogger duct can not be removed with the instrument panel in place. The panel needs to be moved rearward to allow clearance for the defogger duct to clear the windshield.

REMOVAL
1. Move the instrument panel rearward enough to allow removal of the duct. Remove instrument panel. Refer to: Body and Frame, Interior Trim, Dashboard/Instrument Panel, Service and Repair, Instrument Panel Assembly Replacement, Instrument Panel Assembly

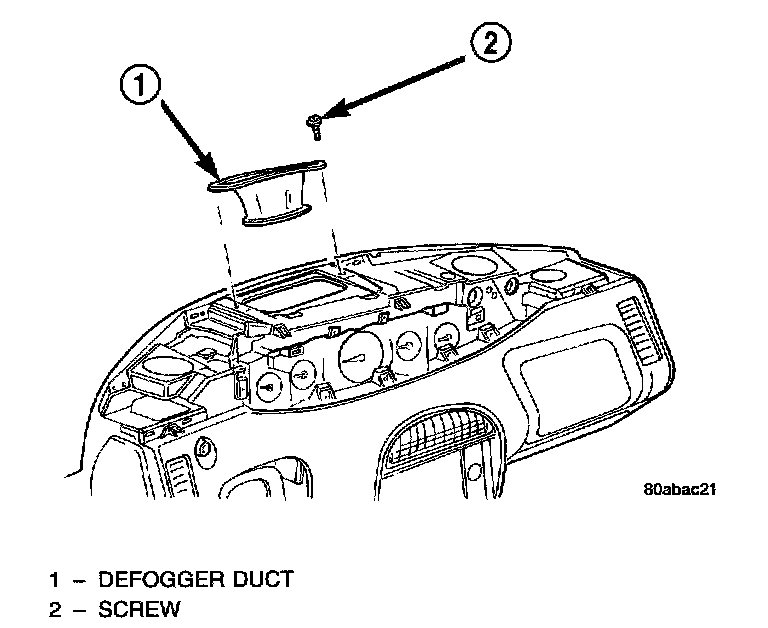

Defogger Duct:




2. Remove the two screws attaching defogger duct.

INSTALLATION
For installation, reverse the above procedures.
