Control Assembly: Service and Repair

REMOVAL
1. Open hood.
2. Disconnect and isolate the negative battery cable.

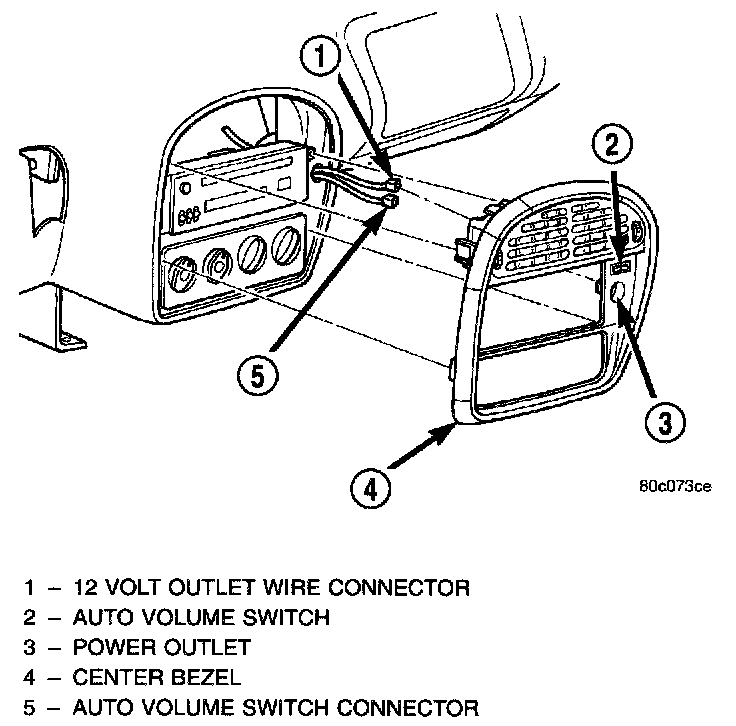

Center Bezel:




3. Pull center bezel straight rearward along the sides of the radio and A/C control openings to disengage four clips and disconnect the power outlet wire connector.

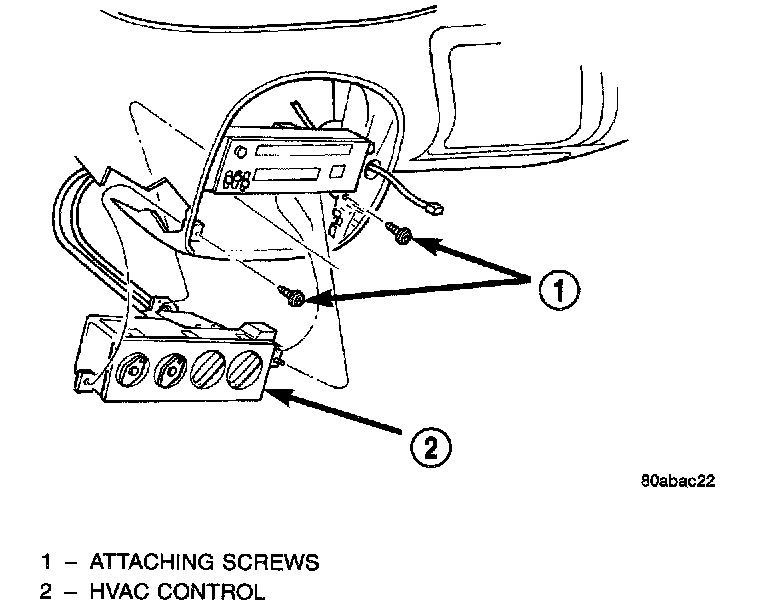

HVAC Control Removal:




4. Remove the HVAC control attaching screws. Pull the control out to disconnect two electrical connectors and two control cables.
5. Remove HVAC control from instrument panel opening and vehicle.

INSTALLATION
For installation, reverse the above procedures.
