Data Link Connector: Description and Operation

DATA LINK CONNECTOR - PCM OUTPUT

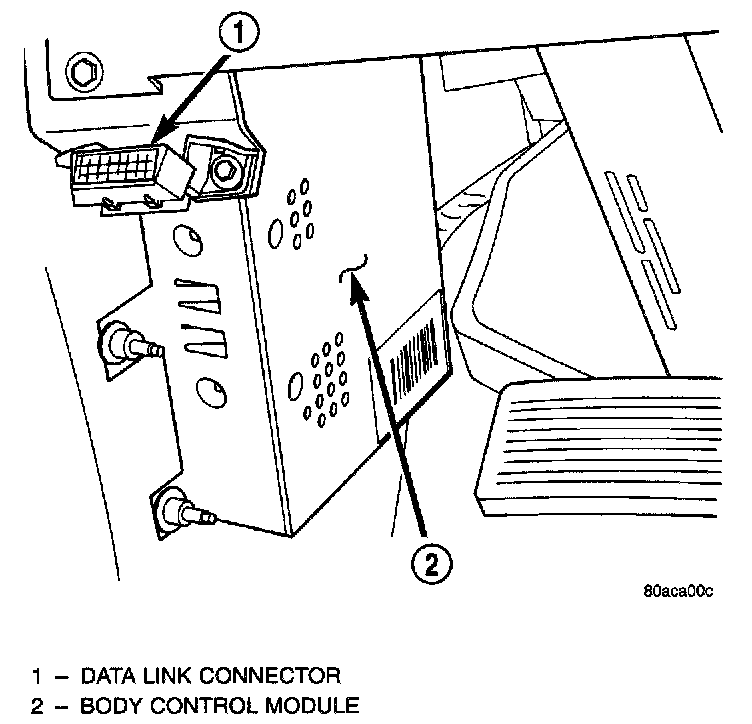

Data Link Connector Location:

The Data Link Connector (DLC) is located on the lower full left side of the instrument panel.

The Data Link Connector is used for communication between the DRB III scan tool, the Powertrain Control Module (PCM) and Mopar Diagnostic System (MDS) machine to aid in diagnosis of vehicle problems. Refer to On-Board Diagnostics.
