Leak Detection Pump Replacement

REMOVAL
1. Raise and support vehicle
2. Remove right rear tire.

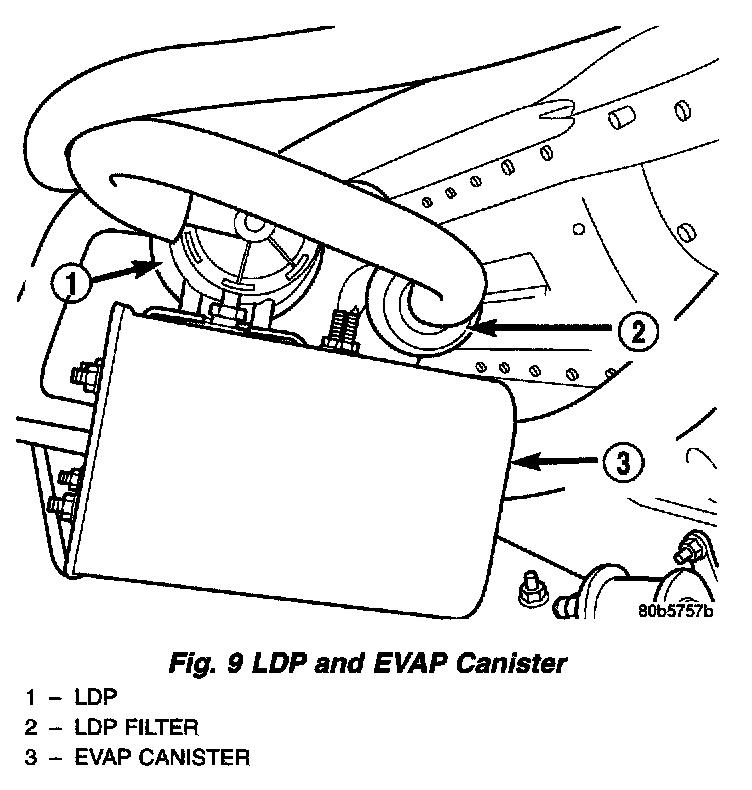

Fig. 9 LDP And EVAP Canister:

3. Disconnect rubber hose from Leak Detection Pump.
4. Remove 2 nuts from LDP mounting.
5. Remove assembly and disconnect electrical connector.
6. Remove LDP from bracket.

INSTALLATION

1. Install pump to bracket and tighten screws.
2. Connect electrical connector to pump.
3. Install pump and bracket to EVAP canister housing and tighten nuts.
4. Connect rubber hoses.
5. Install tire, refer to Wheels and Tires for torque of wheel nuts.
6. Lower vehicle.
