Variable Induction System: Service and Repair

REMOVAL
1. Disconnect negative battery cable.
2. Remove upper radiator support.

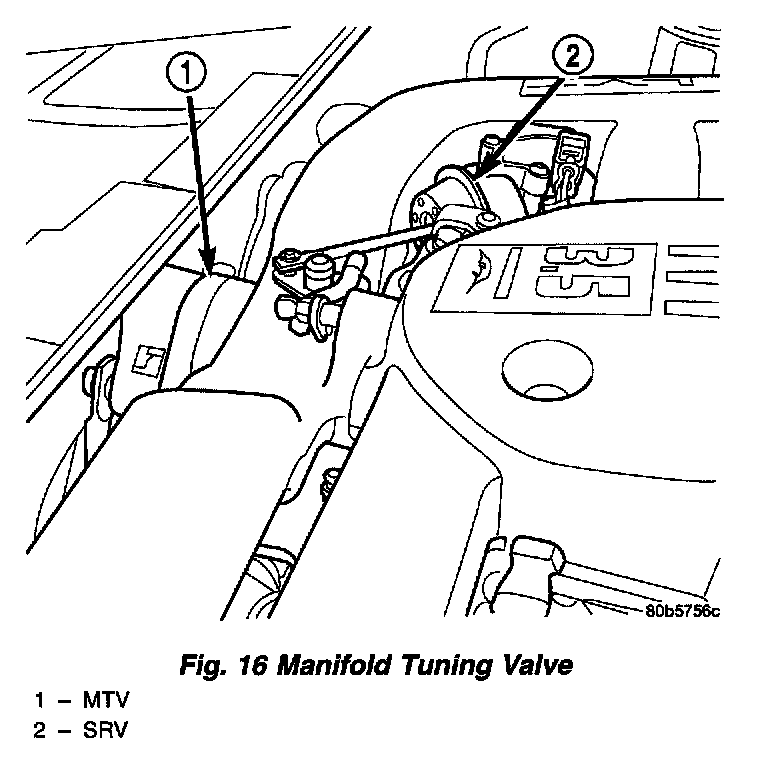

Fig. 16 Manifold Tuning Valve:

3. Disconnect electrical connector (Fig. 16).
4. Remove pencil brace.
5. Remove manifold tuning valve mounting screws. Remove tuning valve.

INSTALLATION
1. Install tuning valve. Tighten mounting screws to 11.9 Nm (105 in. lbs.) torque.
2. Install pencil brace.
3. Install upper radiator support.
4. Install electrical connector.
5. Connect negative battery cable.
