Variable Induction Control Solenoid: Service and Repair
REMOVAL 1.
Disconnect the negative battery cable.

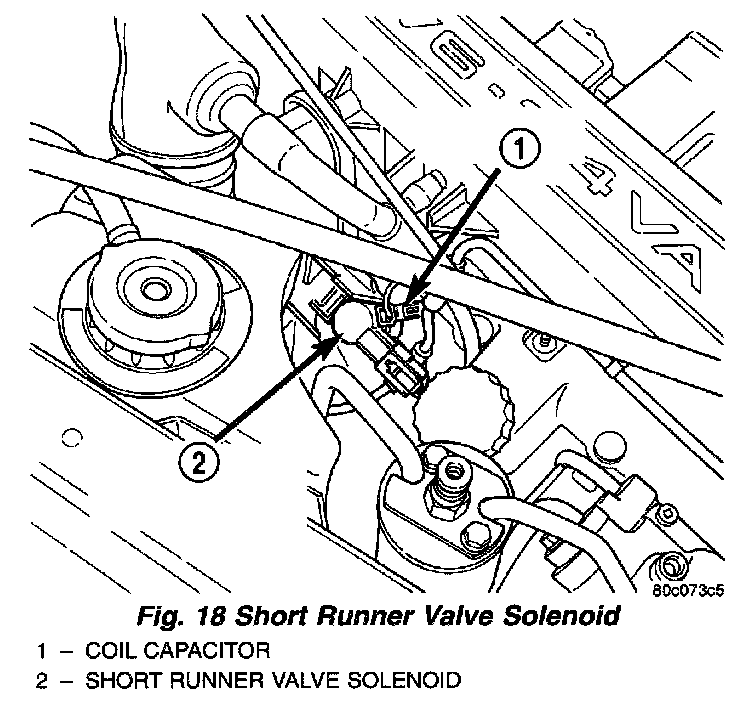

Fig. 18 Short Runner Valve Solenoid:
2.
Remove electrical connector (Fig. 18).
3.
Remove vacuum hoses.
4.
Unclip
SRV solenoid from holding bracket.
INSTALLATION 1.
Clip
SRV solenoid onto holding bracket.
2.
Install vacuum hoses to solenoid.
3.
Install electrical connector.
4.
Connect the negative battery cable.
