Power Distribution Center

Power Distribution Center

Power Distribution Center:

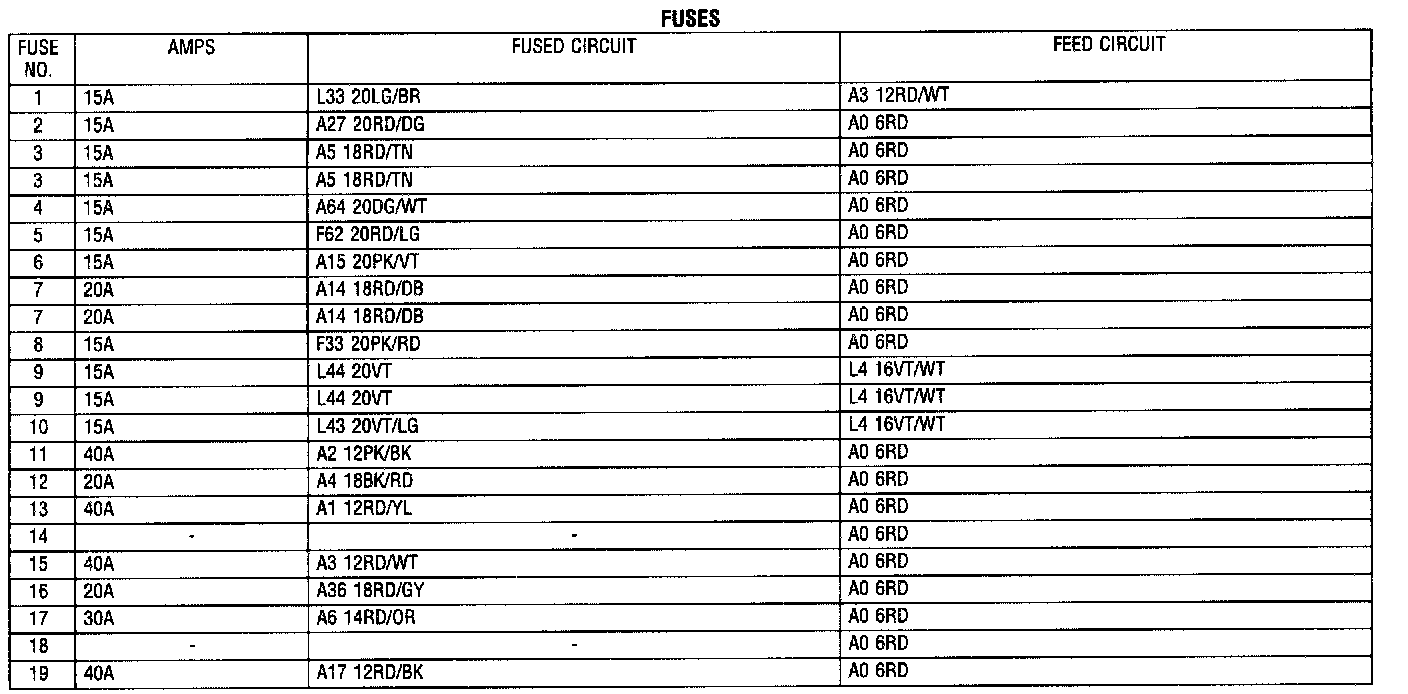

Fuses:

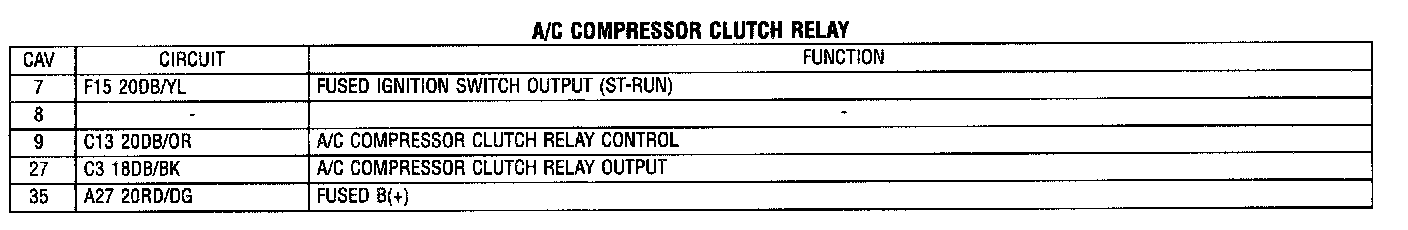

A/C Compressor Clutch Relay:

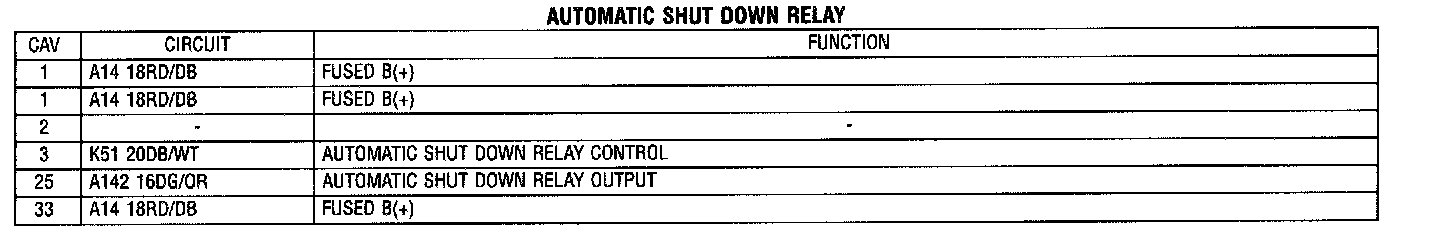

Automatic Shut Down Relay:

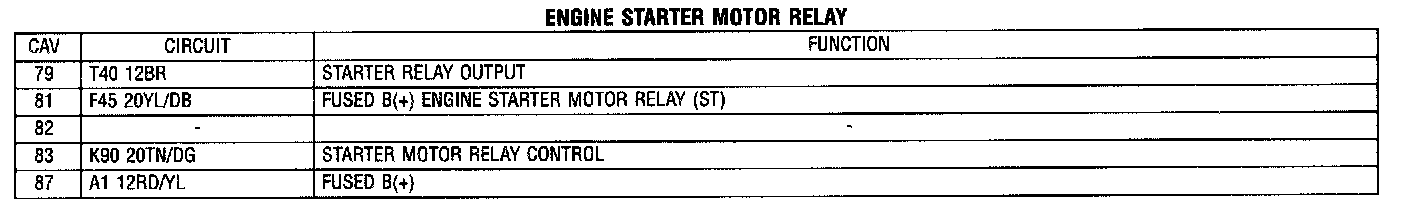

Engine Starter Motor Relay:

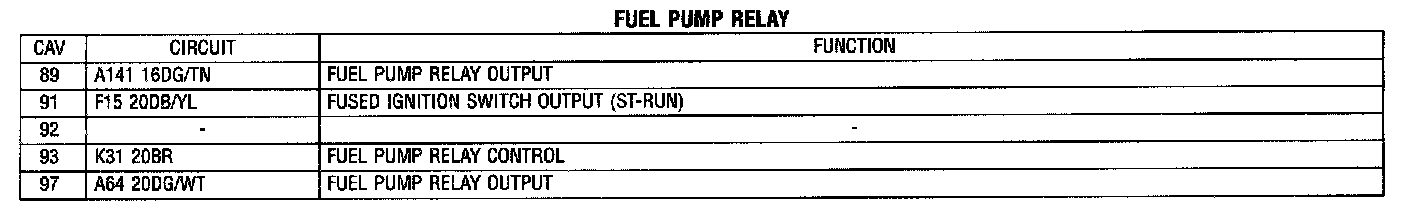

Fuel Pump Relay:

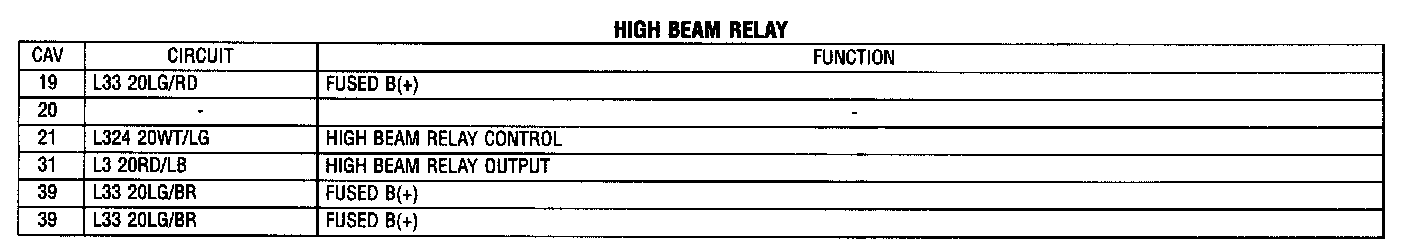

High Beam Relay:





High Speed Radiator Fan Relay:

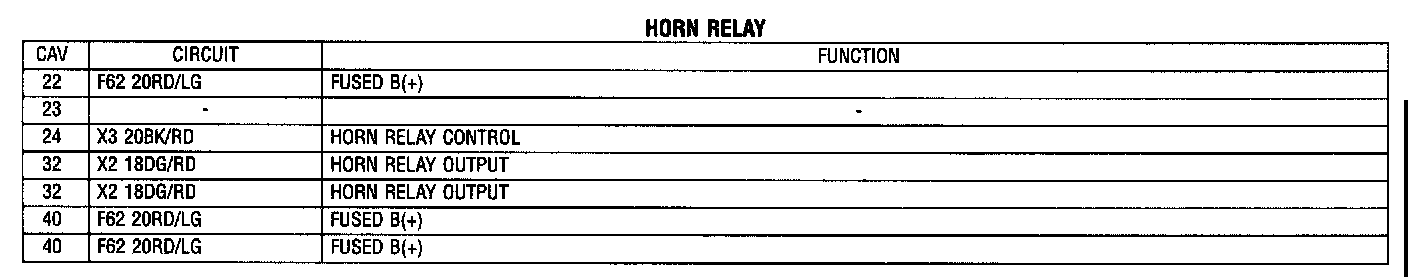

Horn Relay:

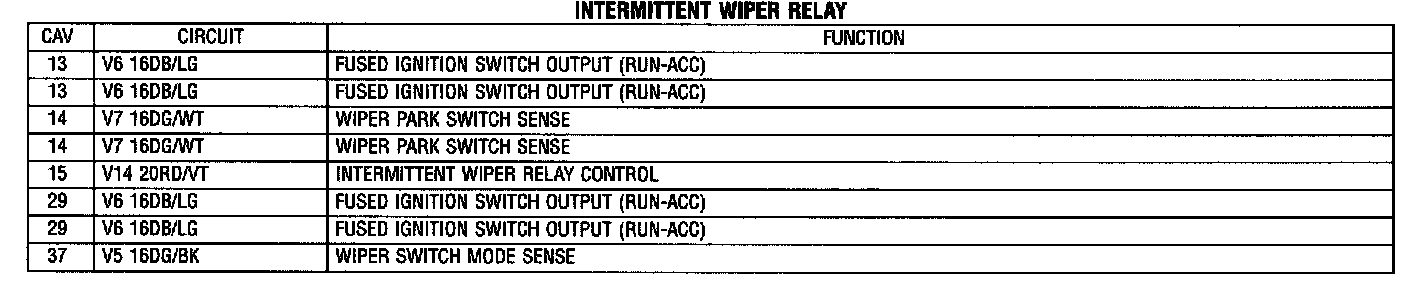

Intermittent Wiper Relay:





Lo Beam Relay:

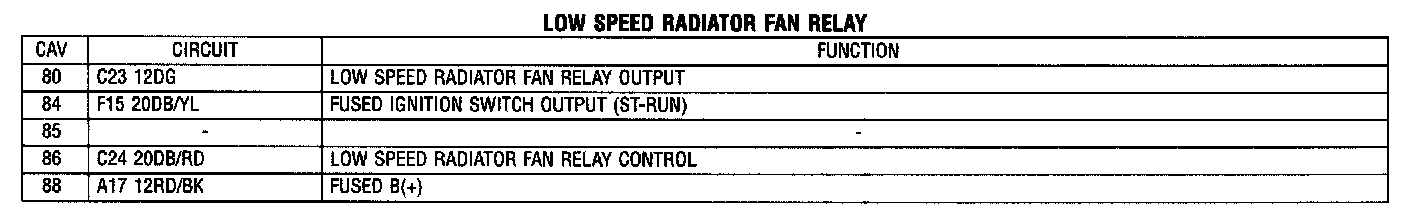

Low Speed Radiator Fan Relay:

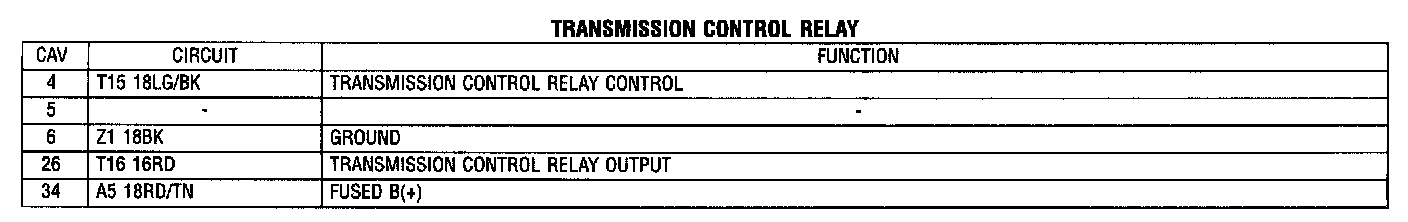

Transmission Control Relay:

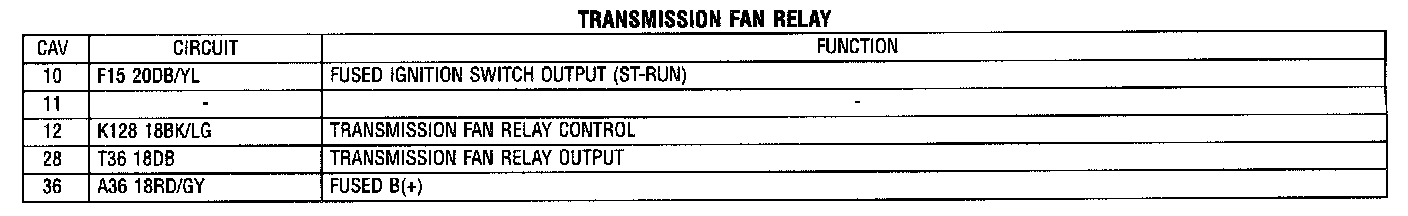

Transmission Fan Relay:
