Charging System Diagnostics

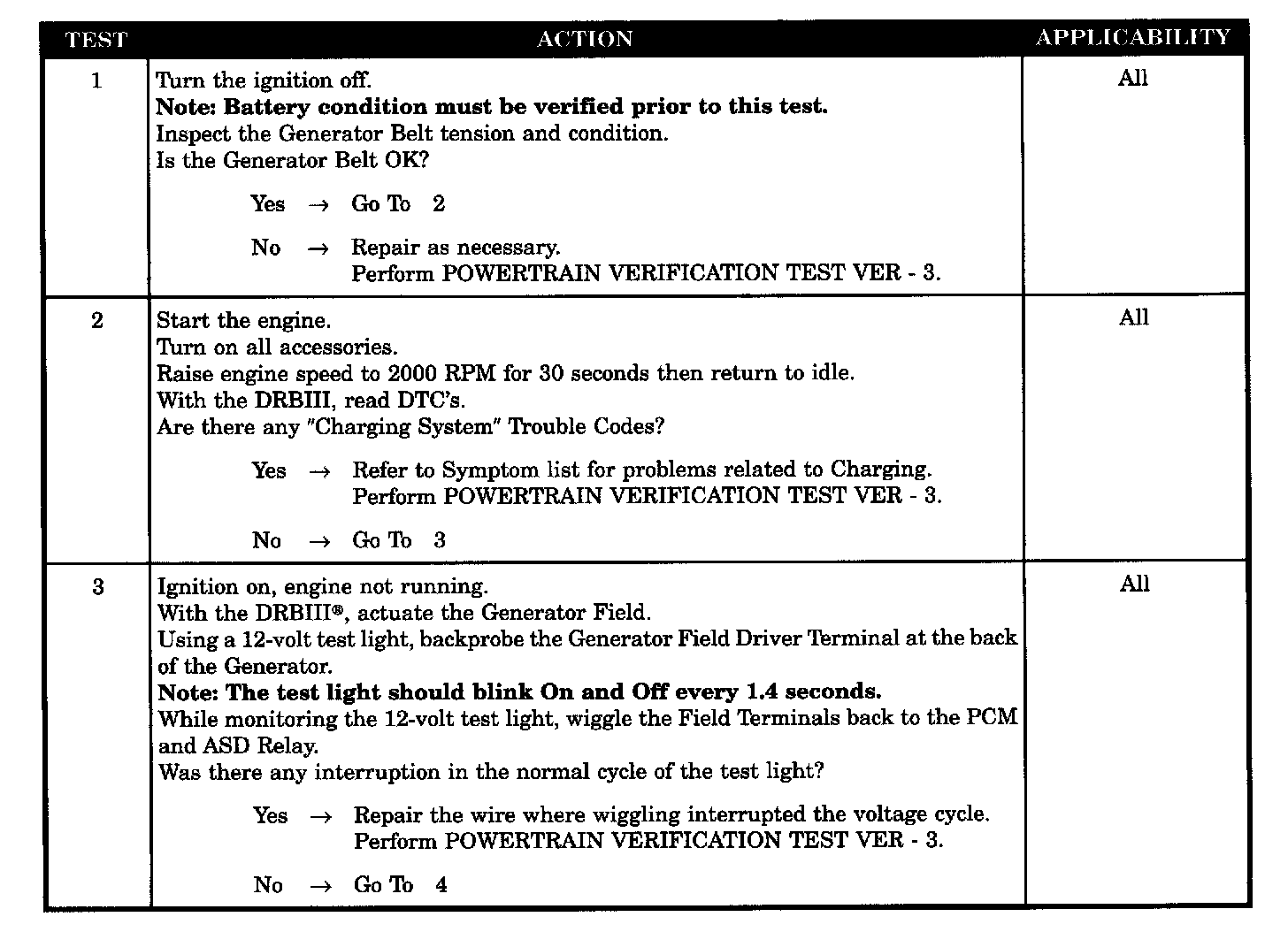

Tests 1 - 3:
Tests 4 - 8:

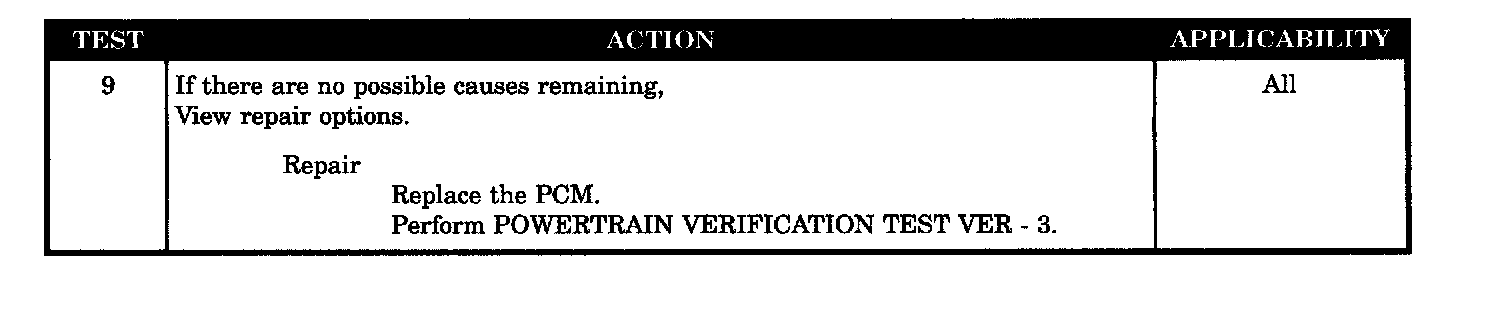

Test 9:
SYMPTOM Checking
charging system operation with no DTC'S present
POSSIBLE CAUSES -
B+ circuit high resistance
-
Generator ground high resistance
-
B+ circuit high resistance (
1.0 volt)
-
Generator belt observable problem
-
Generator field terminal intermittent problem
-
Trouble codes present
-
Trouble codes present
2000 rpm -
PCM (
charging system no code)
