Wiper Arm: Service and Repair
REMOVAL 1.
Place the
wiper arm/blades in the PARK position and turn ignition OFF.
2.
Remove the top cover from arm and remove nut.

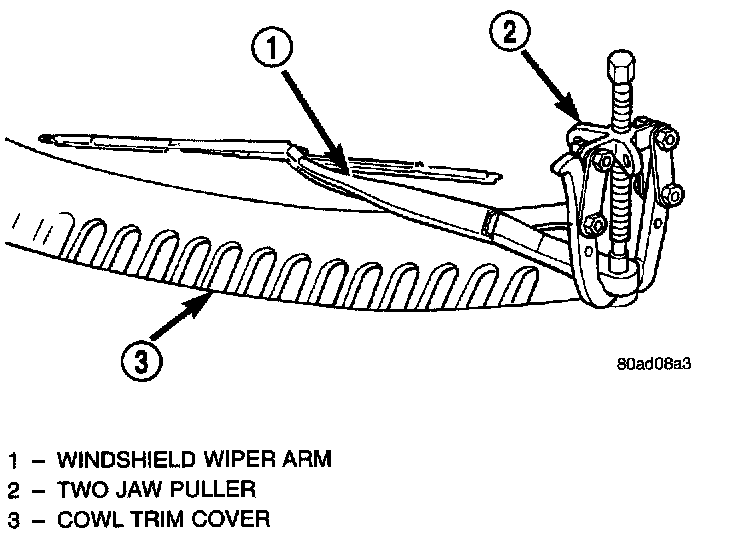

Wiper Arm Removal:
3.
Using a puller remove the
wiper arm from the pivot.
4.
Disconnect the washer hose at the plastic in-line connector. Be sure that the in-line connector is saved.
INSTALLATION For installation reverse the above procedures.
