Automatic Transmission/Transaxle

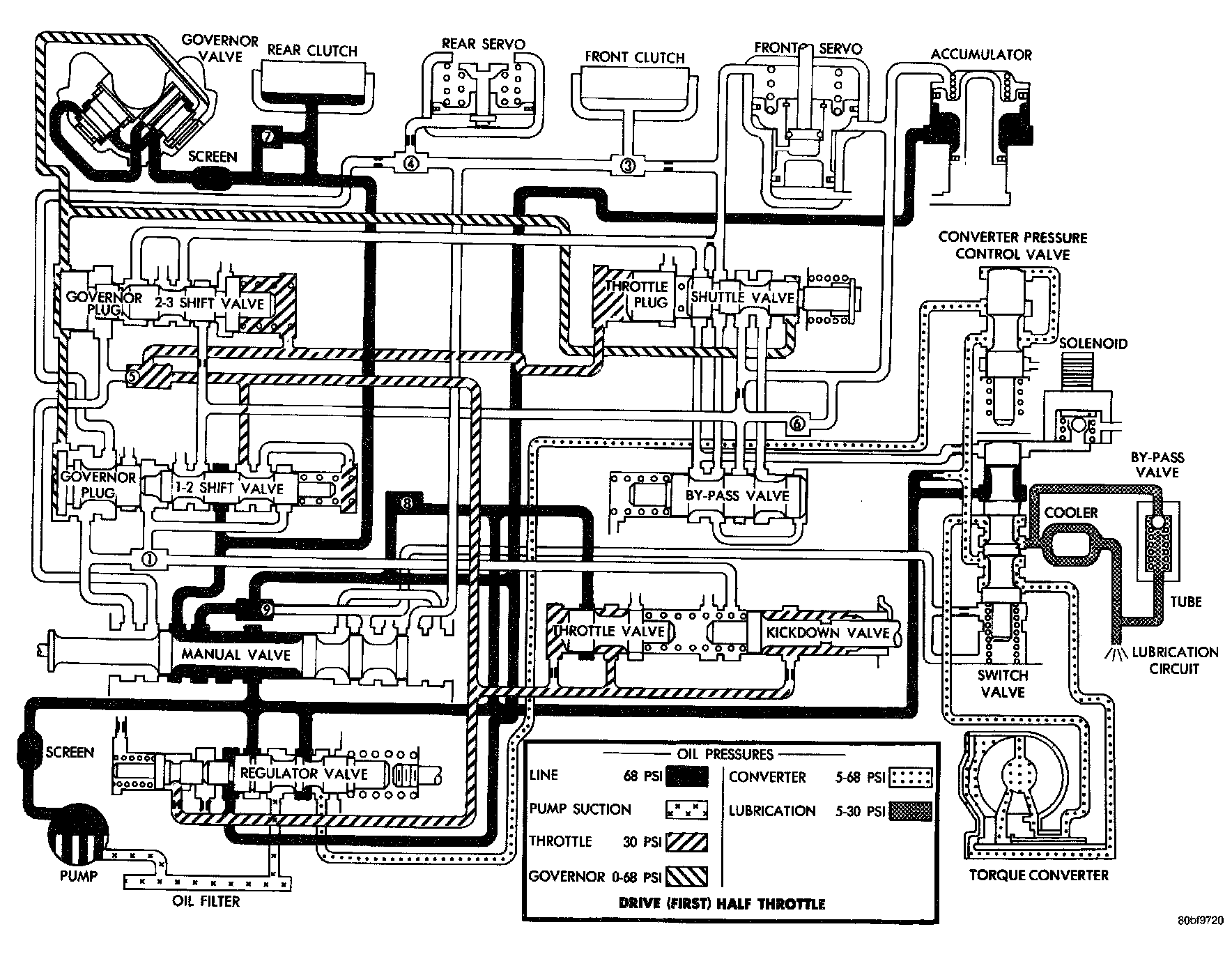

Drive (First) Half Throttle

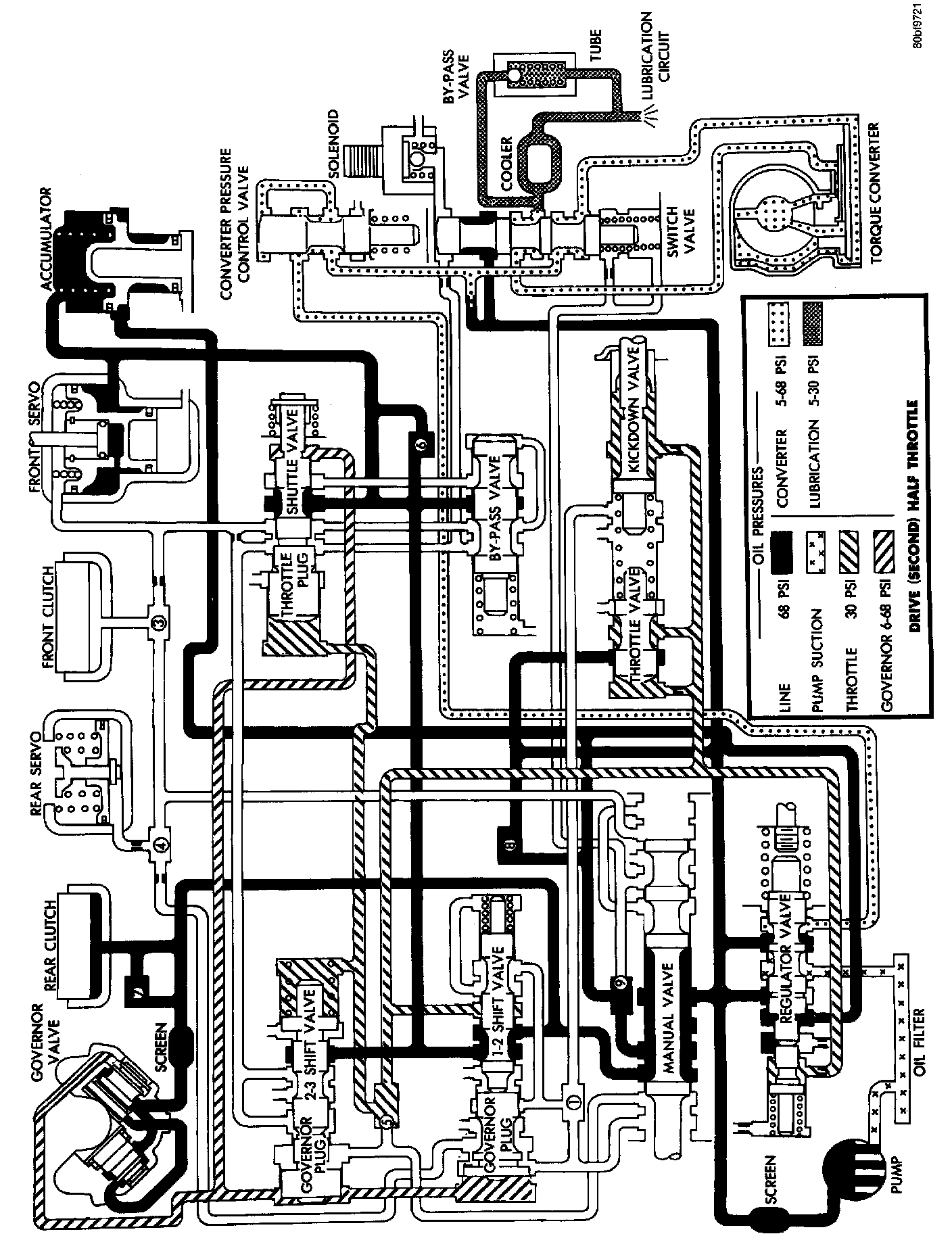

Drive (Second) Half Throttle

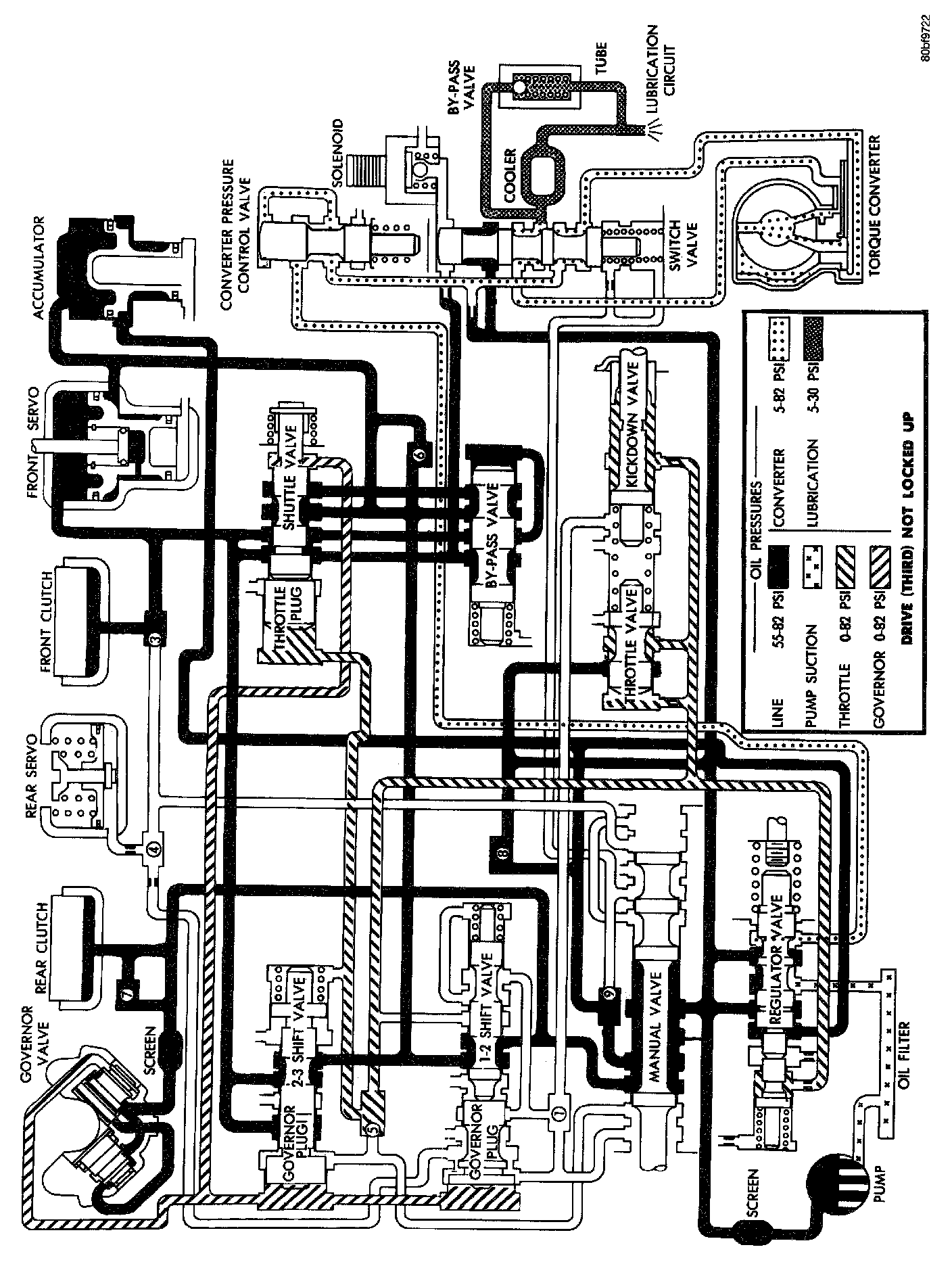

Drive (Third) Not Locked Up

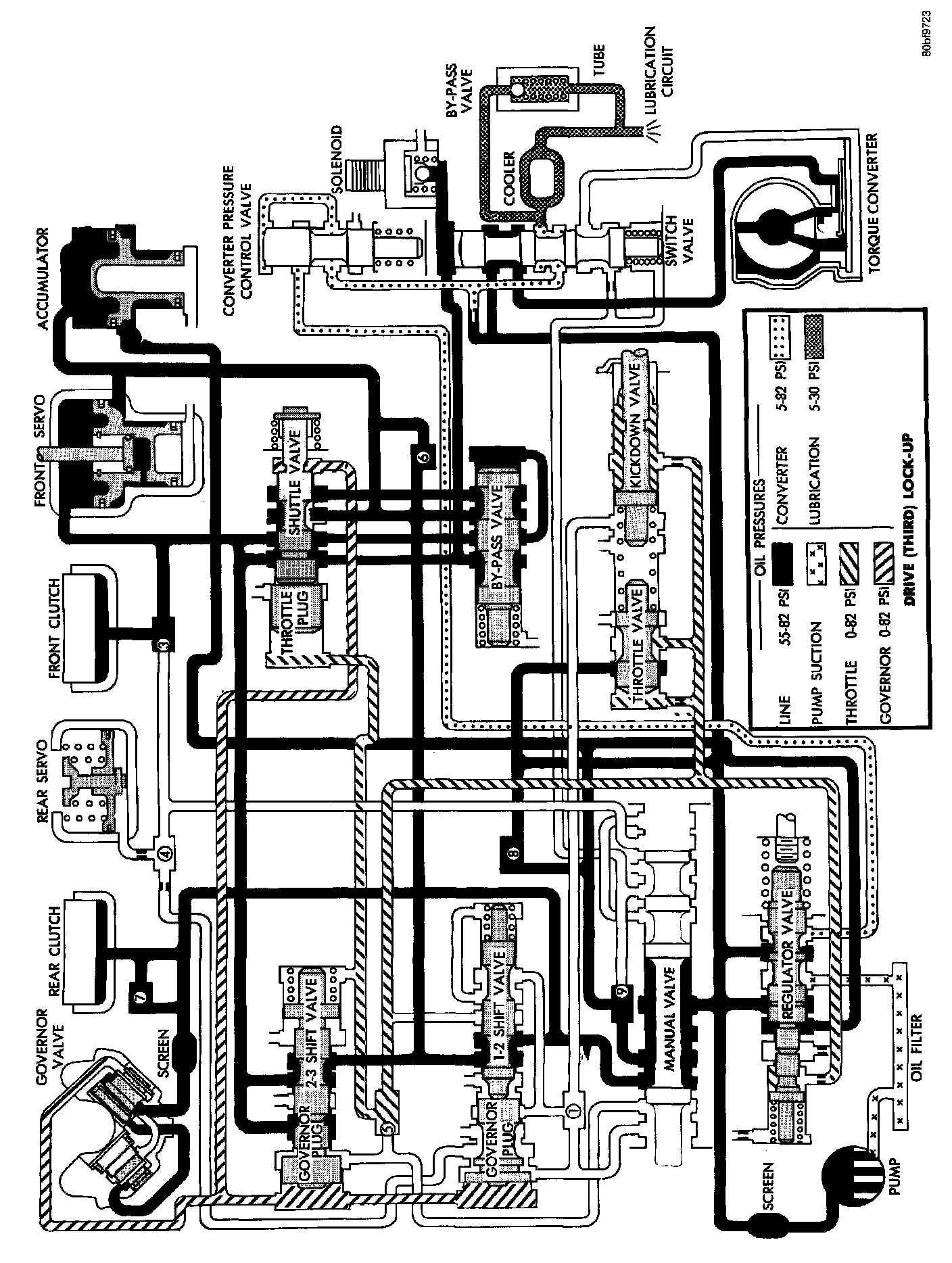

rive (Third) Locked Up

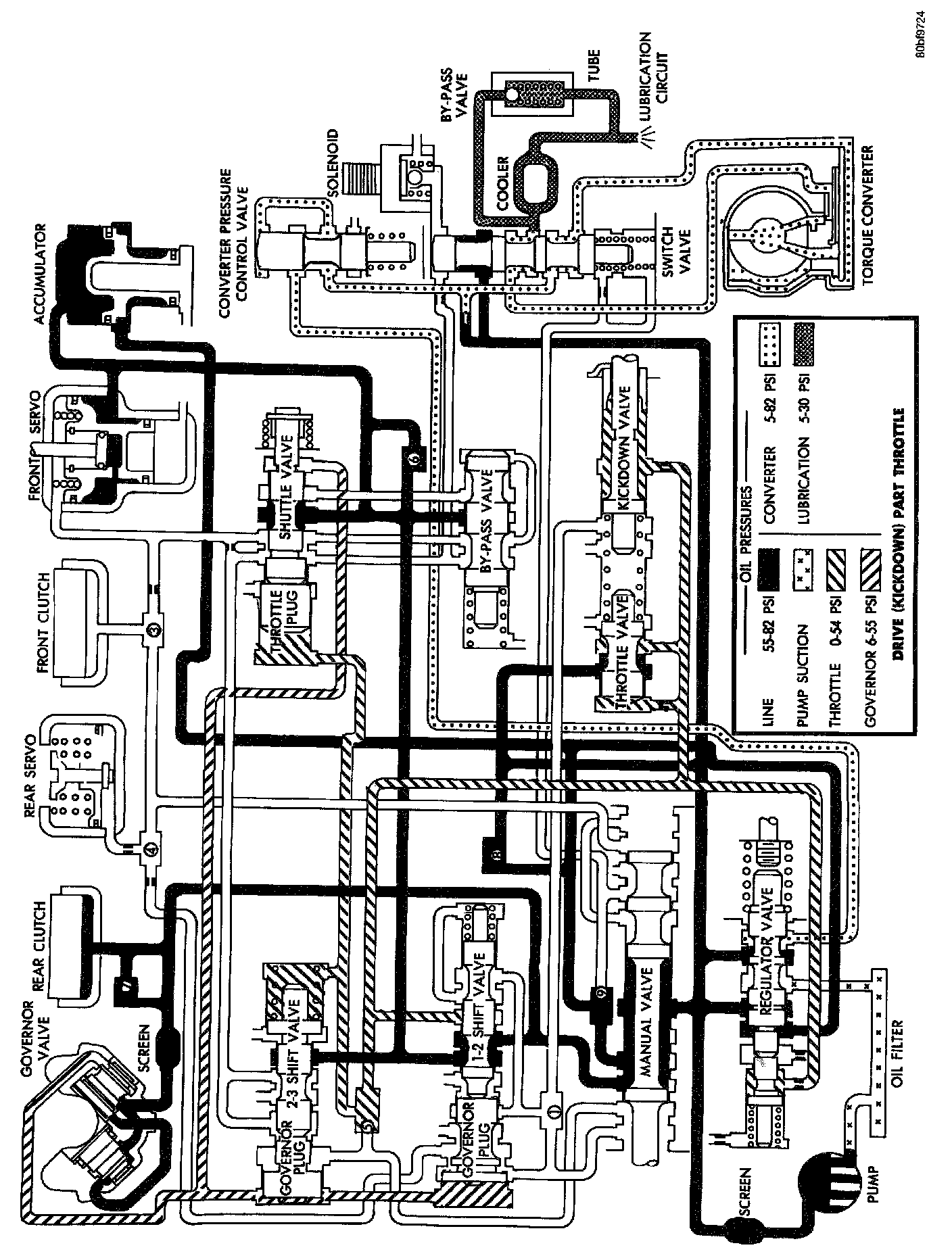

Drive (Kickdown) Part Throttle

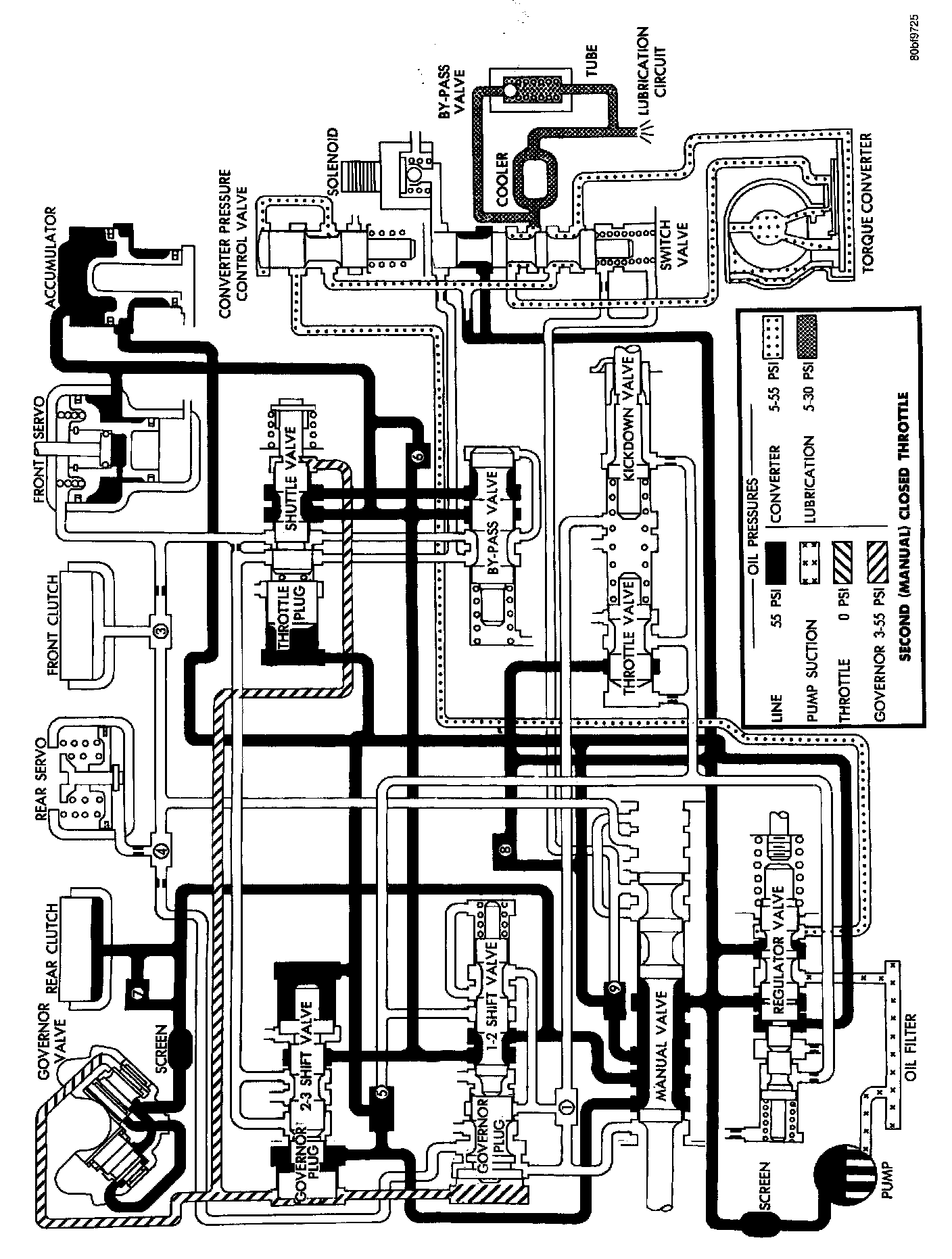

Second (Manual) Closed Throttle

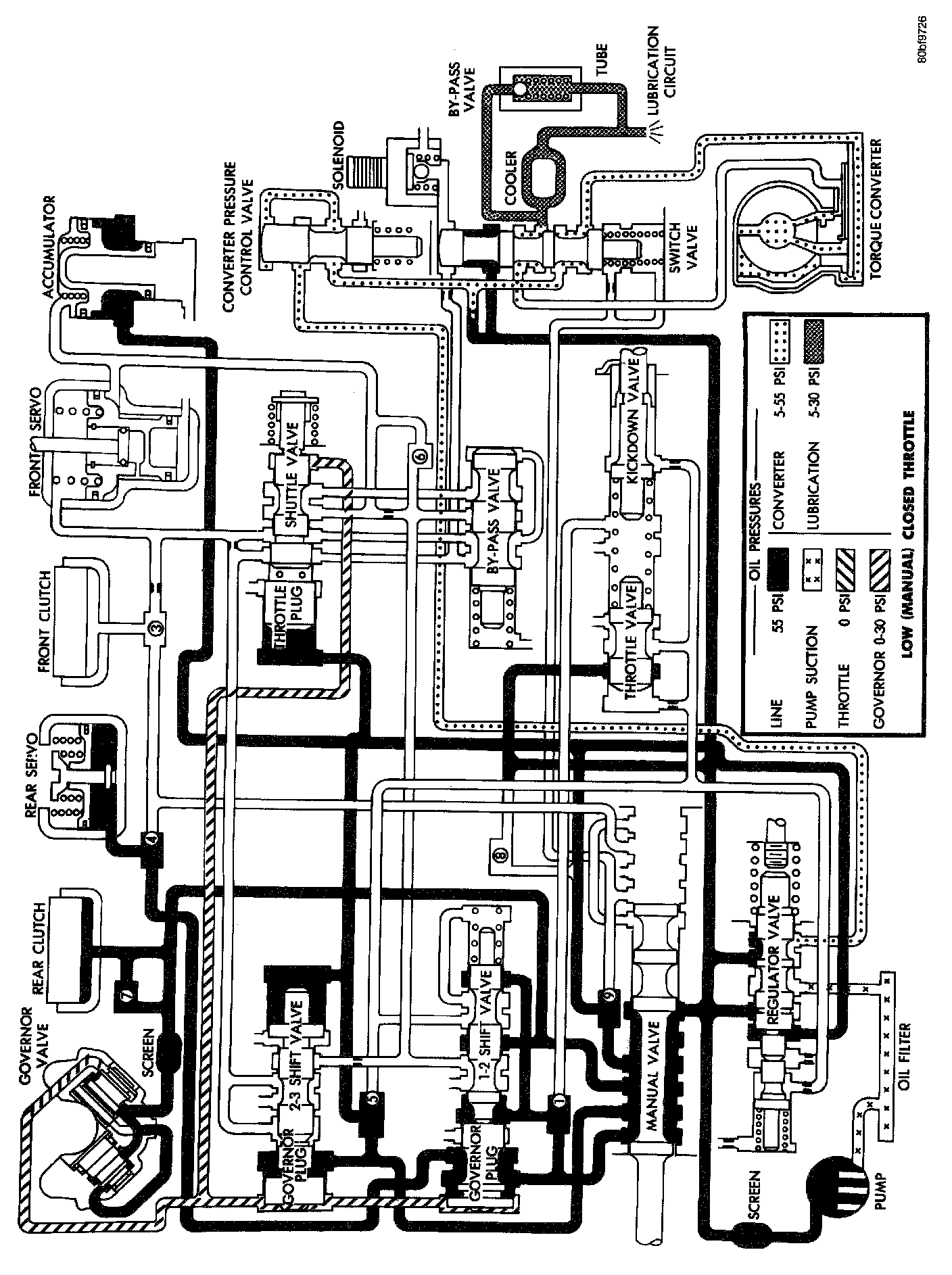

Low (Manual) Closed Throttle

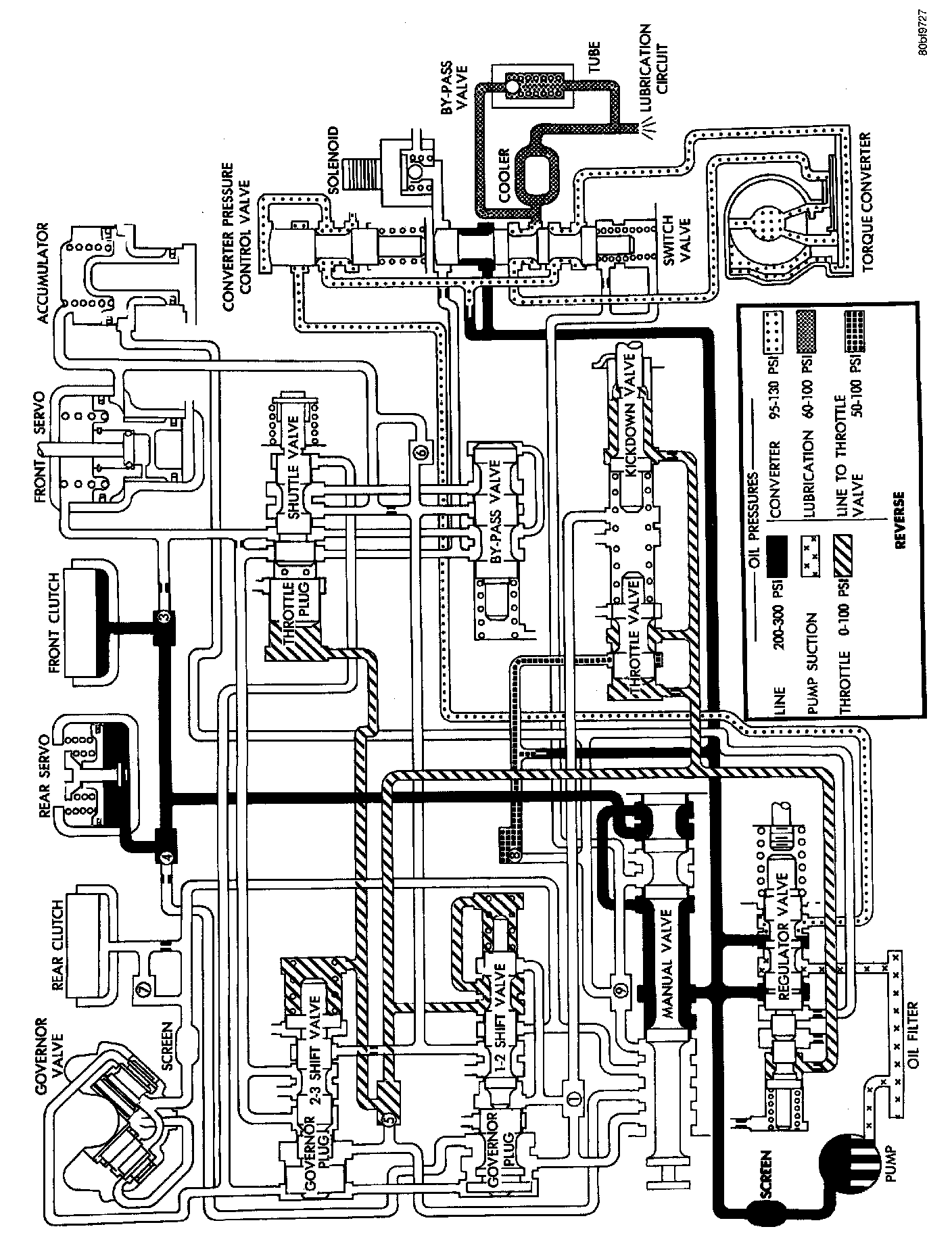

Reverse
