Alternator/Generator Belt

REMOVAL - GENERATOR/POWER STEERING BELT

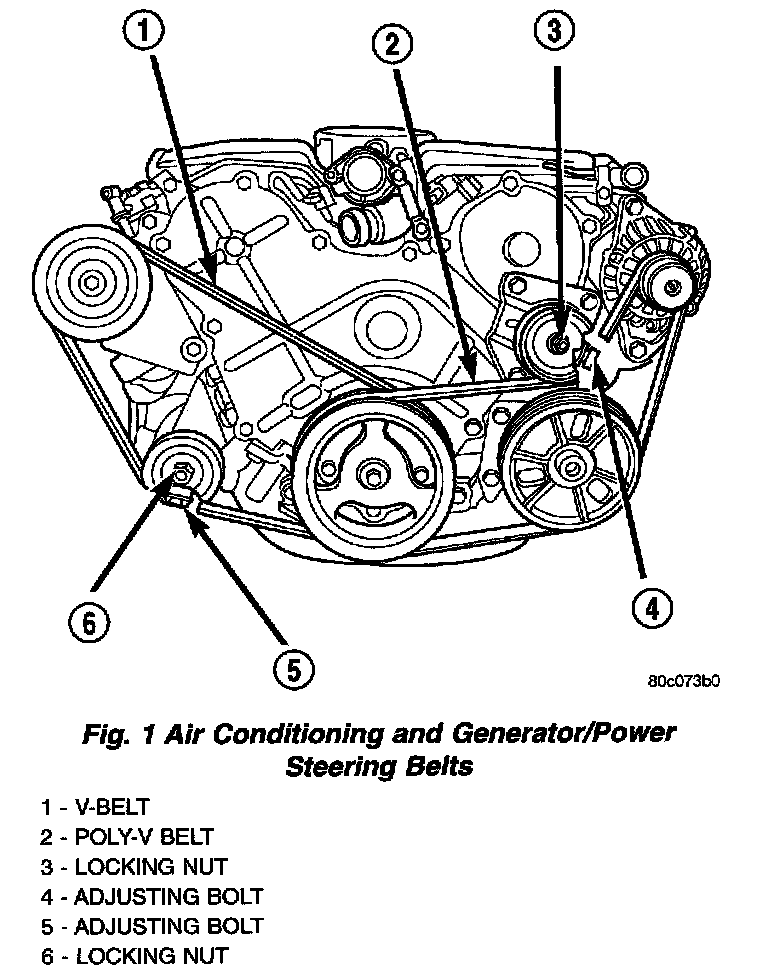

1. Loosen tensioner pulley locking nut (Fig. 1).
2. Loosen tensioner adjusting bolt until the accessory belt can be removed (Fig. 1).

INSTALLATION - GENERATOR/POWER STEERING BELT
1. Install generator/power steering belt over drive pulleys, with the back side of the belt against the tensioner pulley.

NOTE: Use Special Tool 7198, Belt Tension Gauge to obtain proper tension on belt.

2. Tighten adjusting bolt until the specified tension is obtained.
3. Tighten tensioner pulley locking nut to 54 Nm (40 ft. lbs.).
