Upstream Oxygen Sensor 1/1 Replacement

REMOVAL

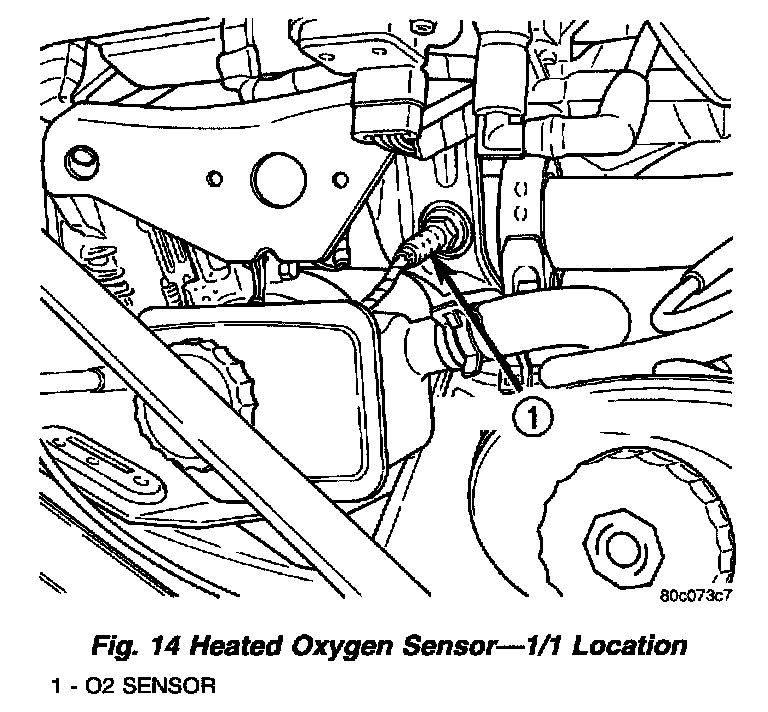

Fig. 14 Heated Oxygen Sensor - 1/1 Location:

The engine uses two upstream heated oxygen sensors, one in each exhaust manifold.

WARNING: THE EXHAUST MANIFOLD, EXHAUST PIPES AND CATALYTIC CONVERTER BECOME VERY HOT DURING ENGINE OPERATION. ALLOW ENGINE TO COOL BEFORE REMOVING OXYGEN SENSOR.

CAUTION: When disconnecting the sensor electrical connector, do not pull directly on wire going into sensor.

1. Disconnect the heated oxygen sensor electrical connector.

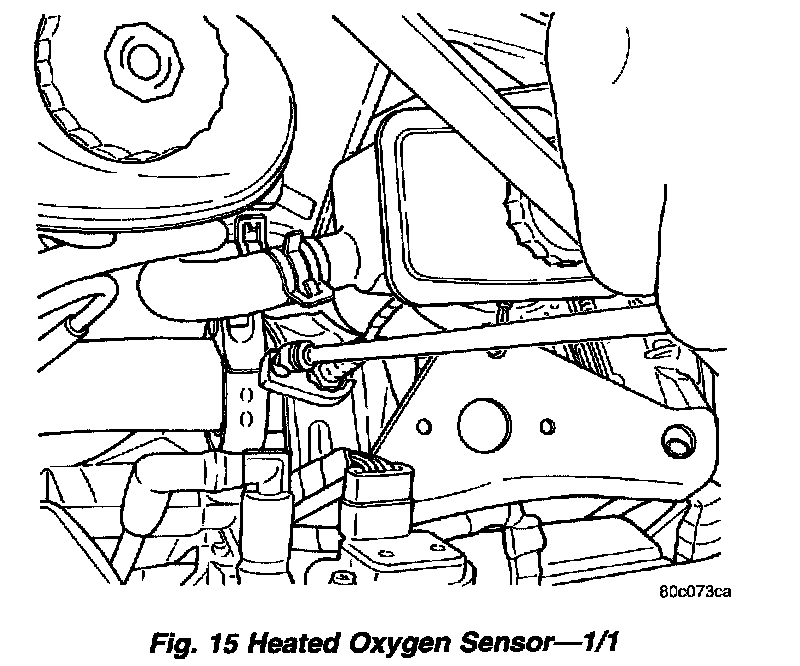

Fig. 15 Heated Oxygen Sensor - 1/1:

2. Use a socket such as Snap-On YA8875 or Special tool C4907A to remove oxygen sensor.

INSTALLATION
1. After removing the sensor, the exhaust manifold threads must be cleaned with an 18 mm X 1.5 + 6E tap. If reusing the original sensor, coat the sensor threads with an anti-seize compound such as Loctite 771-64 or equivalent. New sensors have compound on the threads and do not require an additional coating. Tighten the sensor to 28 Nm (20 ft. lbs.) torque.
2. Connect the heated oxygen sensor electrical connector.
