THM 125C Transaxle Identification Information

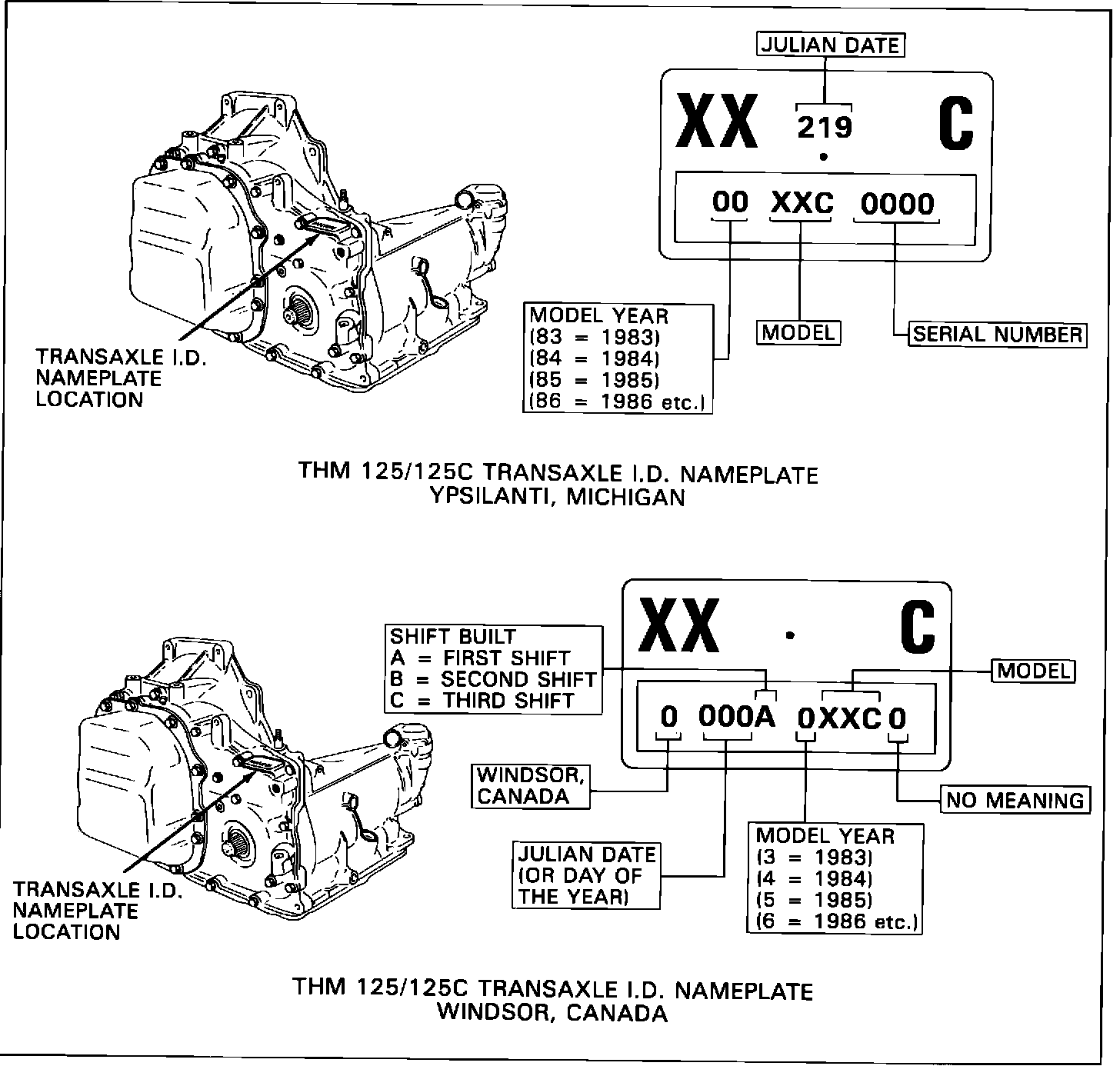

Figure 5 - THM 125C Transaxle Identification Information:

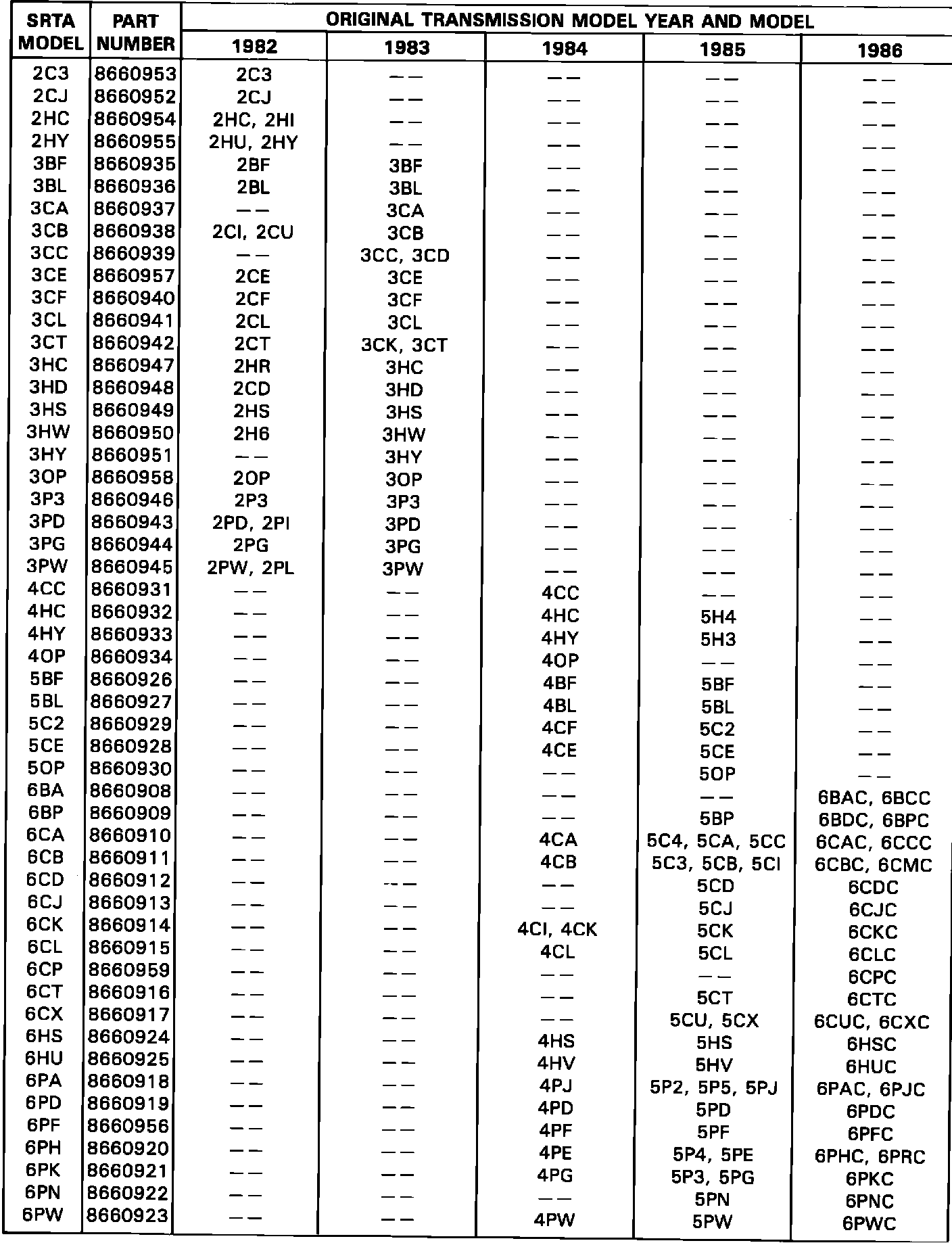

Figure 6 - THM 125C SRTA Model Replacement Chart:




The 125C transaxle identification information and the SRTA model replacement chart (refer to page 8) will assist in selecting the correct SRTA unit to order from your local Parts Distribution Center.
NOTE: Part numbers are accurate at time of printing and subject to change. Refer to the latest GMSPO Parts Catalog for part numbers of SRTA models listed.
