A/C Wiring Diagram (Compressor Circuits) W/F.I.

Compressor Circuits:

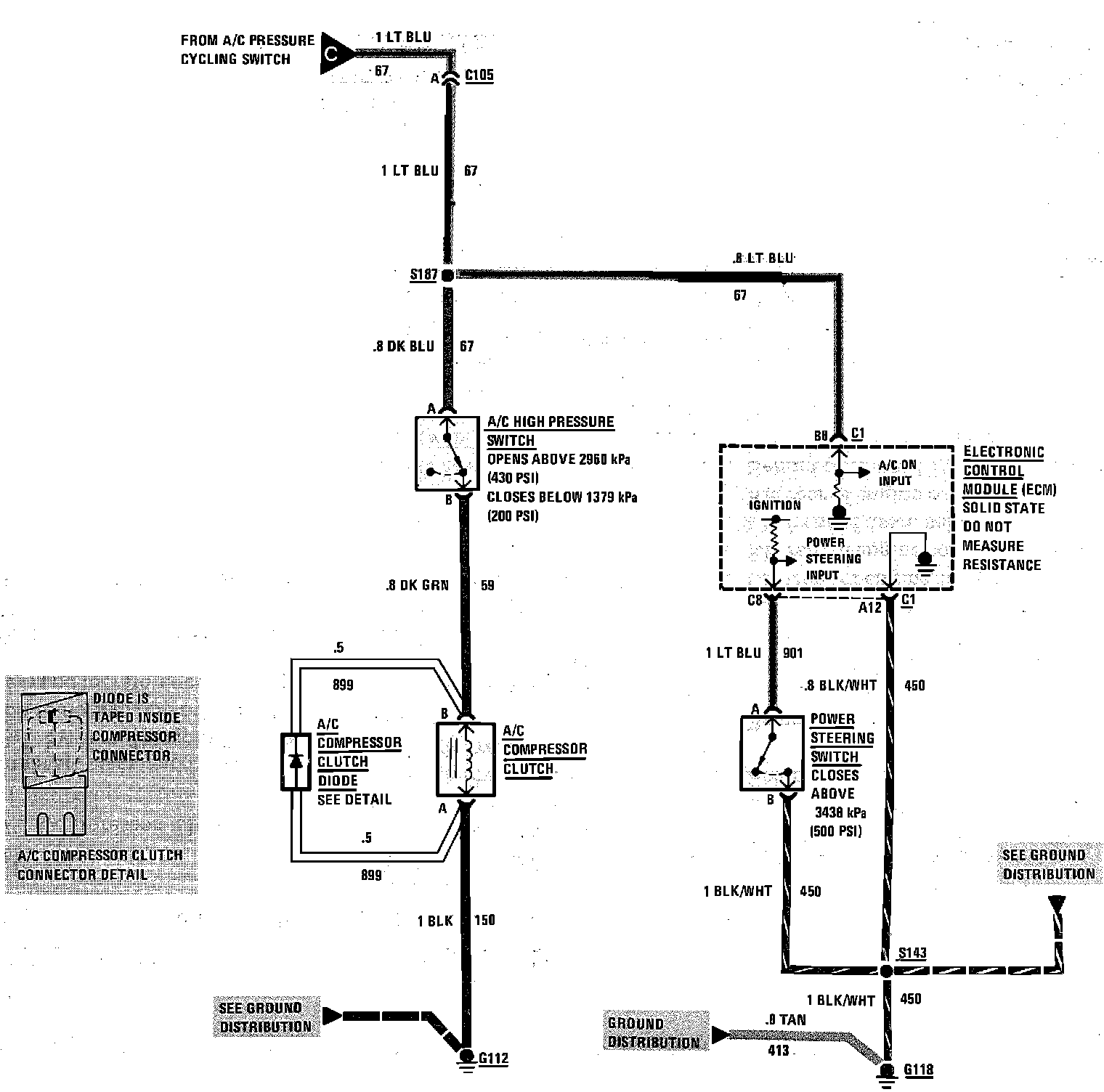

A/C Conditioning System Wiring Circuit (Compressor Circuits):
