Operation CHARM
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
1988
>>
Firebird V8-305 5.0L VIN E TBI
>>
Repair and Diagnosis
>>
Diagrams
>>

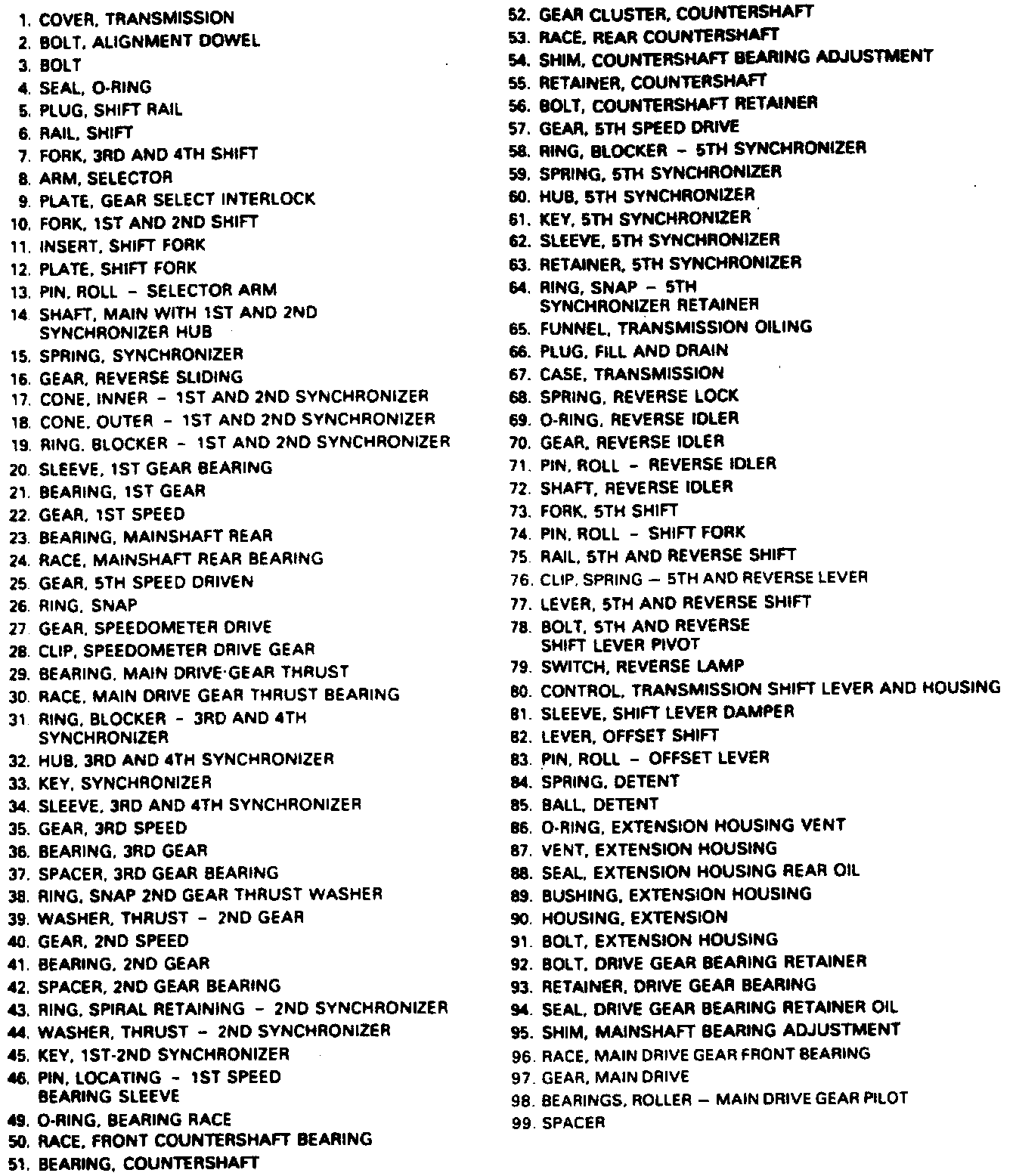

Exploded Views
>>
Manual Transmission/Transaxle
>>
Warner TS/T50D (77mm)
Warner TS/T50D (77mm)
