Installation

For additional information see Notes, Warnings, and Hints. Fundamentals and Basics

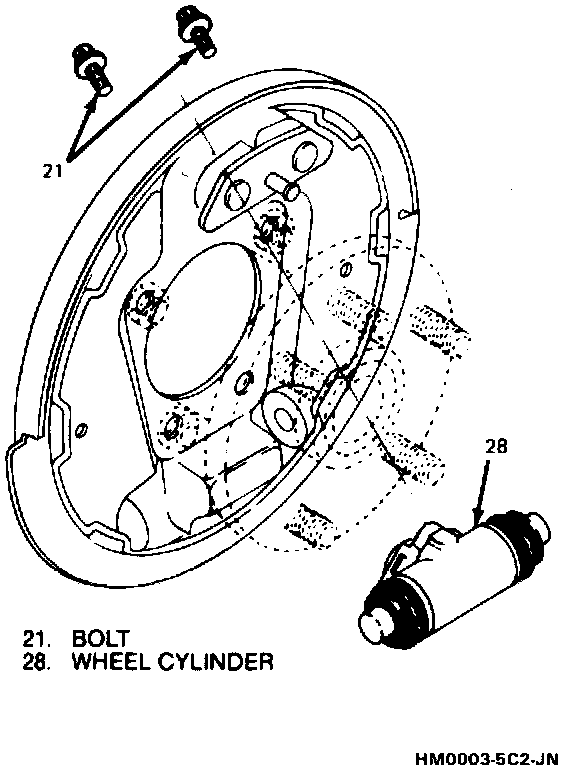

Wheel Cylinder:

Rear Brake Pipes And Hoses:

- Position wheel cylinder assembly and hold in place with wooden block between cylinder and axle flange.
- Install bolts and torque to 2O Nm (l5 lbs. ft.) using a #6 torx socket.
- Install inlet line and torque tube nut to 17 Nm (12 Ibs. ft.).
- Bleed wheel cylinder. Service and Repair
