Upper Pinion Bushing and Pinion Shaft Seal

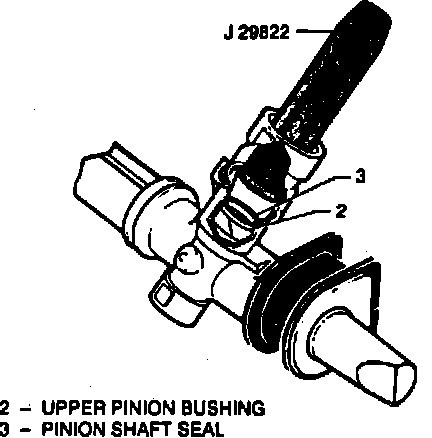

Fig. 24 Pinion Shaft Seal & Bushing Removal:

1. Remove upper pinion bushing and seal with a hearty punch, and install new bushing, Fig. 24.
2. Using pinion seal installer, tool No.J 29822 seat new seal in housing with seal tip facing up.
