Rear Suspension

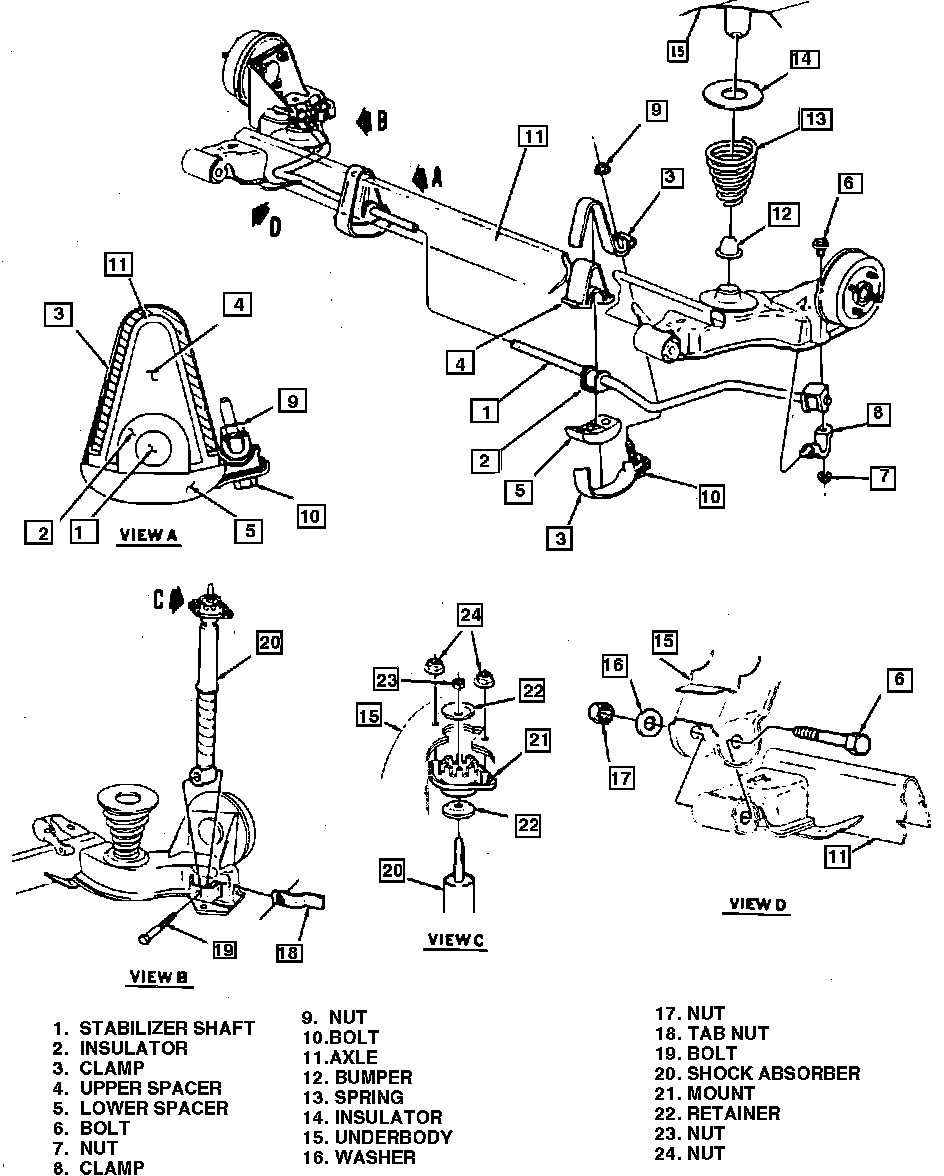

Fig. 1 Rear Suspension. 1989-91:

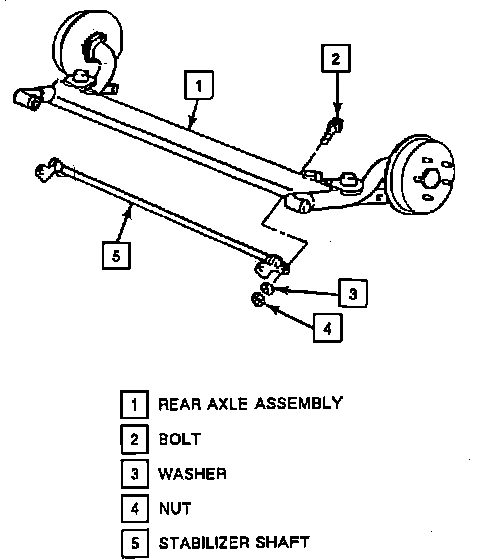

Fig. 3 Stabilizer Bar Attachments. 1992:

1. Raise and support vehicle. Support vehicle body with jack stands.
2. Remove stabilizer bar attachments to axle and control arms, then remove stabilizer bar, Figs. 1 and 3.
3. Reverse procedure to install.
