Heater And A/C Evaporator Module:
Heater & Evaporator Module:

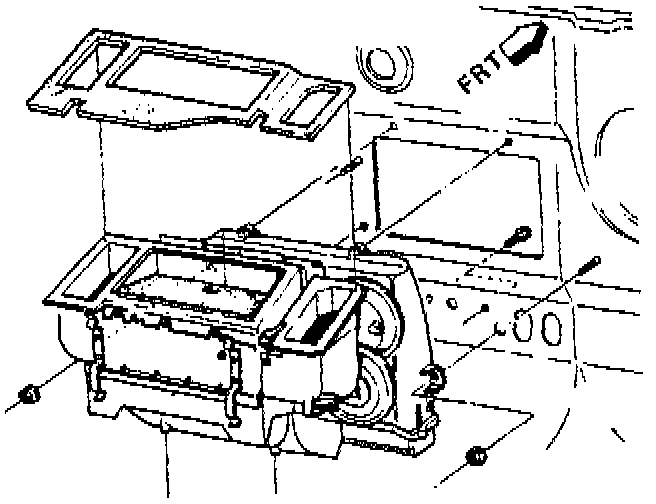

Heater And Evaporator Module Legend (2 Of 2):
REMOVE OR DISCONNECT 1.
Drain
cooling system.
2.
Hoist vehicle.
3.
Heater hoses at core.
4.
Drain tube.
5.
Lower vehicle.
6.
Right and left sound insulator.
7.
Floor air outlet duct and hoses.
8.
Heater core cover.
9.
Heater core.
