A/C - Charging Capacities Chart
90pont14
Bulletin Number:
90-1-11
Reference Number:
081201
Publish Date:
4/90
Subject:
A/C R-12 CHARGING CAPACITIES
Models
Affected:
ALL 1985-90 PONTIAC VEHICLES

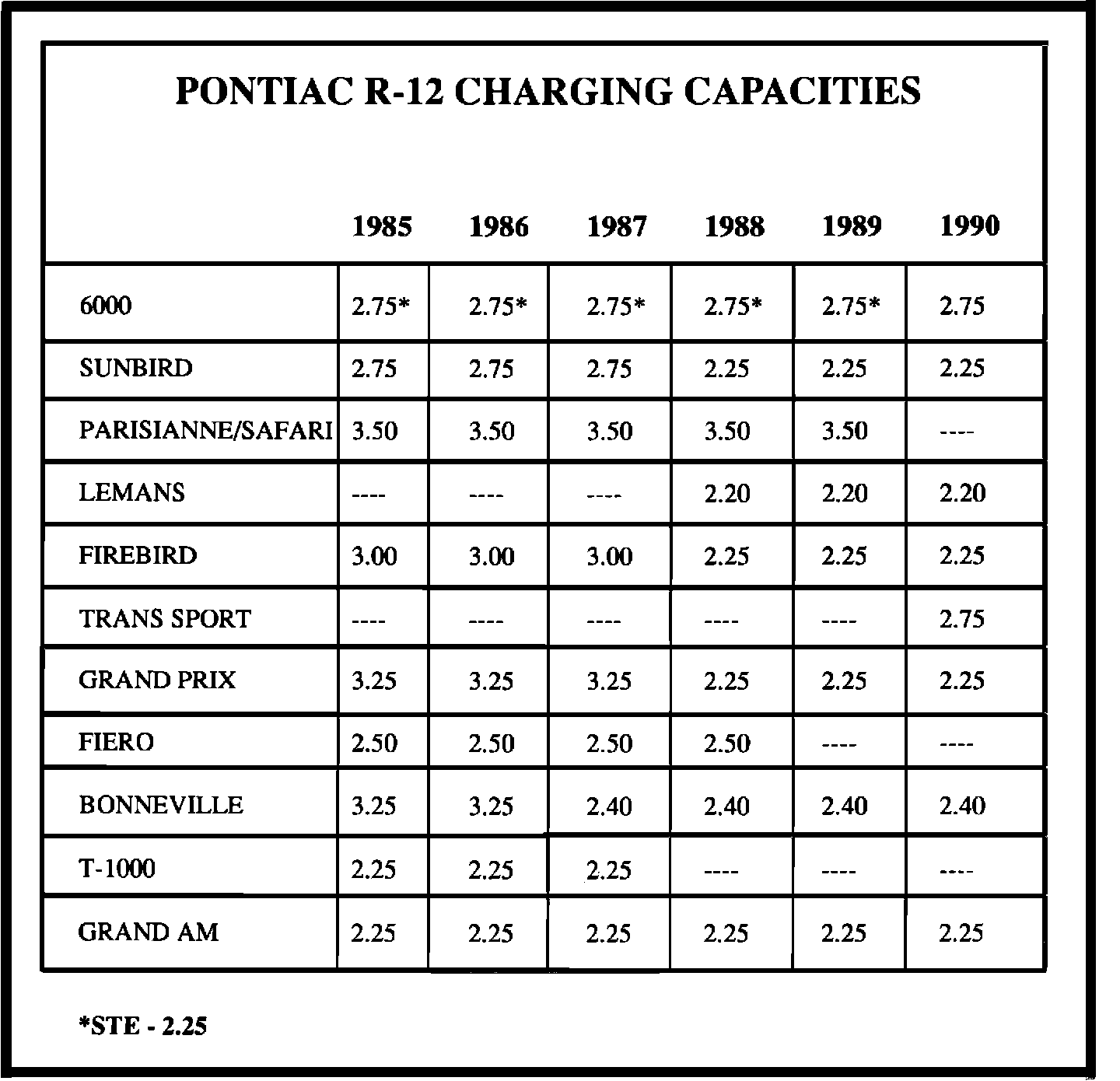

The following figure contains R-12 charging capacities for 1985 thru 1990 Pontiac vehicles. Keeping a copy in the area of the charging station should save time and eliminate conditions resulting from over or under charging.
