Power Door Lock Switch: Service and Repair
Remove or Disconnect 1.

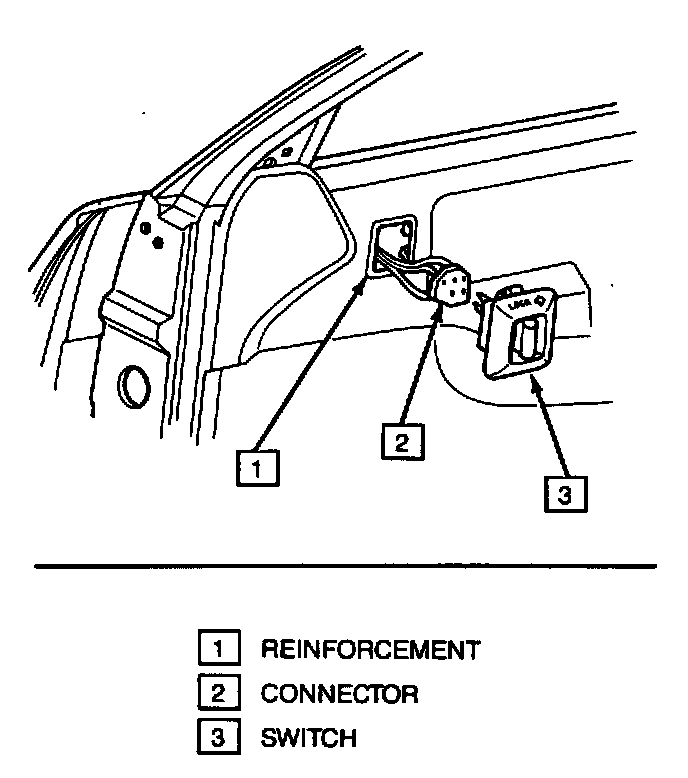

Release switch spring clip from trim panel by inserting a thin bladed tool between top of switch and trim panel reinforcement (1) and remove switch (3).
2.
Wiring connector (2) from switch.
Install or Connect 1.
Wiring connector to switch (3).
2.
Align switch (3) to trim panel and push to lock switch into position.
