A/C Compressor Refrigerant Pressure Sensor

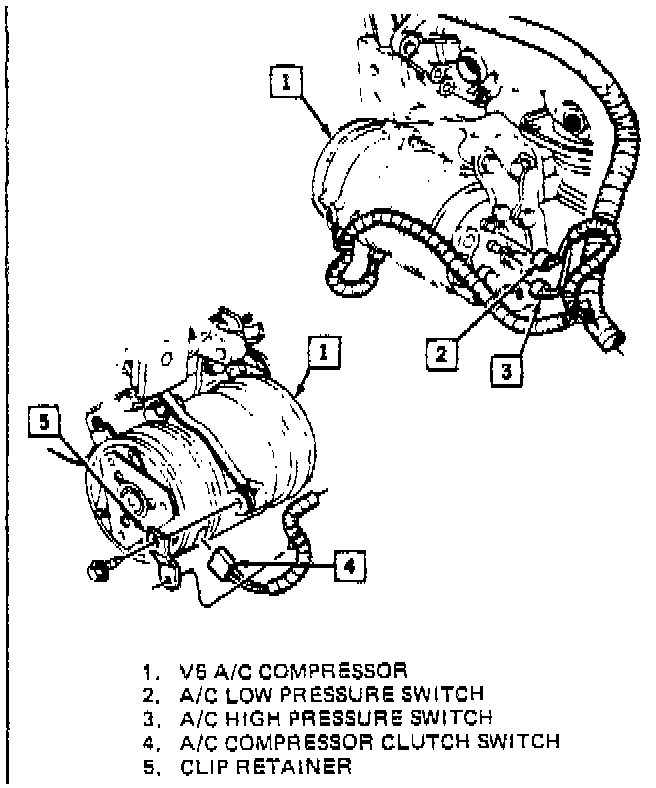

Compressor Switch Wiring - 2.5L (VIN U):

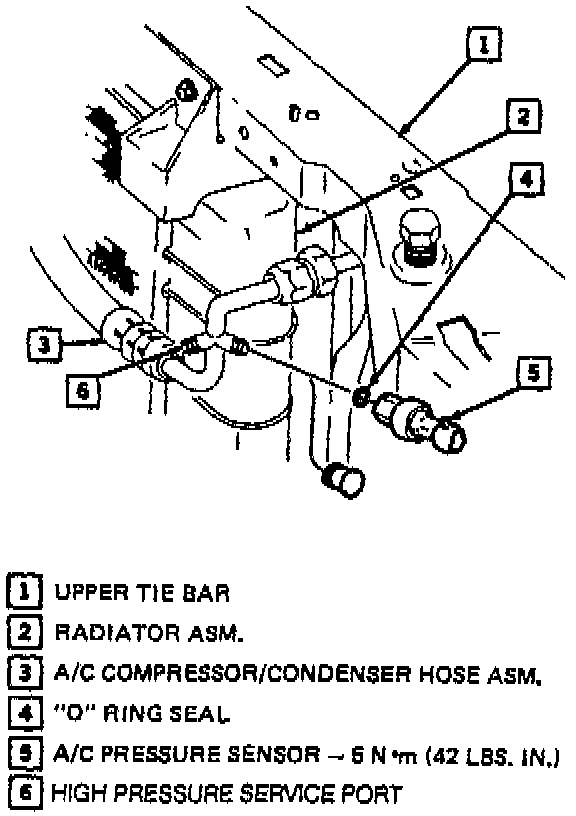

A/C Pressure Sensor:
