Afterblow Module Input/Output

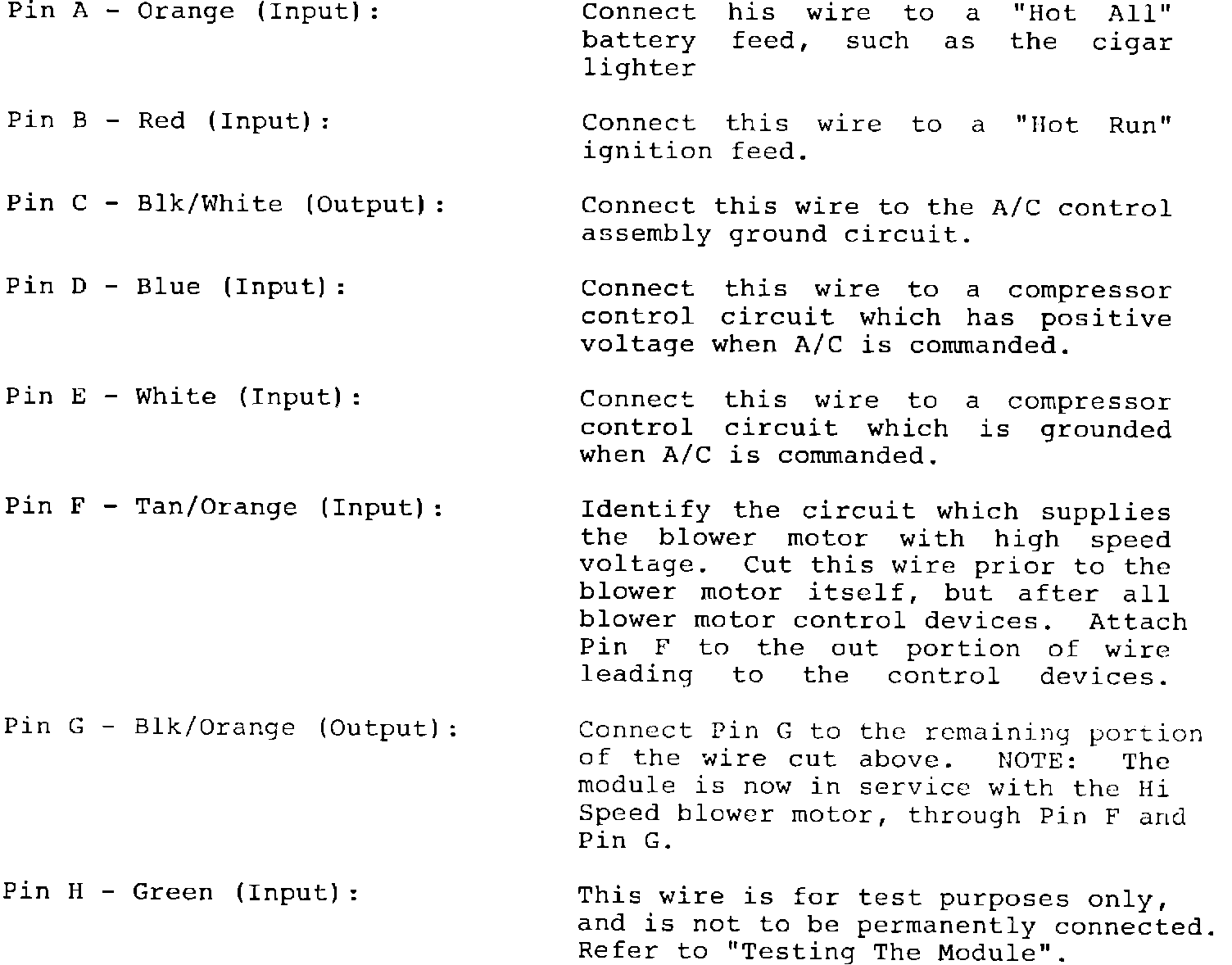

Each afterblow module (P/N # 25533406) is shipped with an instruction sheet. It contains limited instructions for specific systems as well as a Pin/Wire Color reference chart. The requirements for each pin are as follows:
