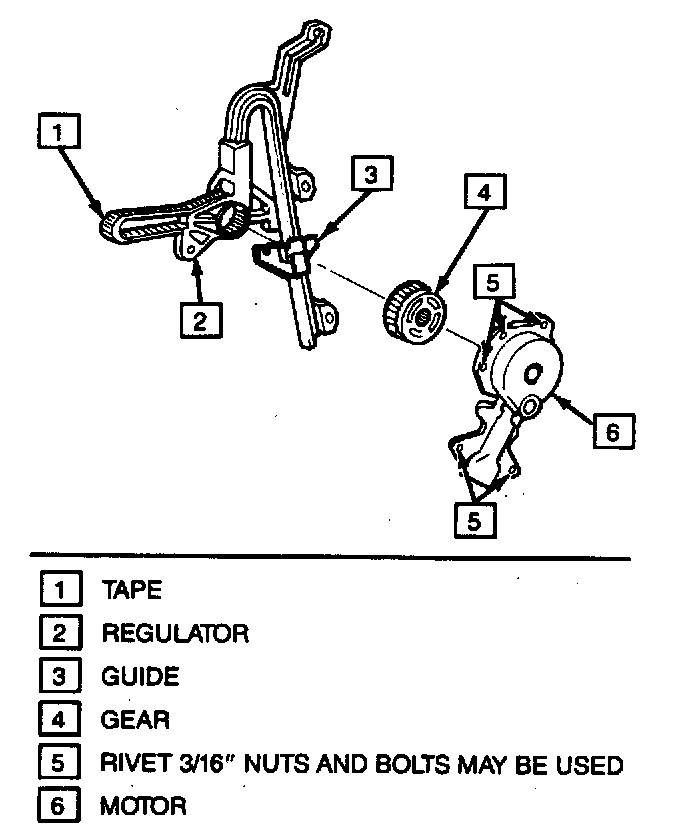

Regulator Motor

Remove or Disconnect

1. Regulator from door.
2. Motor from regulator using 3/16" drill bit.

Install or Connect

1. Motor to regulator using 3/16" rivets (nuts and bolts may be used).
2. Window regulator.
