Window Regulator Handle

Remove or Disconnect

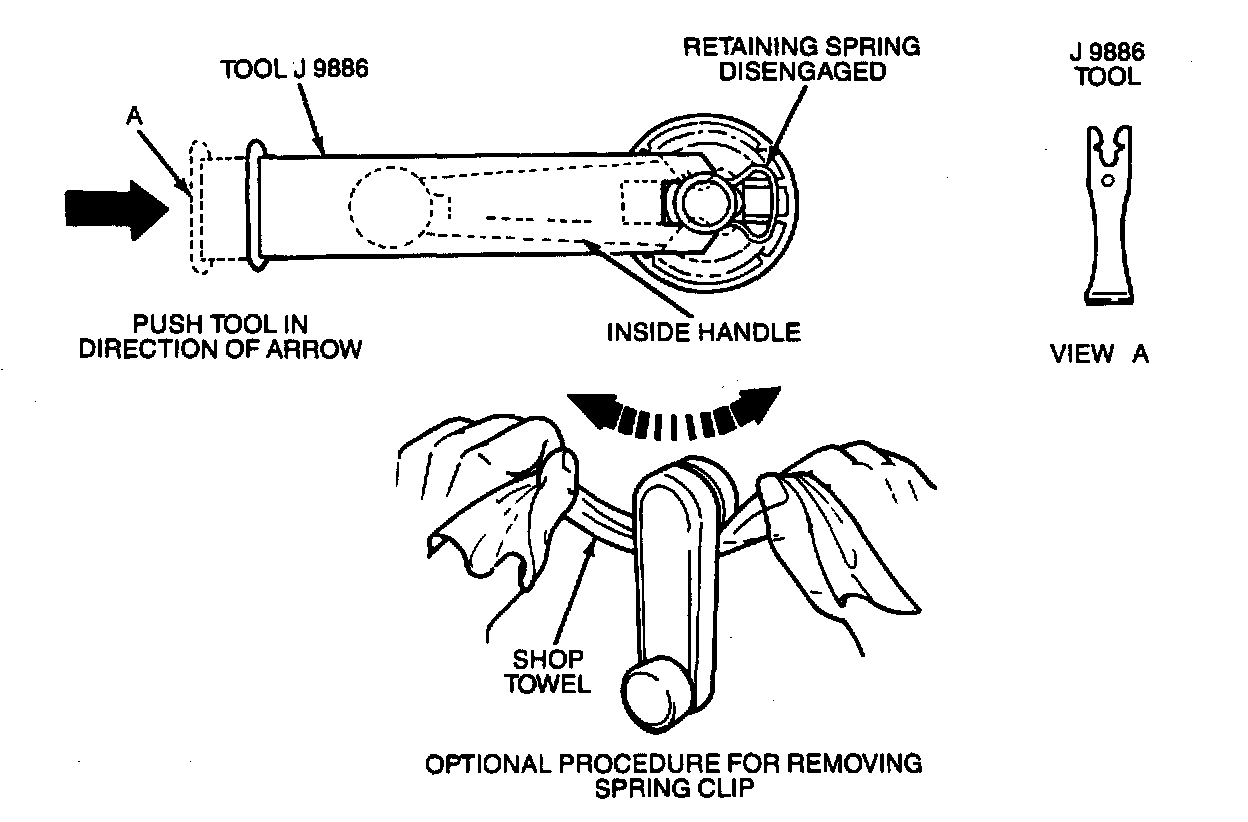

Spring Clip Tool J 9886:

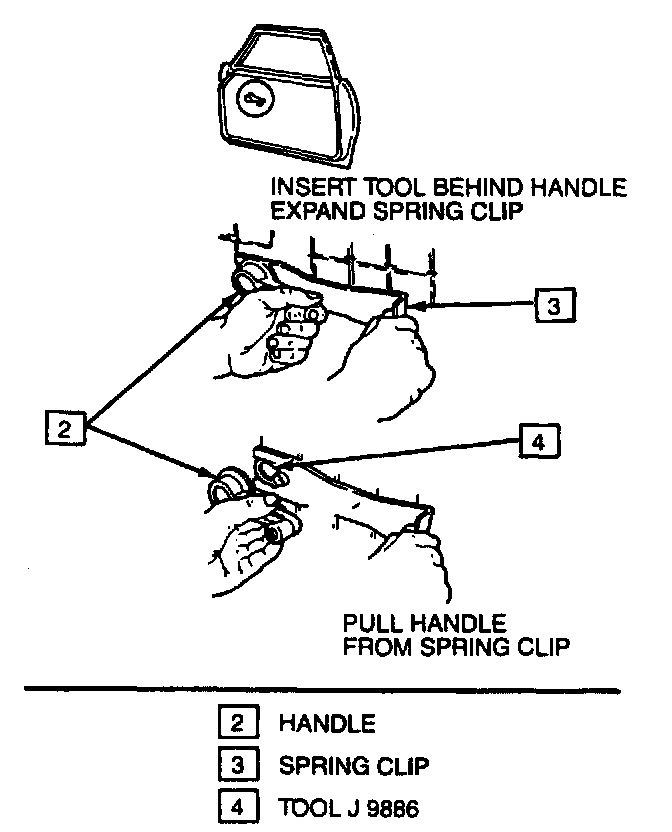

Releasing Window Regulator Handle Spring Clip:

1. Spring clip (3) by inserting tool J 9886 between handle and trim panel).
2. Handle (2).

Install or Connect

Important
^ Glass must be in the full up position.

1. Clips (3) to handle (2).

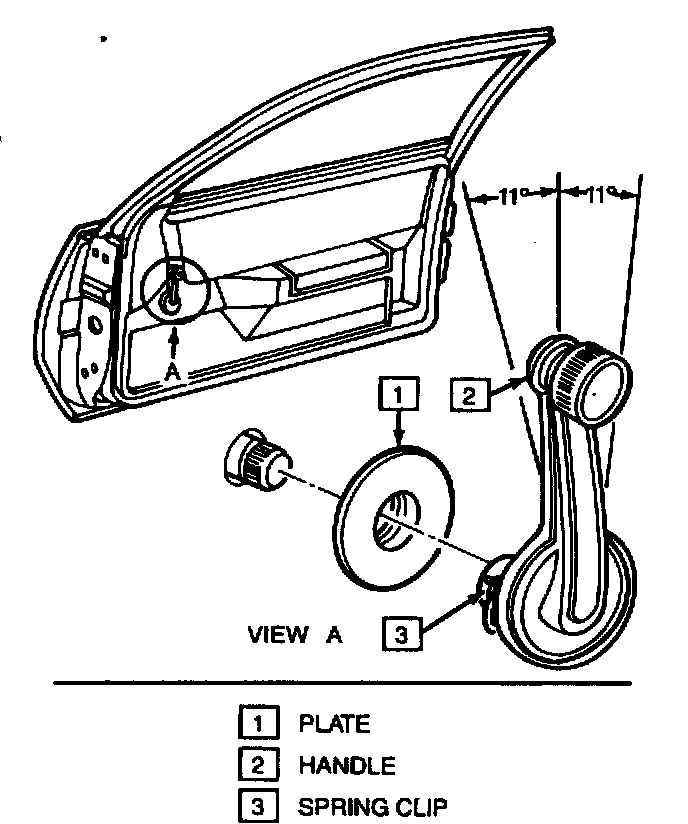

Window Regulator Handle:

2. Handle to spindle by positioning handle as shown in the illustration and pressing handle until clip engages regulator spindle.
