Turn Signal Switch
>>
Diagrams
Turn Signal Switch: Diagrams

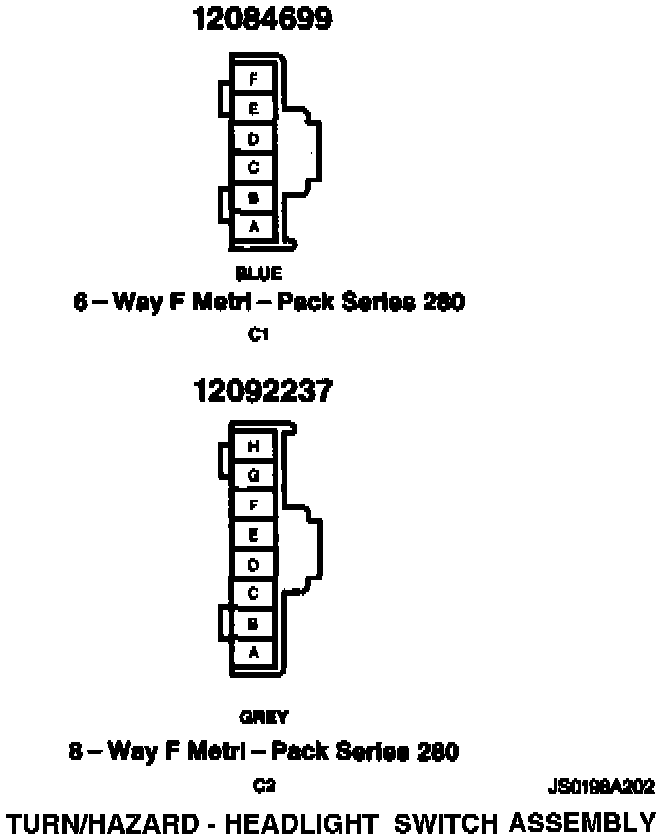

Turn/Hazard - Headlight Switch Assembly:

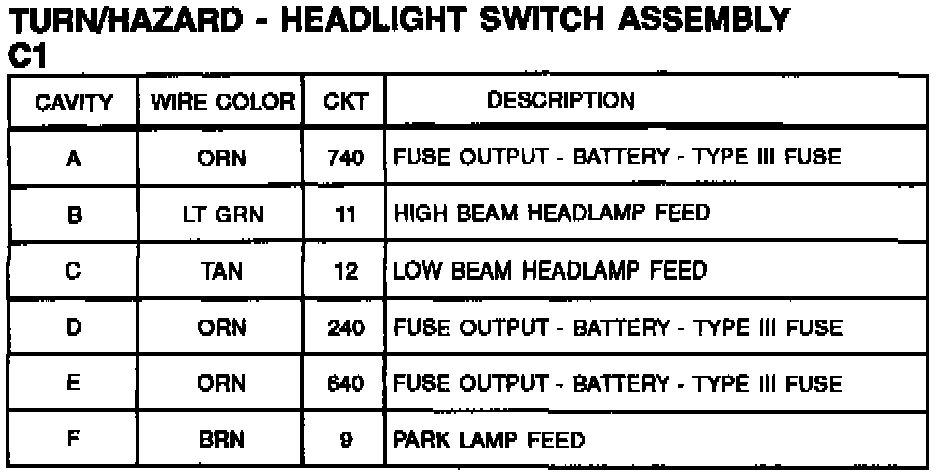

Turn/Hazard - Headlight Switch Assembly: C1:
Turn/Hazard - Headlight Switch Assembly: C2:
