Operation CHARM
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
1995
>>
Trans Sport V6-191 3.1L VIN D TBI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>

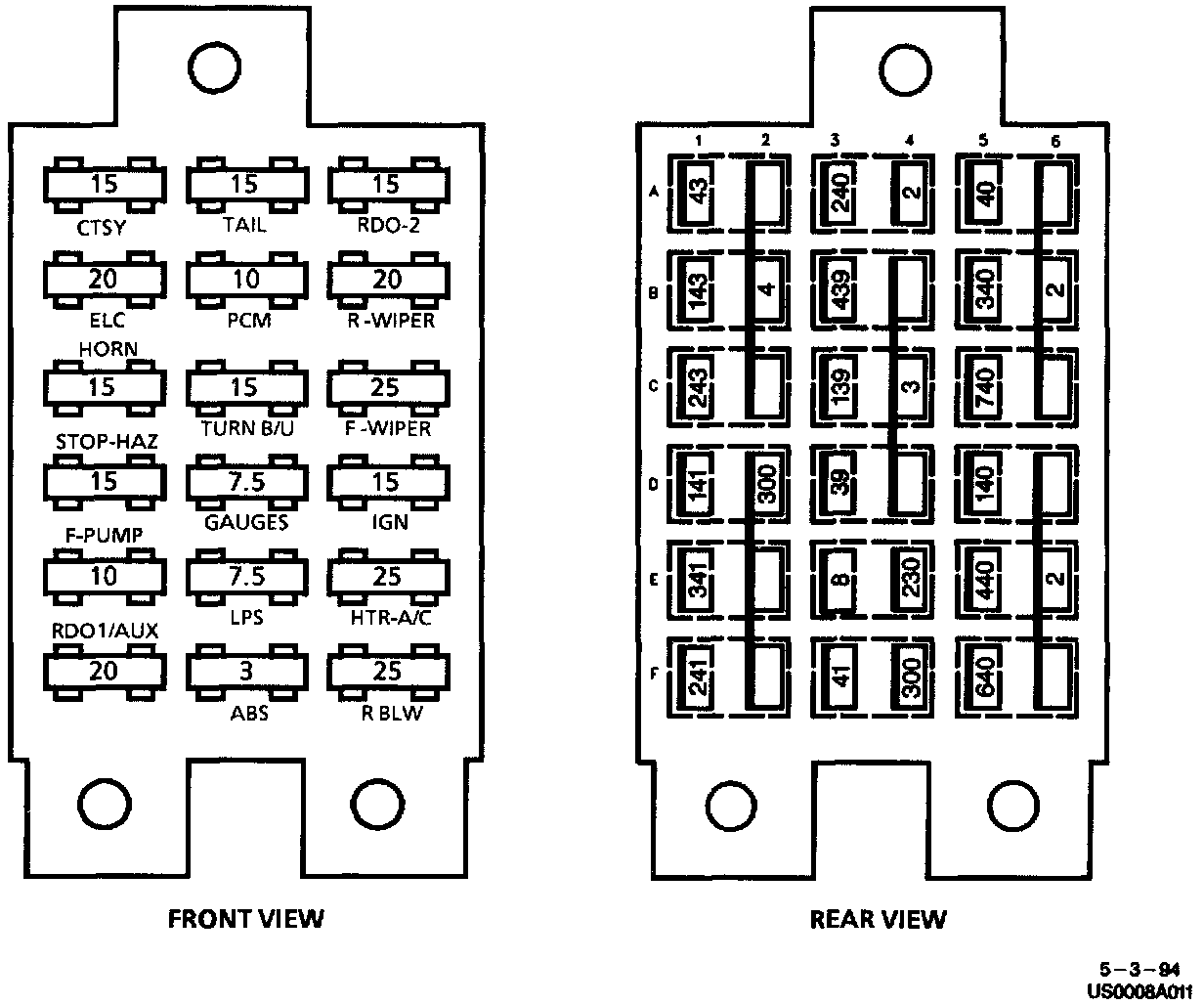

I/P Fuse Block
I/P Fuse Block

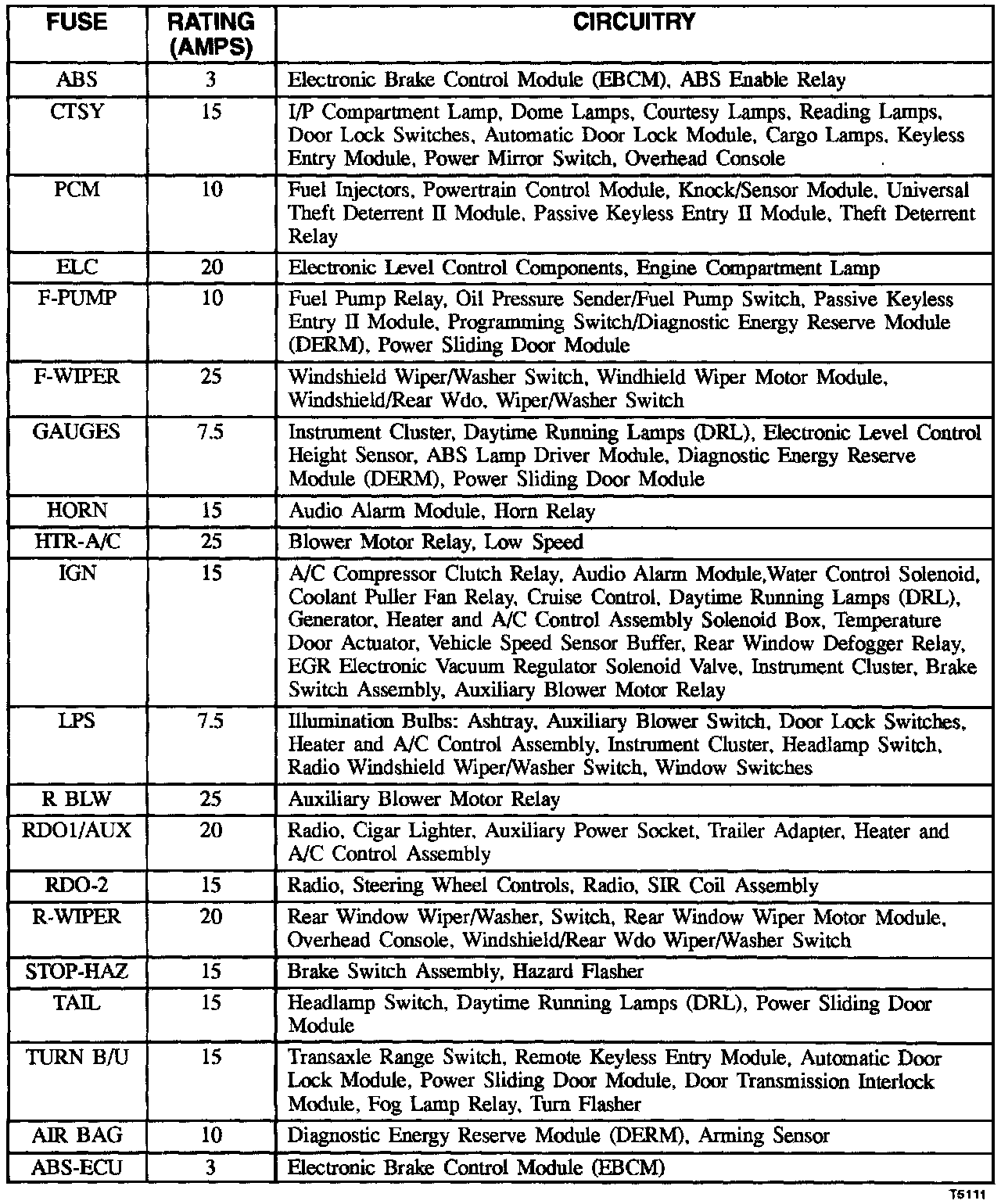

Fuse Block Details:

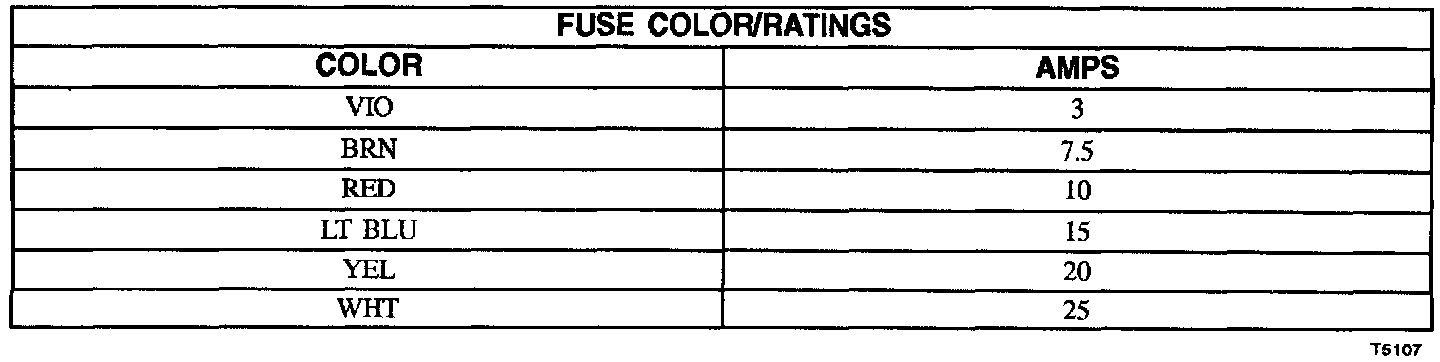

Fuse Color/Ratings (Part 1 Of 2):
Fuse Color/Ratings (Part 2 Of 2):
